6-13
TMS800E SERVICE MANUAL SWING SYSTEM
Published 01-29-2014, Control # 496-00
Removal
1. Remove the counterweight. Refer to Hoist and
Counterweight, page 5-1.
2. Fully extend and set the outriggers enough to take up
the slack in the pads.
NOTE: Do not raise the machine on the outriggers.
3. Ensure the boom is in the travel position and the
turntable lock pin is engaged.
4. Elevate the boom slightly and shut down the engine.
5. Tag and disconnect the battery cables from the
batteries.
6. Remove the boom and lift cylinder following the
procedures outlined in Boom, page 4-1.
7. Tag and disconnect all water and oil lines from the
bottom of the swivel. Cap or plug all lines and openings.
8. Locate the connectors and ground wire that joins the
swivel wiring harness to the receptacles and ground
stud on the carrier.
9. Disconnect the swivel wiring harness connectors from
the carrier wiring receptacles. Remove the ground wire
from the ground stud.
10. Remove the clamp securing the swivel wiring harness to
the retainer plate on the bottom of the hydraulic swivel
assembly.
11. Coil the wiring harness and secure it to the swivel to
prevent damage to the harness during turntable
removal.
12. Remove bolts that engage the bottom swivel plate to the
carrier lugs.
NOTE: The swivel assembly will be removed with the
turntable.
Orders for special tools
Manitowoc Crane Care
1565 Buchanan Trail East
Shady Grove, PA 17256
Phone: (717) 597-8121
Fax: (717) 593-5929
1
2
3
4
5
6
7
Description
1. M24 Socket 3/4” Drive
2. 4 to 1 Torque Multiplier (1/2” Input 3/4” Output)
3. Backlash Adapter
4. 1/2” Drive Torque Wrench
5. 10” Extension 3/4” Drive
6. 13” Extension 3/4” Drive
7. Tool Box (Optional)
Grove Part Number
9-999-101798
9-999-100134
9-999-100141
9-999-100136
9-999-100138
9-999-100137
9-999-100146
shall be referred to:
Quantity Required
1
1
1
1
A/R
A/R
1

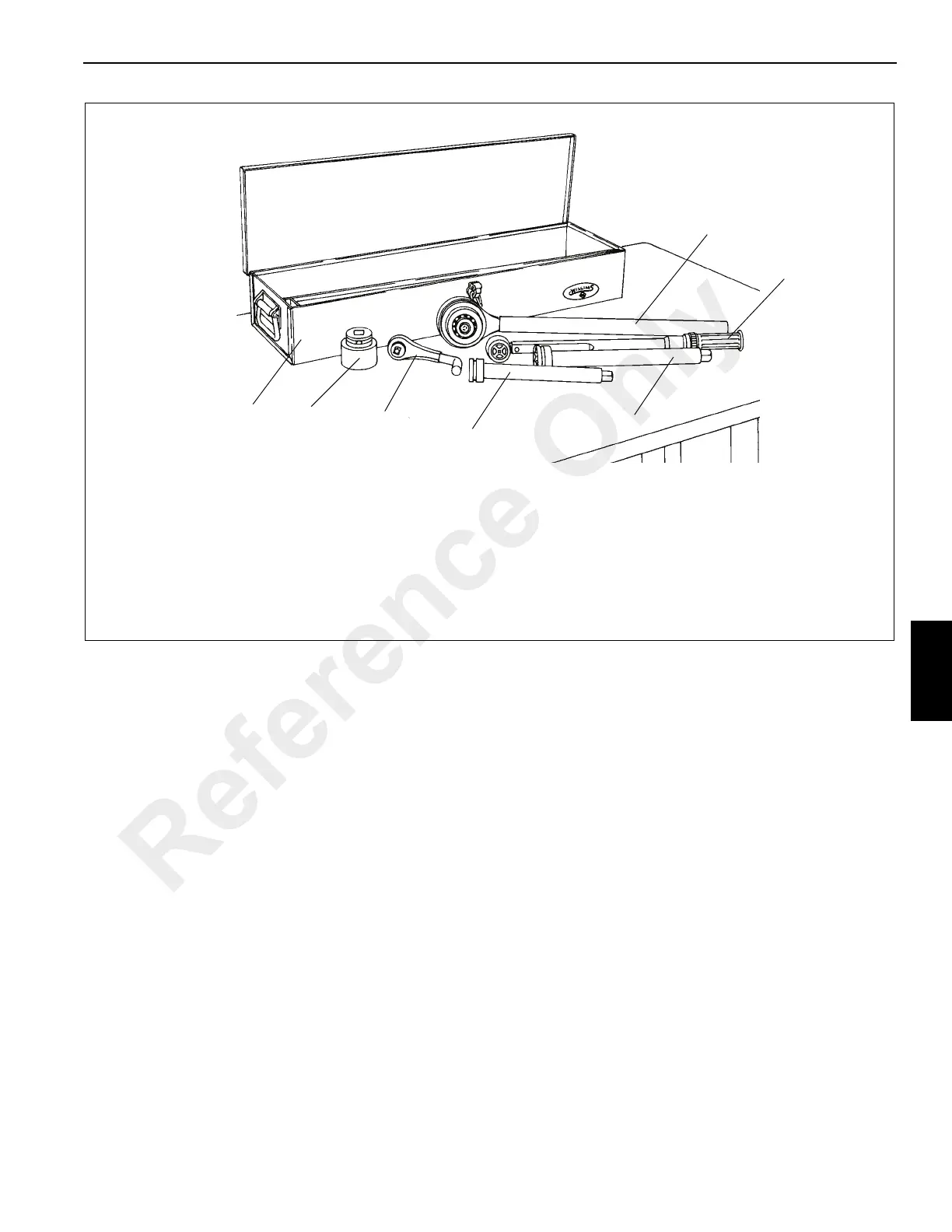

FIGURE 6-4
6633
Reference Only
To Next Page
