TMS800E SERVICE MANUAL POWER TRAIN

GROVE

Published 01-29-2014, Control # 496-00

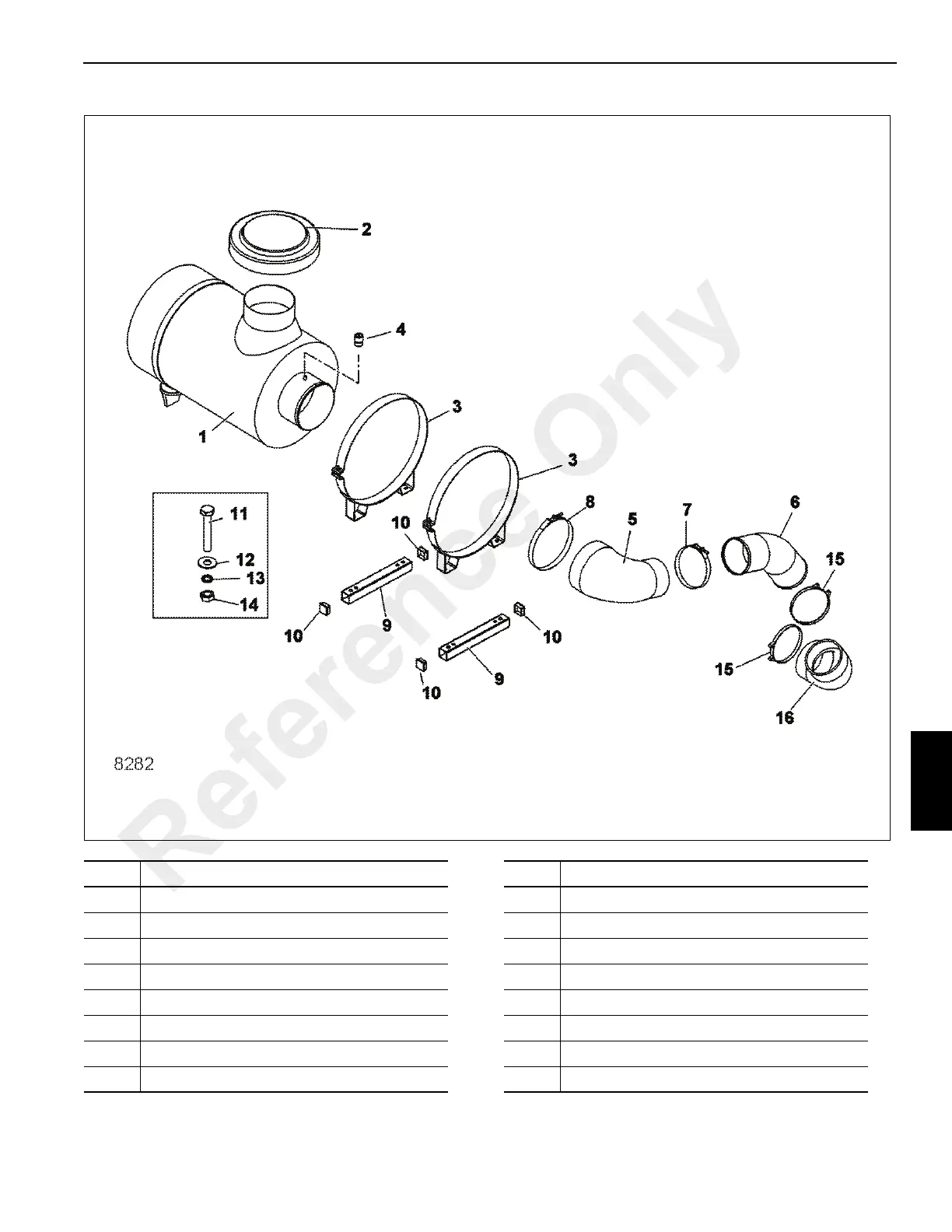

FIGURE 7-10

Item Description

1 Air Cleaner (See Figure 7-11)

2 Air Inlet Hood

3 Mounting Band

4 Service Indicator

5 Reducing Elbow

6 Intake Tube

7 Clamp

8 T-bolt Clamp

Item Description

9 Tube

10 End Cap Plug

11 Capscrew

12 Washer

13 Lock Washer

14 Hex Nut

15 Clamp

16 Adapter

Reference Only
