Manitowoc Grove TMS800E User Manual

8-40
Published 01-29-2014, Control # 496-00
UNDERCARRIAGE TMS800E SERVICE MANUAL
2
4
7
3
1
6
8
10
11 9
20
19
21
14
22
23
15
13
12
16
18
17

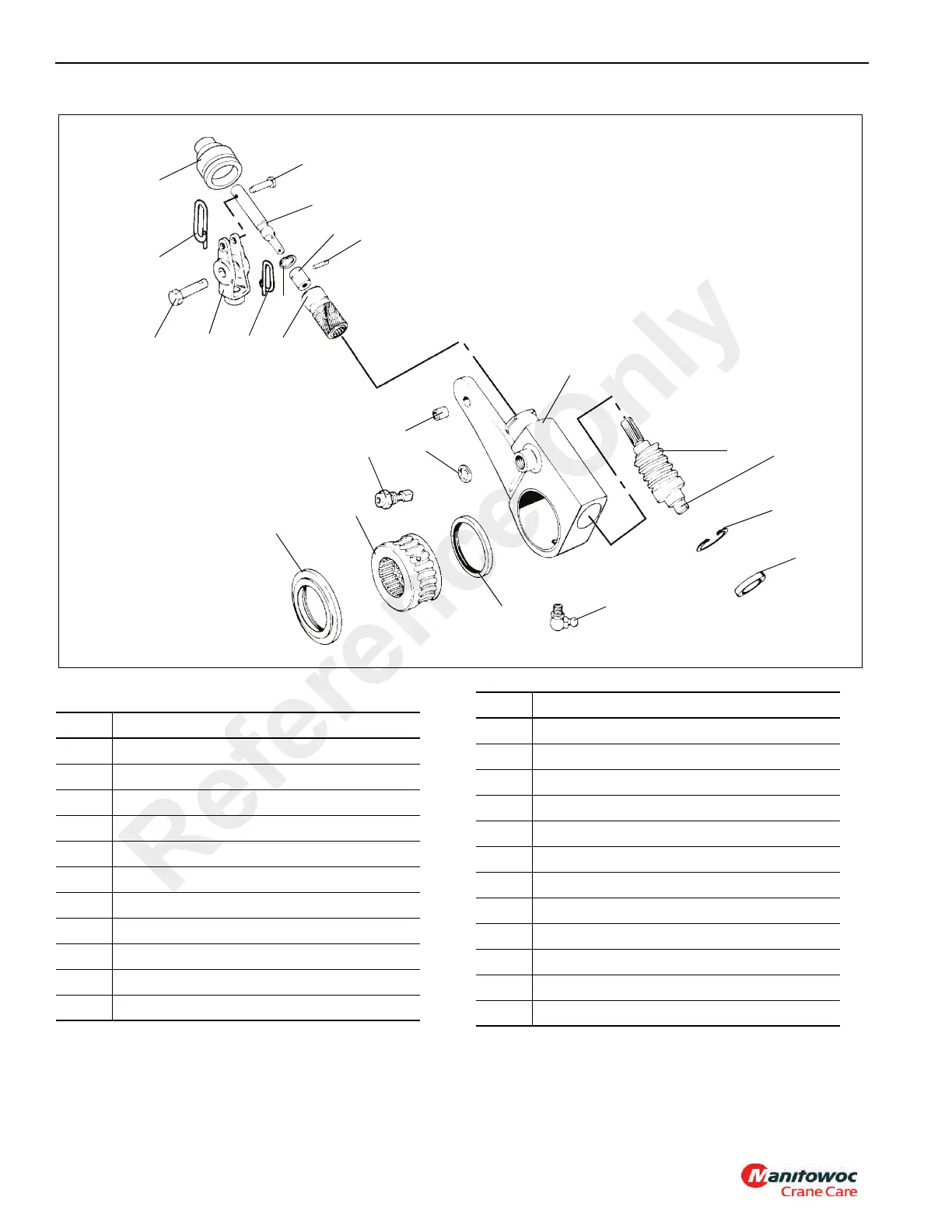

FIGURE 8-51
6600
5
Item Description
1 Retainer Clip
2 Boot
3 Clevis Pin
4 Actuator Rod
5 Retaining Ring
6Roller Pin
7 Actuator Piston
8 Adjusting Sleeve
9 Retainer Clip
10 Clevis
11 Clevis Pin
12 Housing
13 Bushing
14 Gasket
15 Pull Pawl Assembly
16 Worm Gear
17 Manual Adjusting Nut
18 Retaining Ring
19 Worm Grease Seal
20 Grease Fitting
21 Face Seal
22 Gear
23 Retainer/Seal
Item Description
Reference Only
