HYDRAULIC SYSTEM TMS800E SERVICE MANUAL
2-42
Published 01-29-2014, Control # 496-00

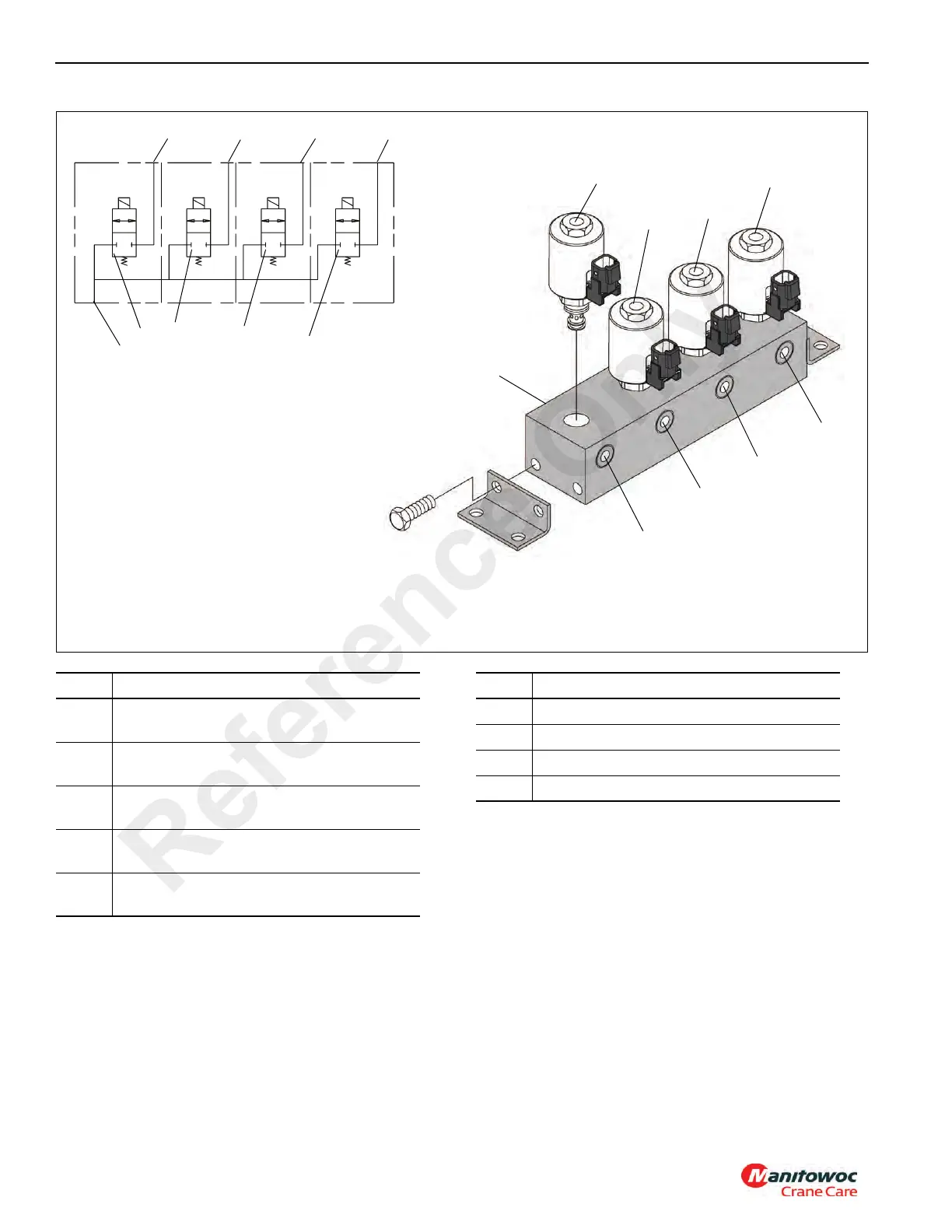

FIGURE 2-27
6544-2
6544-1
2
7
2
3
3
4
5
1
4
6
5
7
8
9
6
8
9
1
Item Description
1
Solenoid Valve (Right Rear Extension
Cylinder)
2
Solenoid Valve (Right Rear Stabilizer
Cylinder)
3
Solenoid Valve (Left Rear Stabilizer
Cylinder)
4
Solenoid Valve (Left Rear Extension
Cylinder)
5
Inlet Port (From Port B of Outrigger Selector
Valve)
Item Description
6 Outlet Port (Right Rear Extension Cylinder)
7 Outlet Port (Right Rear Stabilizer Cylinder)
8 Outlet Port (Left Rear Stabilizer Cylinder)
9 Outlet Port (Left Rear Extension Cylinder)
