Manitowoc Grove TMS800E User Manual

2-49
TMS800E SERVICE MANUAL HYDRAULIC SYSTEM
2
GROVE
Published 01-29-2014, Control # 496-00

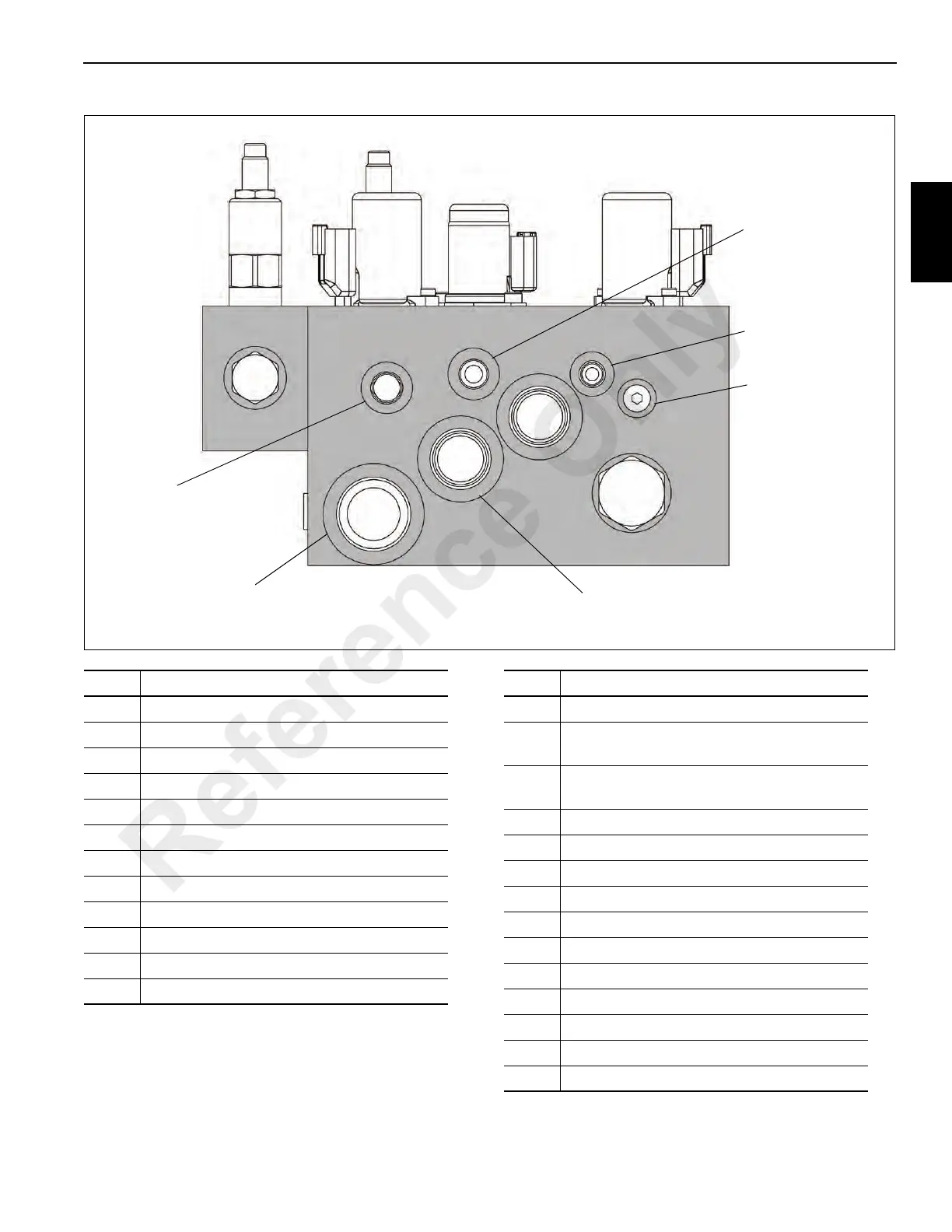

Bottom View
21
FIGURE 2-33 continued
6609-6
20
22
23
24
26
SBS
SBR
IN
GP3
D5
TANK
GPA
Item Description
1Pilot Supply Relief Valve (450 psi)
2 Gauge Port (QP4A)
3 Swing Brake Relief Valve (250 psi)
4 Solenoid Valve (Swing Brake)
5 Solenoid Valve (Swing Brake Release)
6 Solenoid Valve (Pilot Supply)
7 Gauge Port (GP1)
8 Pilot Supply Port (PS)
9 Plugged (D2)
10 Port 1B (Swing Left)
11 Port 1A (Swing Right)
12 Swing Directional Valve
Item Description
13 Drain Port D4 (Swing Motor Pilot Supply)
14
Drain Port D6 (Hoist/Tele/Lift Valve Pilot
Supply)
15
Drain Port D7 (Swing Brake Lift Cylinder
Pilot)
16 Drain Port D3 (Plugged)
17 Gauge Port (GP2)
18 Gauge Port (QP4B) (Not Shown)
19 Drain Port D1
20 Gauge Port (GP3)
21 Swing Brake Release Port (SBR)
22 Drain Port D5
23 Swing Brake Supply Port (SBS)
24 Tank Port
25 Gauge Port (GPB)
26 Gauge Port (GPA)
Reference Only
