HYDRAULIC SYSTEM TMS800E SERVICE MANUAL
2-58
Published 01-29-2014, Control # 496-00
6541
15
11
1
4, 5
17
2
7
13
21
20
19
7
3

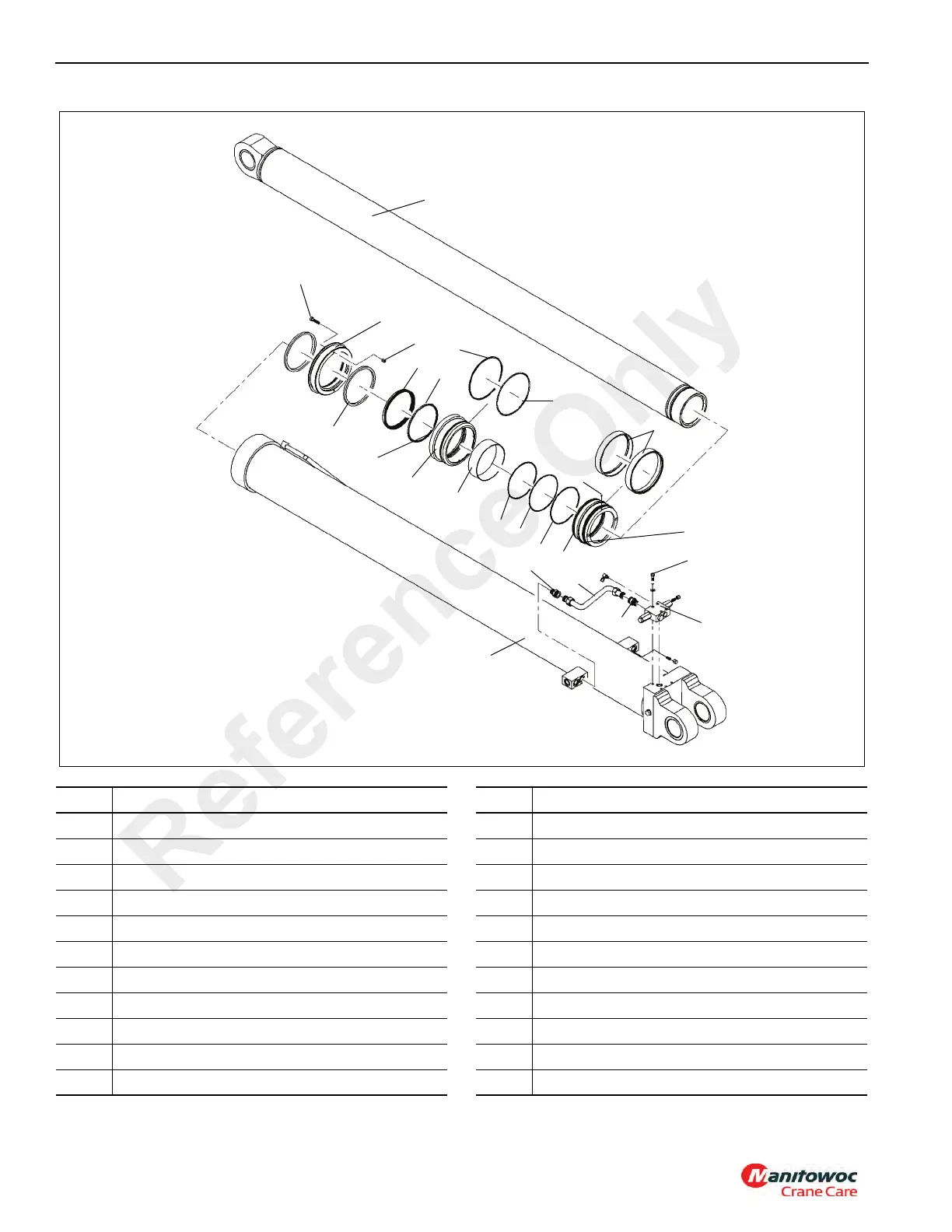

FIGURE 2-38
22
16
18
12
12
10
6
14
22
8
Item Description
1Rod
2 Barrel
3 Holding Valve
4Screw
5 Washer
6 Tube
7 Adapter
8 Setscrew (Not Shown)
9 Seal Assembly
10 Piston
11 O-ring
Item Description
12 Backup Ring
13 Backup Ring
14 Head
15 O-ring
16 Backup Ring
17 Buffer Seal
18 Rod Seal
19 Backup Ring
20 Capscrew
21 Retaining Ring
22 Insert
Reference Only
