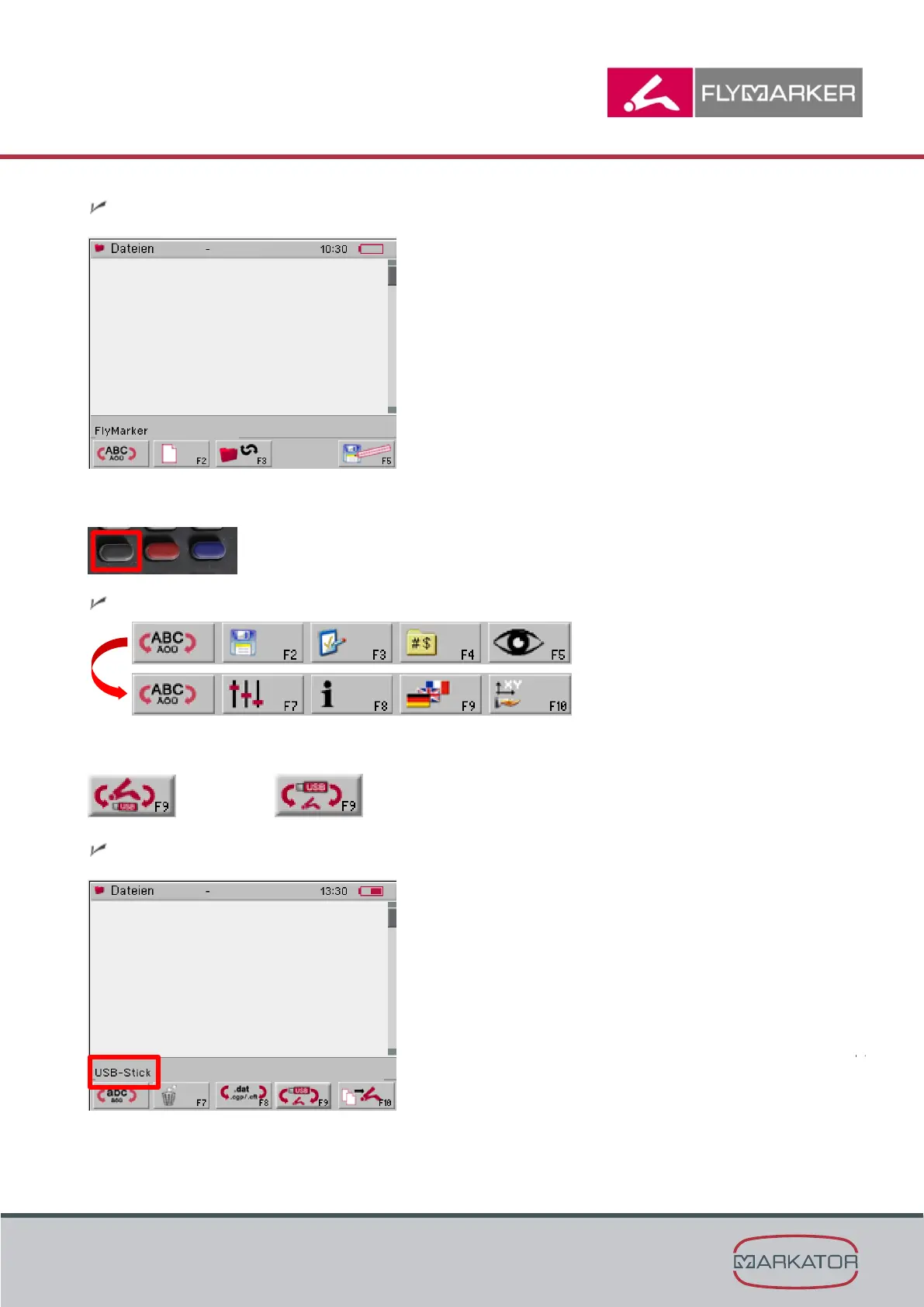

The File window appears.

3. Press the Shift key.

The level of the function key changes..

4. Press F9.

switches to:

The file storage of the USB-stick will be displayed.
