marposs TESTAR E4N - CONNECTION TO THE MAINS COMPRESSED AIR SUPPLY; CONNECTING TRANSDUCERS

10
2.4
2.5
2

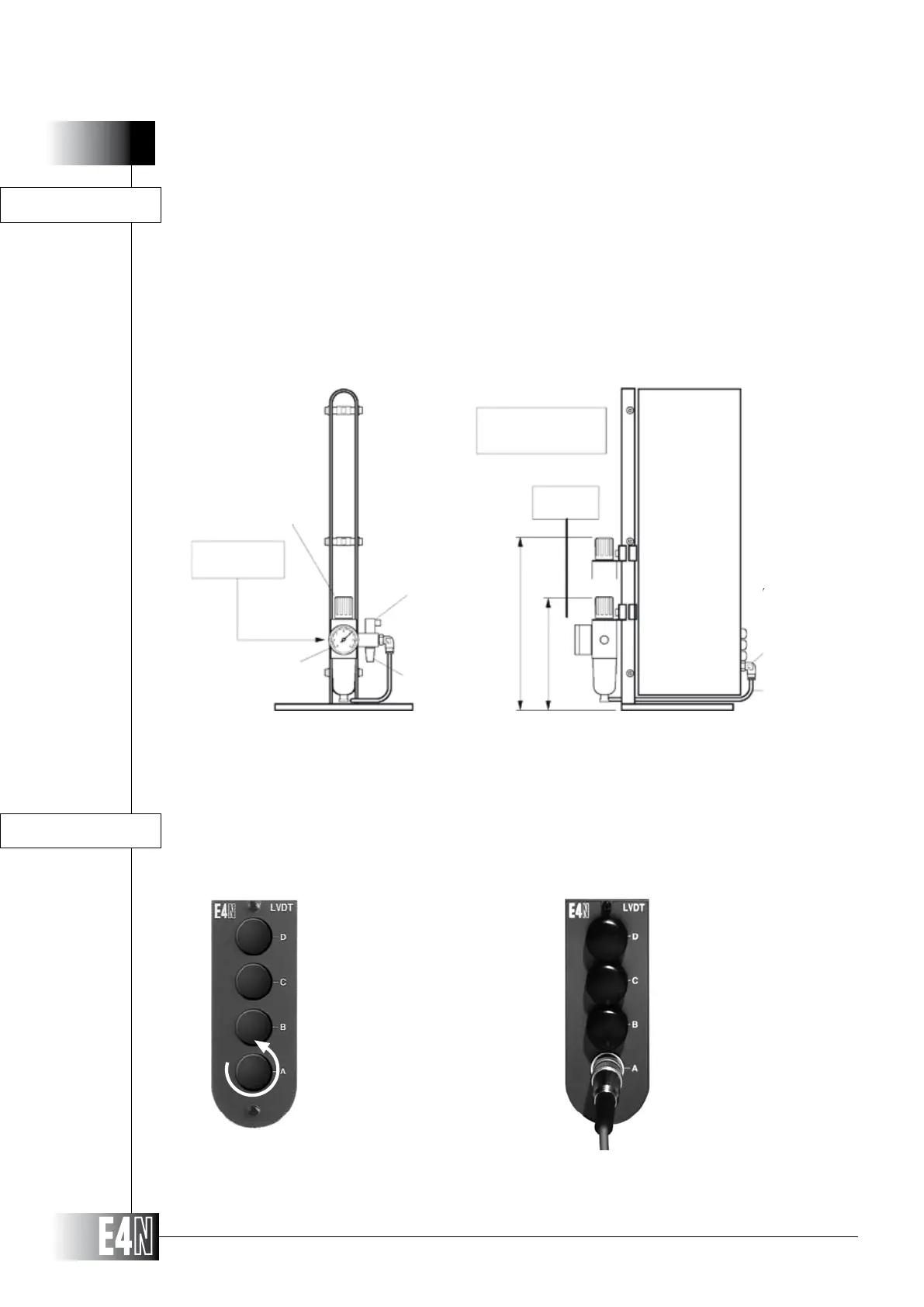

E4N columns fitted with air/electronic modules must be connected to a mains compressed air


a FILTER-REGULATOR UNIT 

L max mm
L min = 200 mm
MAINS
QUICK-RELEASE
CONNECTOR
AIR HOSE
L max
LMIN
-
SURE REGULA-
TOR
MANOMETER
SILENCER
MAINS
SUPPLY AIR

Unscrew the protective
cap from the connector.
Plug in the gauge con-
nector and tighten the ring
nut.
Step 1
CONNECTION TO THE MAINS COMPRESSED AIR SUPPLY
CONNECTING TRANSDUCERS
INSTALLATION AND USE
Step 2
