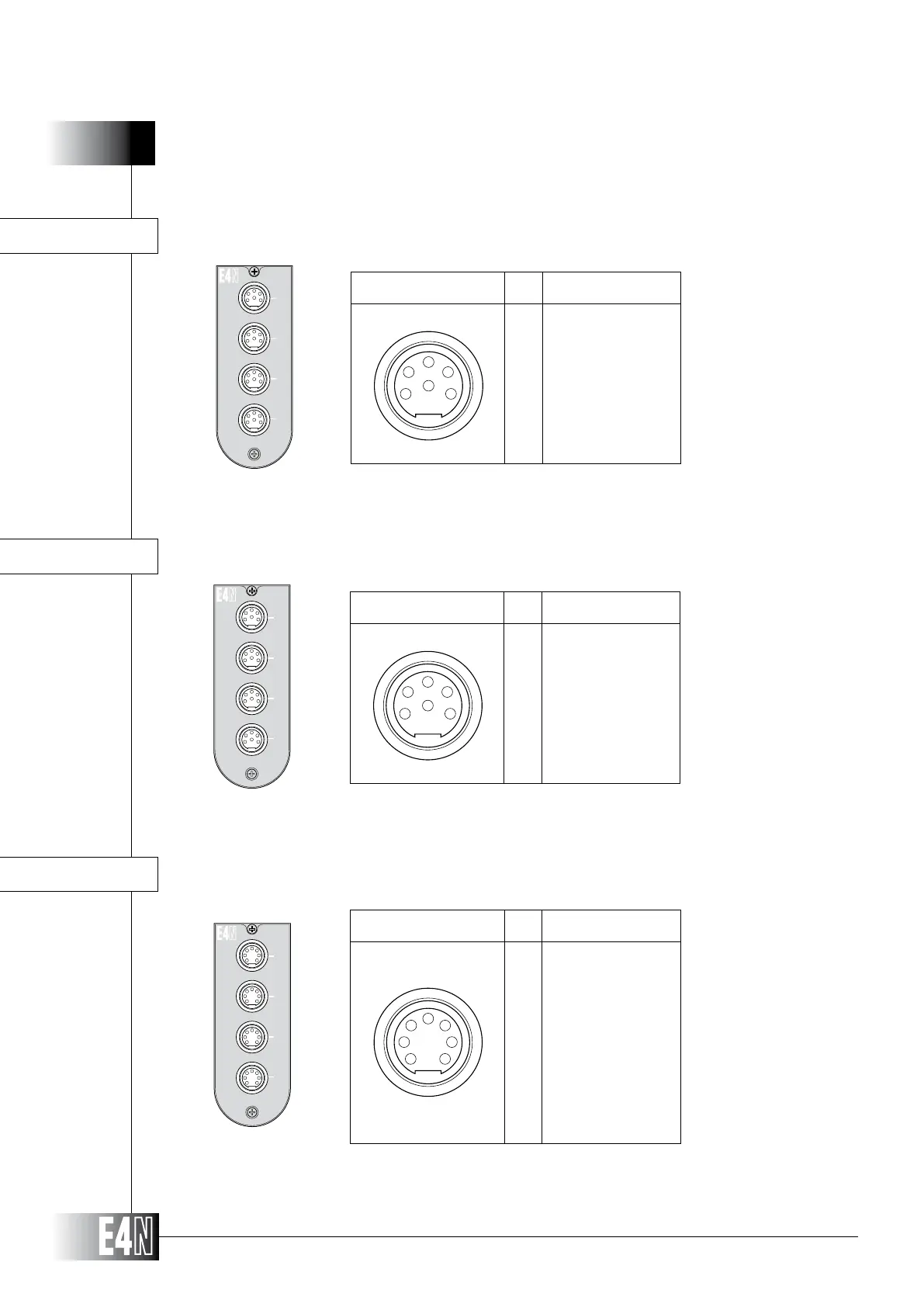

The E4N column can be fitted with four types of of signal amplifer module.
AMPLIFIER MODULE FOR LVDT SENSORS
Versions available:
1-CHANNEL LVDT
2-CHANNEL LVDT
4-CHANNEL LVDT

Unscrew the protective cap from the connector socket, carefully push the plug into the socket and then
tighten.
OSCILLATOR
GROUND (OSCILLATOR)
NOT CONNECTED
GROUND (SIGNAL)
SIGNAL INPUT
NOT CONNECTED
SIGNALPIN
CONNECTOR
AMPLIFIER MODULE FOR HBT SENSORS
Versions available:
1-CHANNEL HBT
2-CHANNEL HBT
4-CHANNEL HBT

Unscrew the protective cap from the connector socket, carefully push the plug into the socket and then
tighten.
OSCILLATOR
GROUND
SIGNAL INPUT
NOT CONNECTED
OSCILLATOR
NOT CONNECTED
SIGNALPIN
CONNECTOR
AMPLIFIER MODULE FOR MRT SENSORS
Versions available:
1-CHANNEL MRT
2-CHANNEL MRT
4-CHANNEL MRT

Unscrew the protective cap from the connector socket, carefully push the plug into the socket and then
tighten.
SIGNAL INPUT
NOT CONNECTED
GROUND
+VRP JUMPER POWER
SUPPLY
NOT CONNECTED
+VP POWER SUPPLY
-VP POWER SUPPLY
SIGNALPIN
CONNECTOR
