marposs TESTAR E4N - MEASURING AN INNER DIAMETER AND AN OUTER DIAMETER WITH TWO SENSORS

55
4
4.3
EQUIPMENT REQUIRED:

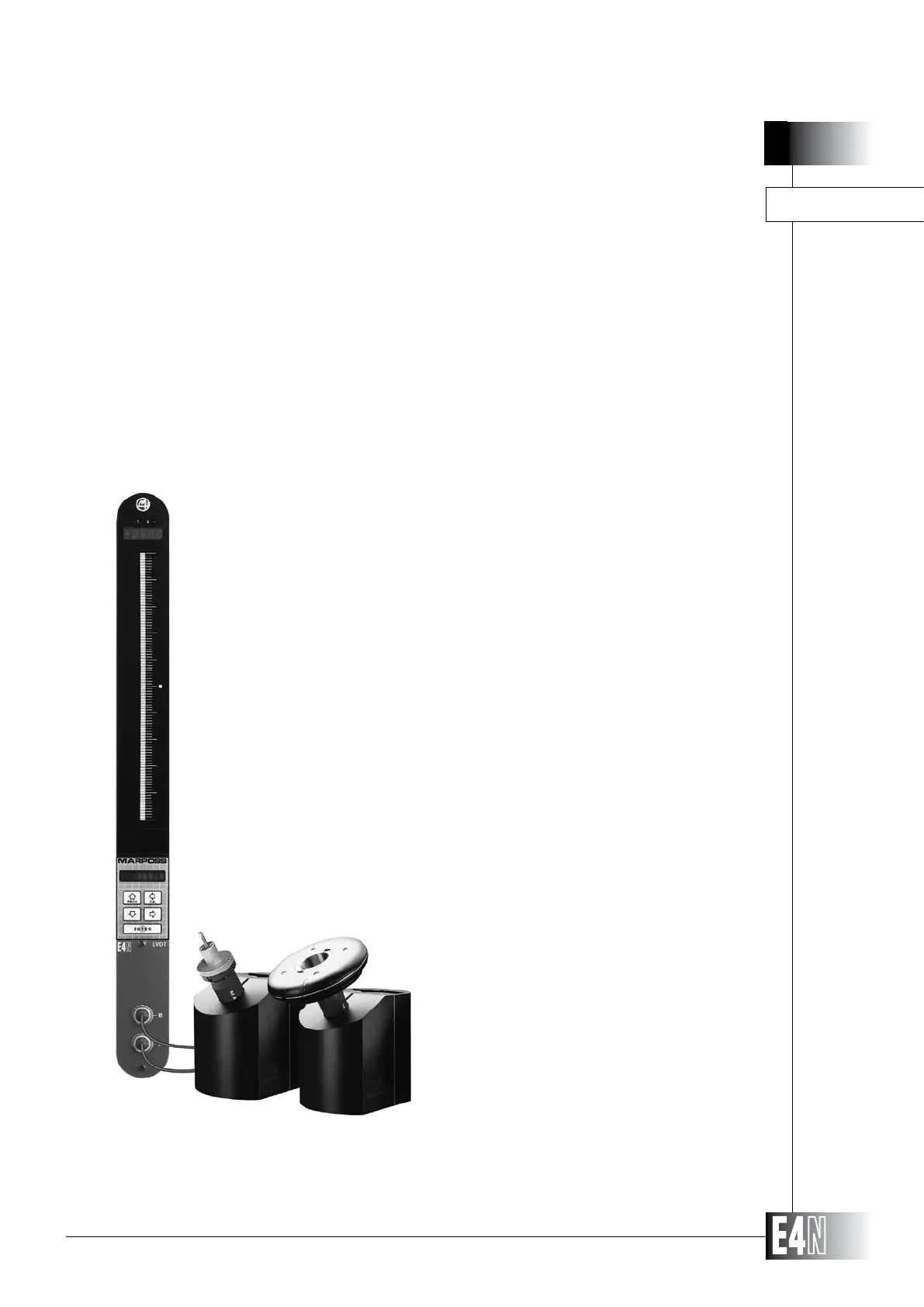

1 - E4N COLUMN
1 - MARPOSS M4 MANUAL RING GAUGE
1 - MARPOSS M1 PLUG GAUGE
This example also includes programming of the PASSWORD.
On the programming data sheet, the parameters for which a
value must be programmed are shown in bold type.
The programming data sheet also shows the default values.
Variable data not shown are not part of this measurement example and can
be ignored.
Note:Measurement 1 set the NOMINAL VALUE by setting the variable ABSO-
LUT= 040.000.
Set the SCALE= variable to "auto".
Set the ABSOLUT= variable first and then set the SCALE= variable with the
table data required.
DATA:
SECOND PART TO BE MEASURED = PIN
PIN OUTER DIAMETER NOMINAL DIMENSION = 60.000 mm ± 0.020
GAUGE NOMINAL DIMENSION = 60.009 mm
MEASURING AN INNER DIAMETER AND AN OUTER DIAMETER WITH TWO SENSORS
 
  
MASTER GAUGE NOMINAL DIMENSION = 39.997 mm
PROGRAMMING EXAMPLES FOR THE E4N COLUMN
