Chapter 3 Engine Section 2 Engine Disassemble and Re-assemble
3—5
Use wheeljacks or wooden blocks to support the
motorcycle.
Remove the mounting bolts and nuts under lower
bracket of the engine.As in Fig.3.2.16
Remove the nut① of rear fork axle and cushion. As in
Fig.3.2.17..
Remove the bolt/nut of engine rear part.
As in Fig.3.2.18
Remove the upper mounting bolt/nut②of the engine .
As in Fig.3.2.19
Note：
When the upper mounting bolt is removed, the engine
can be supported by a Wheeljack.
Pull out one part of rear fork axle③,so that the engine
can be removed.As in Fig.3.2.20
Note：
Be careful not to pull out the rear rocker shaft.
Lower the engine slowly.

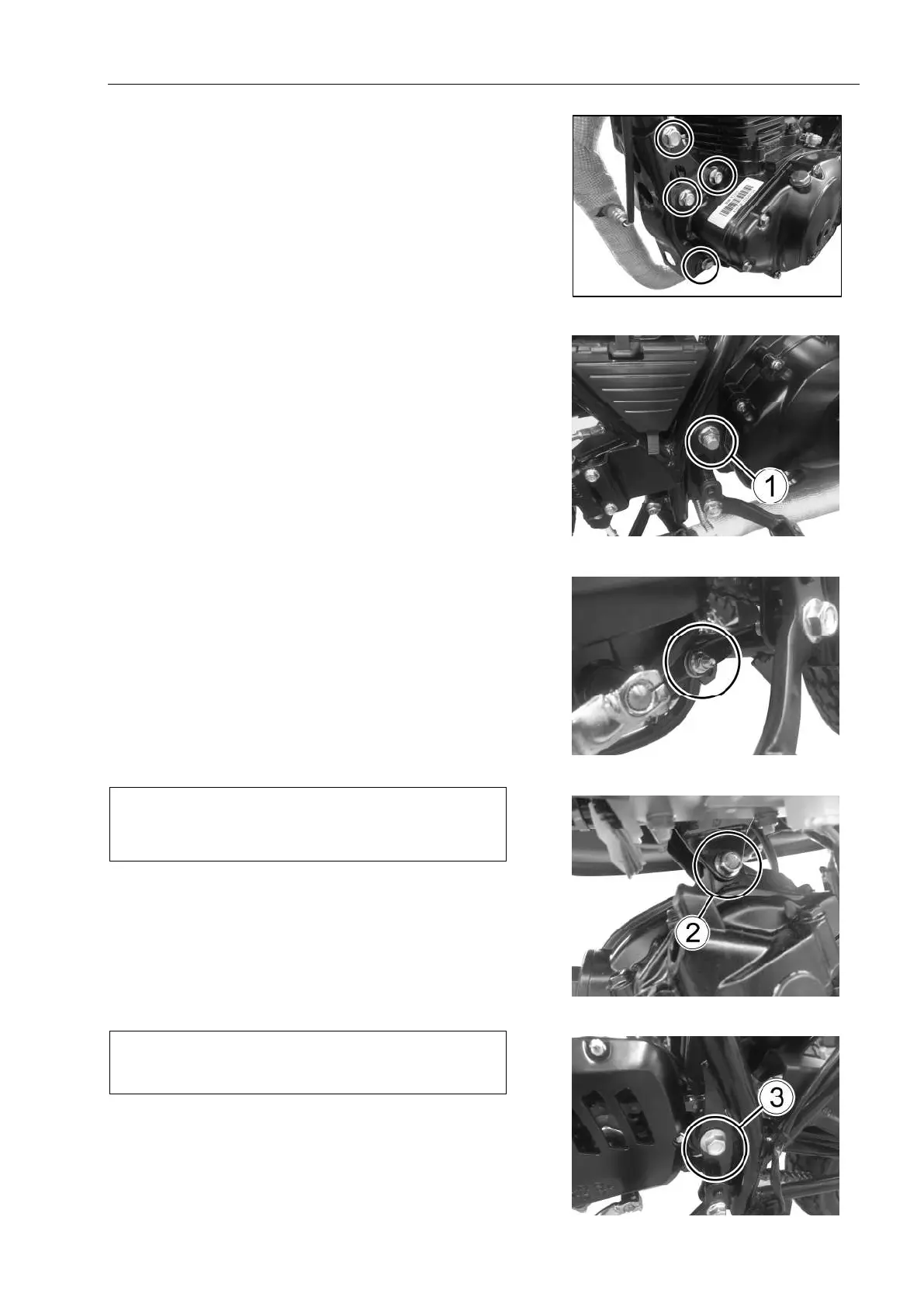

Fig.3.2.16
Fig.3.2.17
Fig.3.2.18
Fig.3.2.19
Fig.3.2.20
