Chapter 3 Engine Section 4 Inspection and maintenance of engine componenets
3—37
The transmission system
Tear open outfit

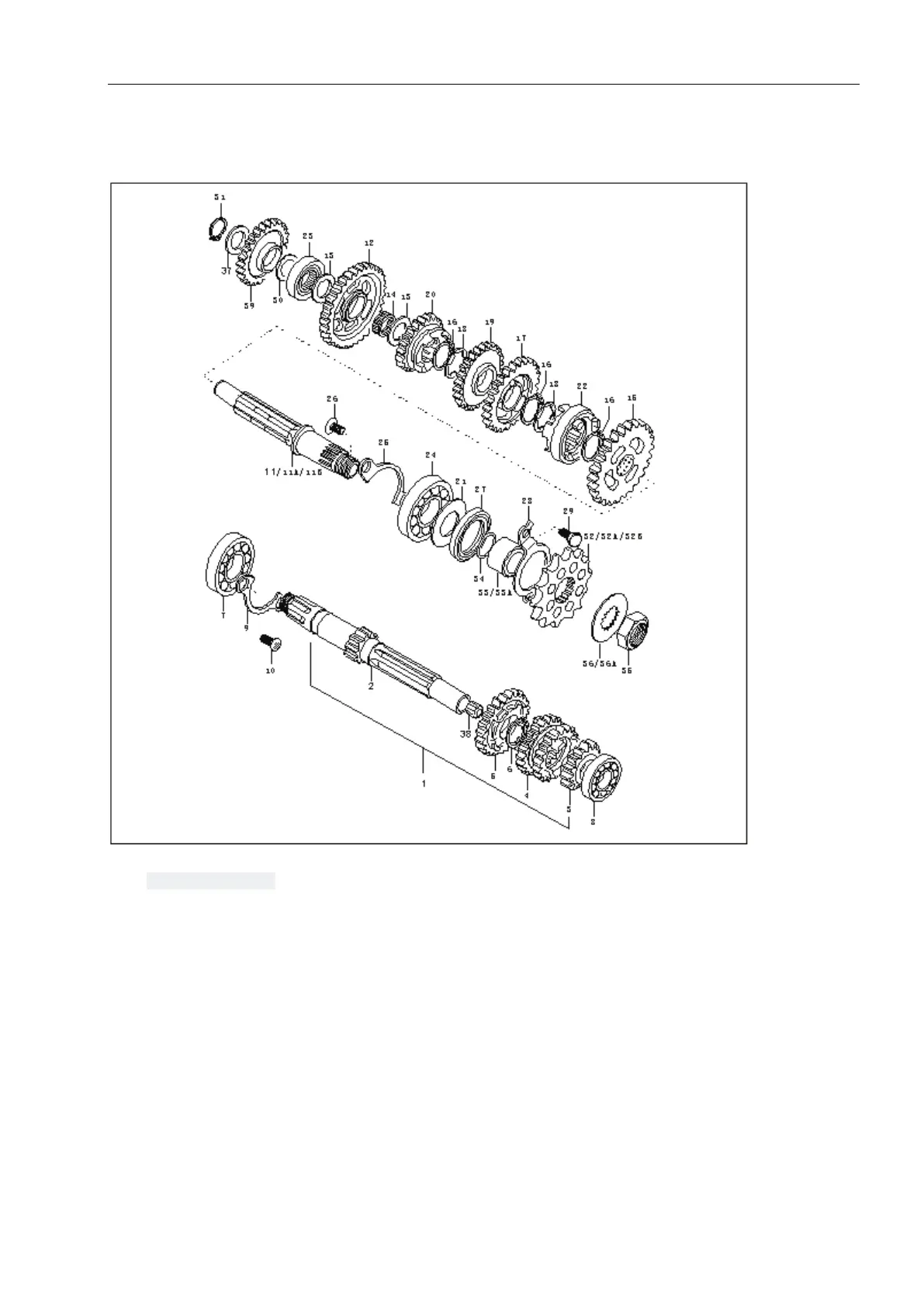

Detachable transmission (variable speed) gears are shown below. Note: If 2 gears are to be removed, gear
remover and appropriate auxiliary devices can be used.
1 Intermediate shaft assy 11B Drive shaft assembly 23
Drive shaft needle
bearing
33 bushing
2
Middle axle NT：11
12
1st driven gear NT：33
24 Left bearing204
33
A
bushing
3 2
nd
driving gear NT:14 13 Gasket 25 Bearing plate 34 O ring
4 3
rd
4
th
driving gearNT:19/21 14
1st driven gear with
bearing
26 BoltM6×12 35
Nut
M16×1.5
5 5
th
driving gear NT:23 15
2nd driven gear NT：26
27 Drive shaft oil seal 36
Sprocket
plate
6 Shaft with retaining ring 16 Shaft with retaining ring 28 Drive shaft oil sealplate
36
A
Sprocket
plate
7 Middle axle right bearing 17
3rd driven gear NT：26
29 BoltM6×10 37 Gasket
8
Middle axle left bearing
60102
18 Gasket 30 Gasket 38 Sleeve
9 bearingplate 19
4th driven gear NT：23
31
Shaft with elastic retainer
15
39 Start the idler
10 BoltM6×12 20
5th driven gear NT：21
32
Sprocket NT：13
11 Drive shaft assembly 21 Bearing retainer 32A
Sprocket NT：15
11A Drive shaft assembly 22
Drive shaft shift dial
wheel
32B
Sprocket NT：15
