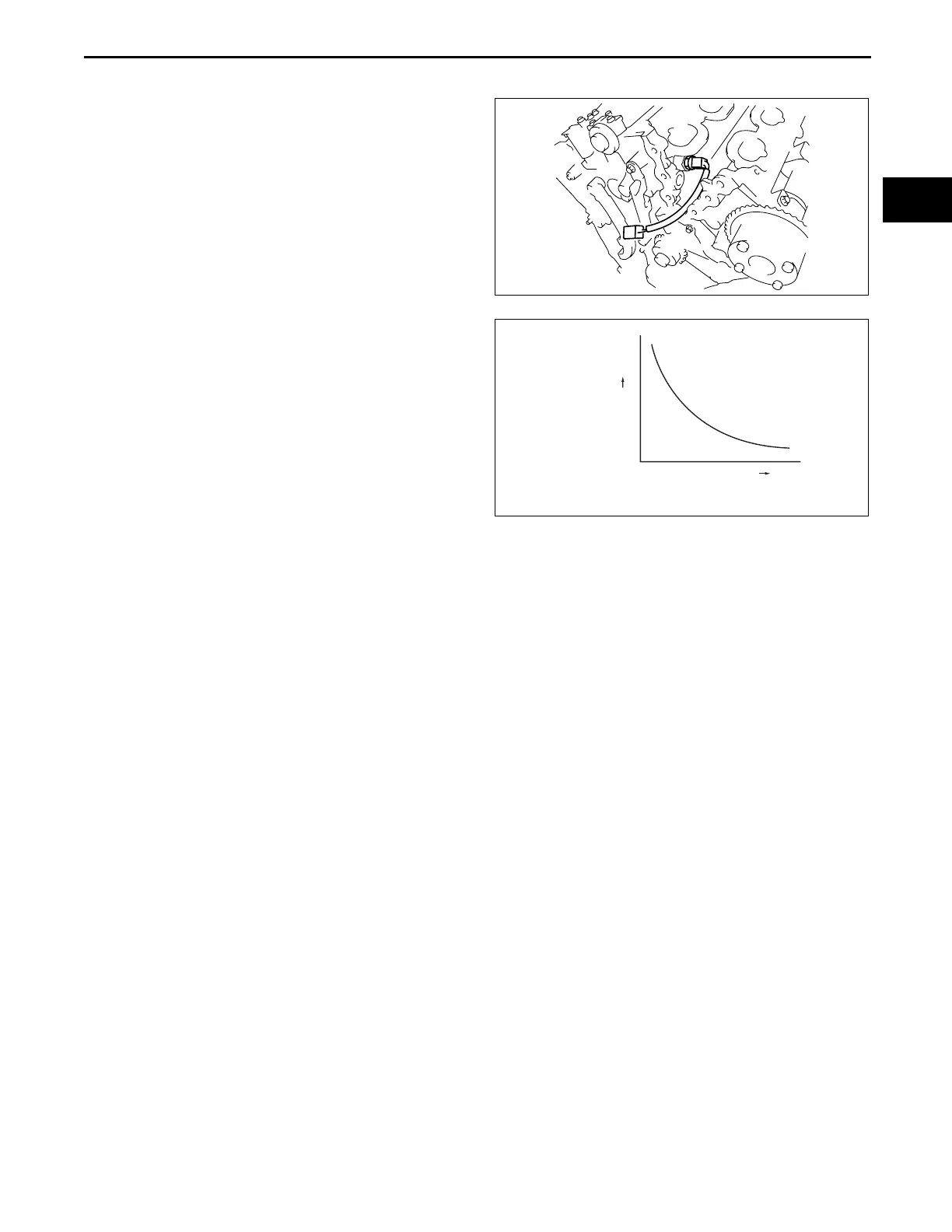

CYLINDER HEAD TEMPERATURE (CHT) SENSOR CONSTRUCTION/OPERATION [MZI-3.5]
id0140c1205600
• The CHT sensor is Installed to the cylinder head.
• The CHT sensor is a thermistor device in which
resistance changes with the temperature.
• The CHT sensor provides engine cylinder head
temperature information, and the signal is used
by the PCM to estimate the engine coolant
temperature.
• The CHT sensor is a thermistor type sensor in
which the resistance changes according to the
cylinder head temperature.
• The resistance decreases if the cylinder head
temperature increases, and conversely increases
if the cylinder head temperature decreases.
End Of Sie
NG: FUEL TANK PRESSURE SENSO R
FUEL TANK PRESSURE SENSOR FUNCTION [MZI-3.5]
id0140c1205700
• The fuel tank pressure sensor detects the fuel tank pressure.
End Of Sie
FUEL TANK PRESSURE SENSOR CONSTRUCTION/OPERATION [MZI-3.5]
id0140c1205800
• The fuel tank pressure sensor is equipped to the evaporative hose between the fuel tank and charcoal canister.
End Of Sie
ac9uun00000148
RESISTANCE
