Mazda CX-9 2007 - At Warning Light Construction;Operation [Aw6 A-El, Aw6 Ax-El]; Selector Indicator Light Function [Aw6 A-El, Aw6 Ax-El]

AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]
05-17–38

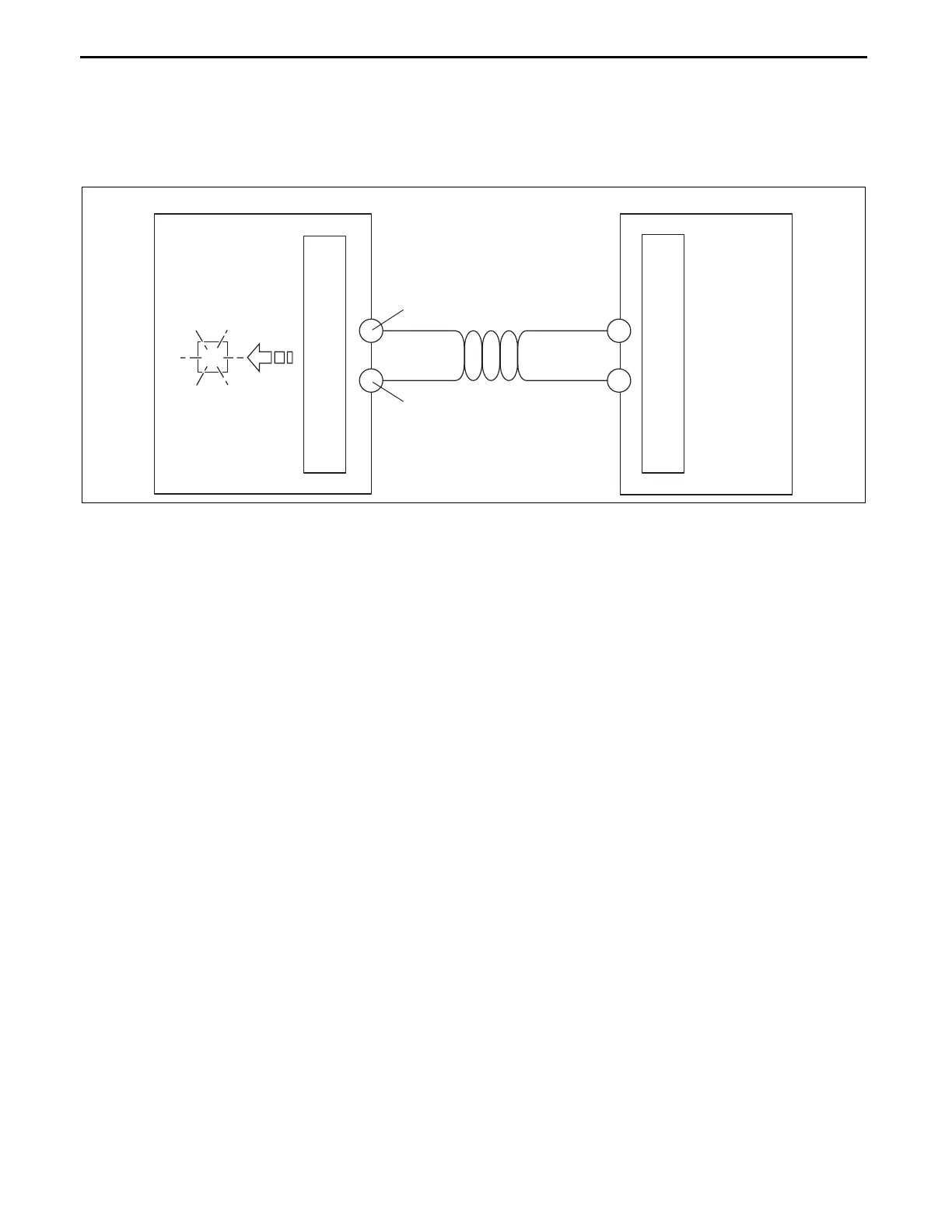

AT WARNING LIGHT CONSTRUCTION/OPERATION [AW6A-EL, AW6AX-EL]
id051723103000
• The AT warning light is built into the instrument cluster.
• The AT warning light illuminates when the instrument cluster receives a warning signal from the TCM via CAN
communication.
• The TCM sends a warning signal to the instrument cluster via CAN communication when it detects a
malfunction.
End Of Sie
SELECTOR INDICATOR LIGHT FUNCTION [AW6A-EL, AW6AX-EL]
id051723103100
• The selector indicator light has a selector lever position light, and a gear position indicator light that indicates
gear position.
• When downshifting is cancelled in the M range, the gear position indicator light flashes two times to alert the
driver that downshifting is cancelled.
End Of Sie
AT
2GR
3GR
4GR
5GR
2GR
3GR
4GR
5GR
CAN
TCM
INSTRUMENT CLUSTER
AT WARNING LIGHT
1GR
1GR
6GR
6GR
1W
1X
A14
A6
ac9uun00000443
