EMISSION SYSTEM [MZI-3.5]
01-16–2
EMISSION SYSTEM OUTLINE [MZI-3.5]
id0116d1100100
Feature
Specification
End Of Sie

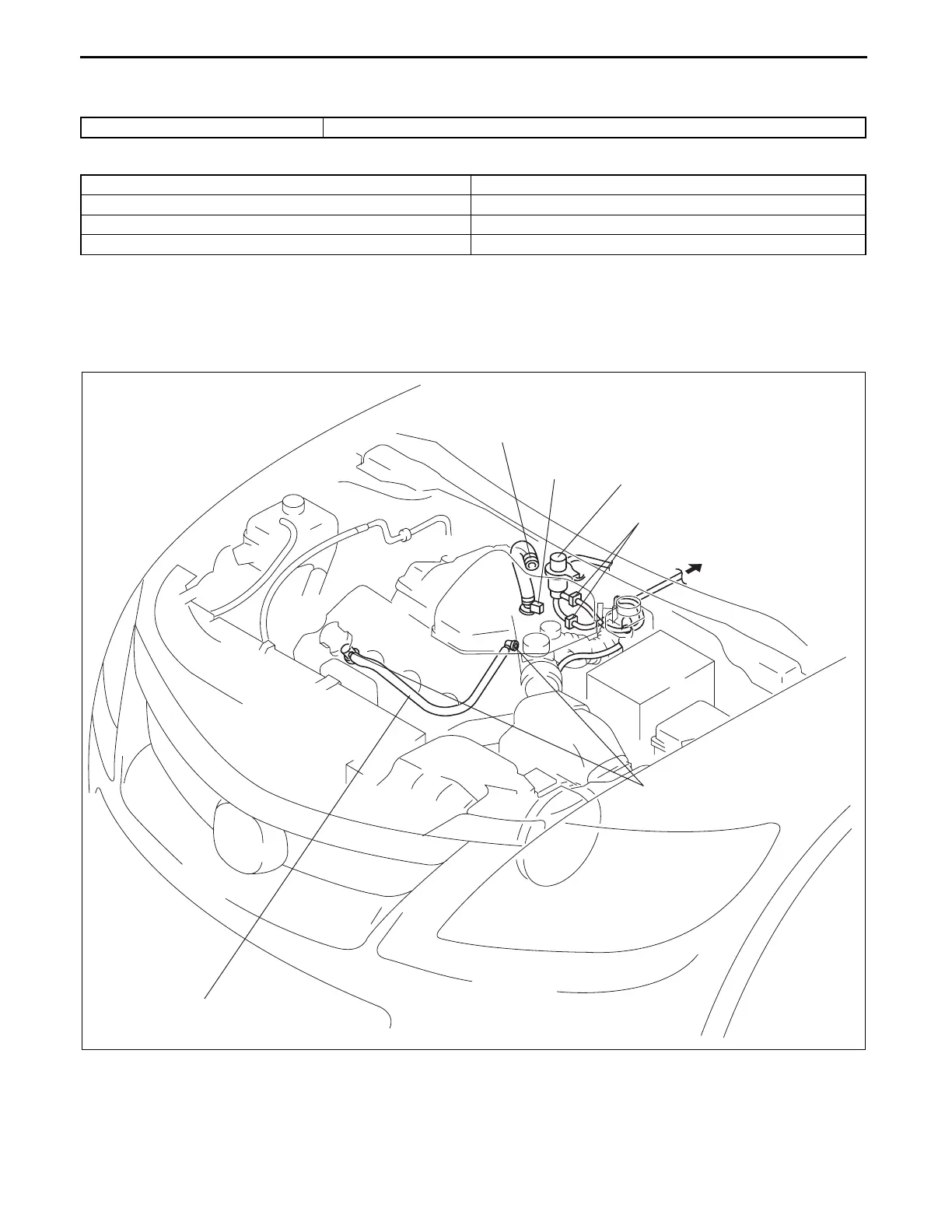

EMISSION SYSTEM STRUCTURAL VIEW [MZI-3.5]
id0116d1100200
Engine Compartment Side
Improved exhaust gas purification • Catalytic converter system adopted
Item Specification
Catalyst form WU-TWC (monolith)
Evaporative emission (EVAP) control system Charcoal canister type
Positive crankcase ventilation (PCV) system Closed type
VENTILATION HOSE
PCV VALVE
TO CHARCOAL CANISTER
PURGE SOLENOID VALVE
PCV VALVE HEATER FITTING
QUICK RELEASE CONNECTOR
QUICK RELEASE CONNECTOR
