AIR BAG SYSTEM
08-10–15
08-10
PASSENGER-SIDE AIR BAG MODULE FUNCTION
id081000101700
Outline
• A dual inflator, divided into inflator No.1 and inflator No.2, has been adopted in accordance with the front air
bag system 2-step deployment control.
End Of Sie
PASSENGER-SIDE AIR BAG MODULE CONSTRUCTION/OPERATION
id081000101800

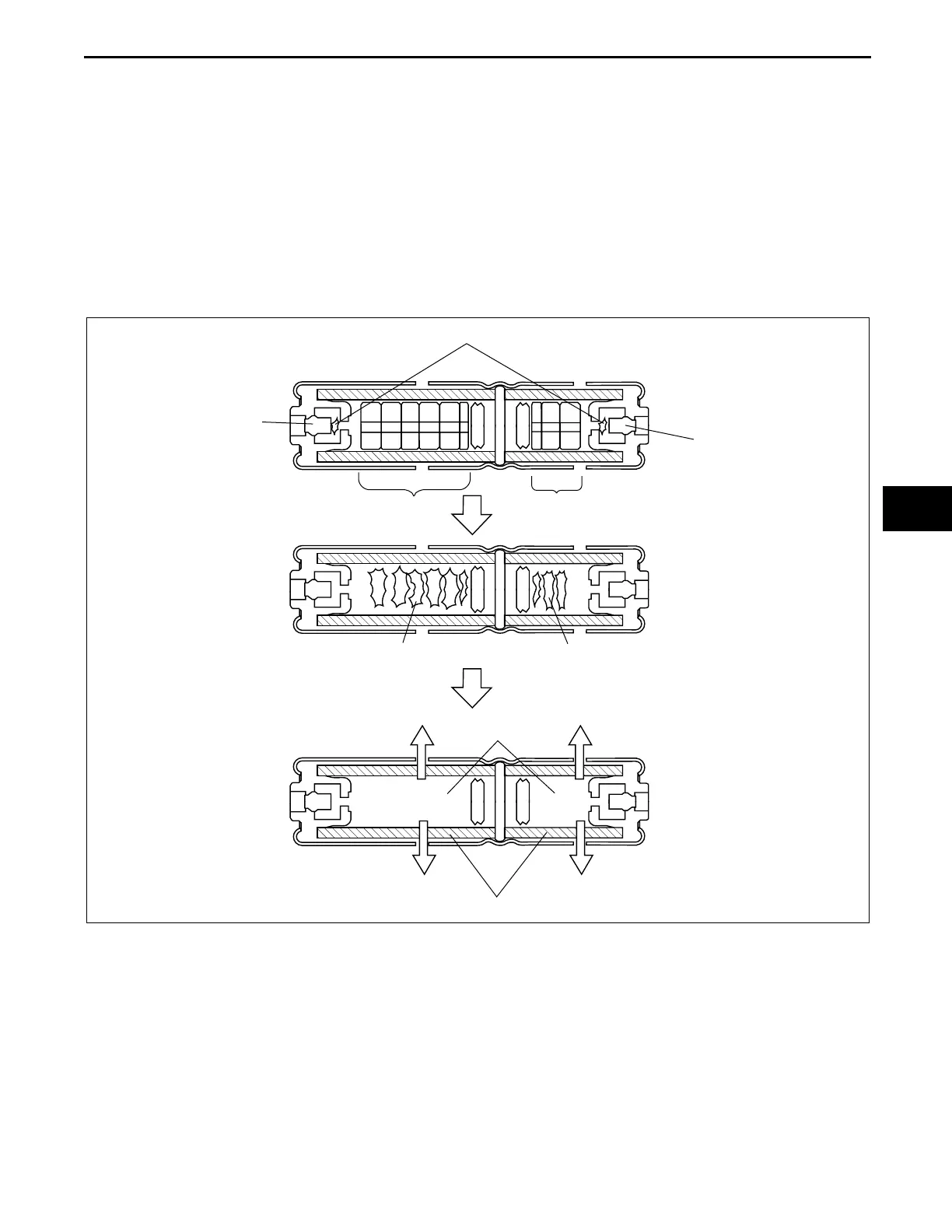

Inflator Operation
1. The igniter built into the inflator begins to build up heat when the operation (deployment) signal is sent from the
SAS control module. The inflation agent is ignited by the build up of heat in the igniter.
2. The ignition of the inflation agent causes the combustion of an agent which releases nitrogen gas.
3. The nitrogen gas is cooled at the filter, and the filtrate is injected into the air bag.
End Of Sie
NG: SIDE AIR BAG MODULE
IGNITION OF INFLATION AGENT
IGNITER
(INFLATOR NO.2)
IGNITER
(INFLATOR NO.1)
GAS GENERATING
AGENT
GAS GENERATING
AGENT COMBUSTION
TO AIR BAG
TO AIR BAG TO AIR BAG
FILTER
TO AIR BAG
NITROGEN
GAS
GAS GENERATING
AGENT COMBUSTION
GAS GENERATING
AGENT
acxuun00000274
