DRIVE BELT CONSTRUCTION [MZI-3.5]
id0110c1102500
Generator and A/C Drive Belt
• A V-ribbed drive belt is employed.
• A drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain optimal
drive belt tension.
Power Steering Oil Pump Drive Belt
• A V-ribbed drive belt is employed.
• For the removal/installation of the power steering oil pump drive belt, rotate the crankshaft using the SST and
remove/install.
End Of Sie

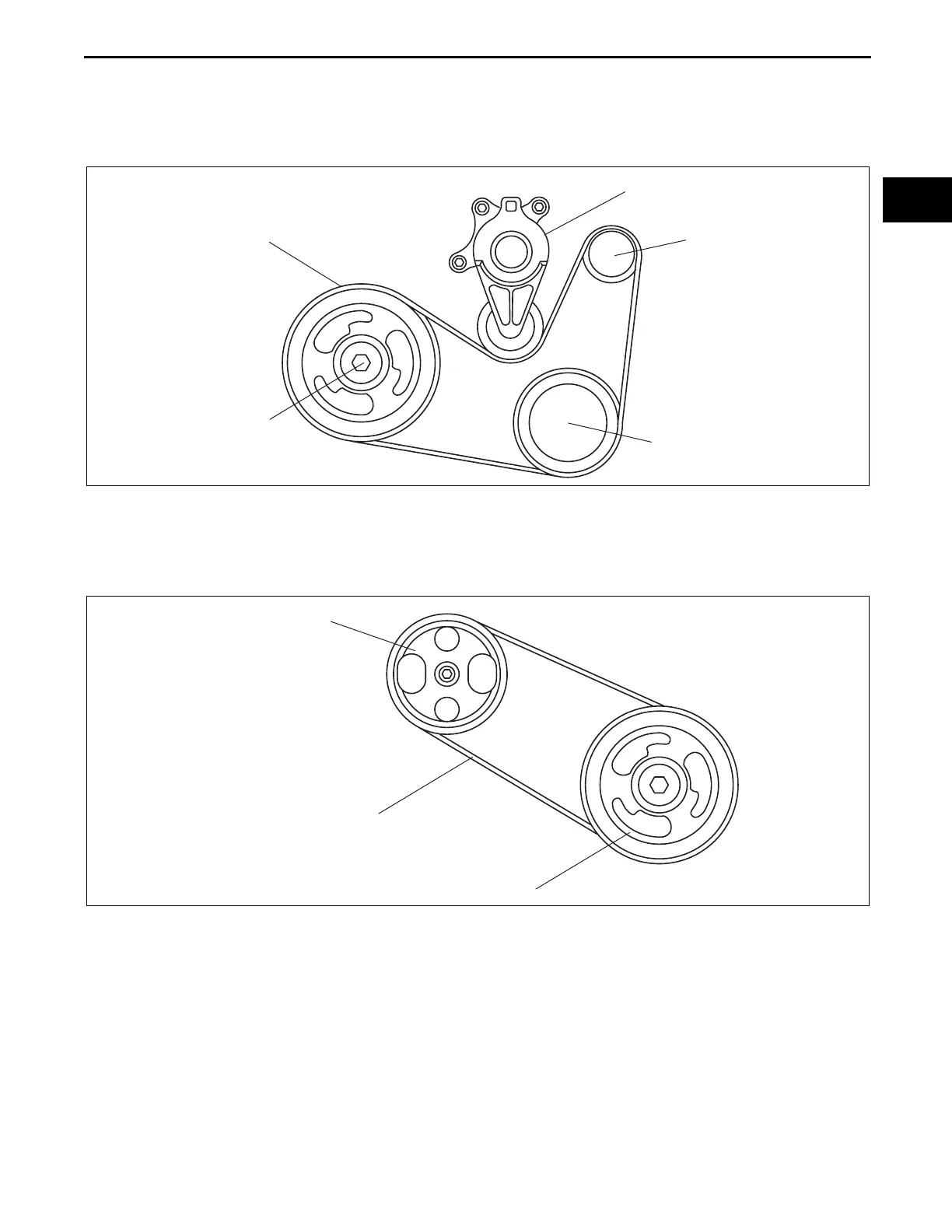

NG: CAMSHAFT
GENERATOR AND A/C
DRIVE BELT
CRANKSHAFT PULLEY
GENERATOR DRIVE BELT
AUTO TENSIONER
GENERATOR PULLEY
A/C COMPRESSOR PULLEY
ac9uun00000039
POWER STEERING
OIL PUMP PULLY
POWER STEERING OIL
PUMP DRIVE BELT
CRANKSHAFT PULLEY
ac9uun00000060
