AIR BAG SYSTEM
08-10–14
DRIVER-SIDE AIR BAG MODULE FUNCTION
id081000100800
• A dual inflator, divided into inflator No.1 and No.2, has been adopted in accordance with the front air bag
system two-step deployment control.
End Of Sie
DRIVER-SIDE AIR BAG MODULE CONSTRUCTION/OPERATION
id081000100900

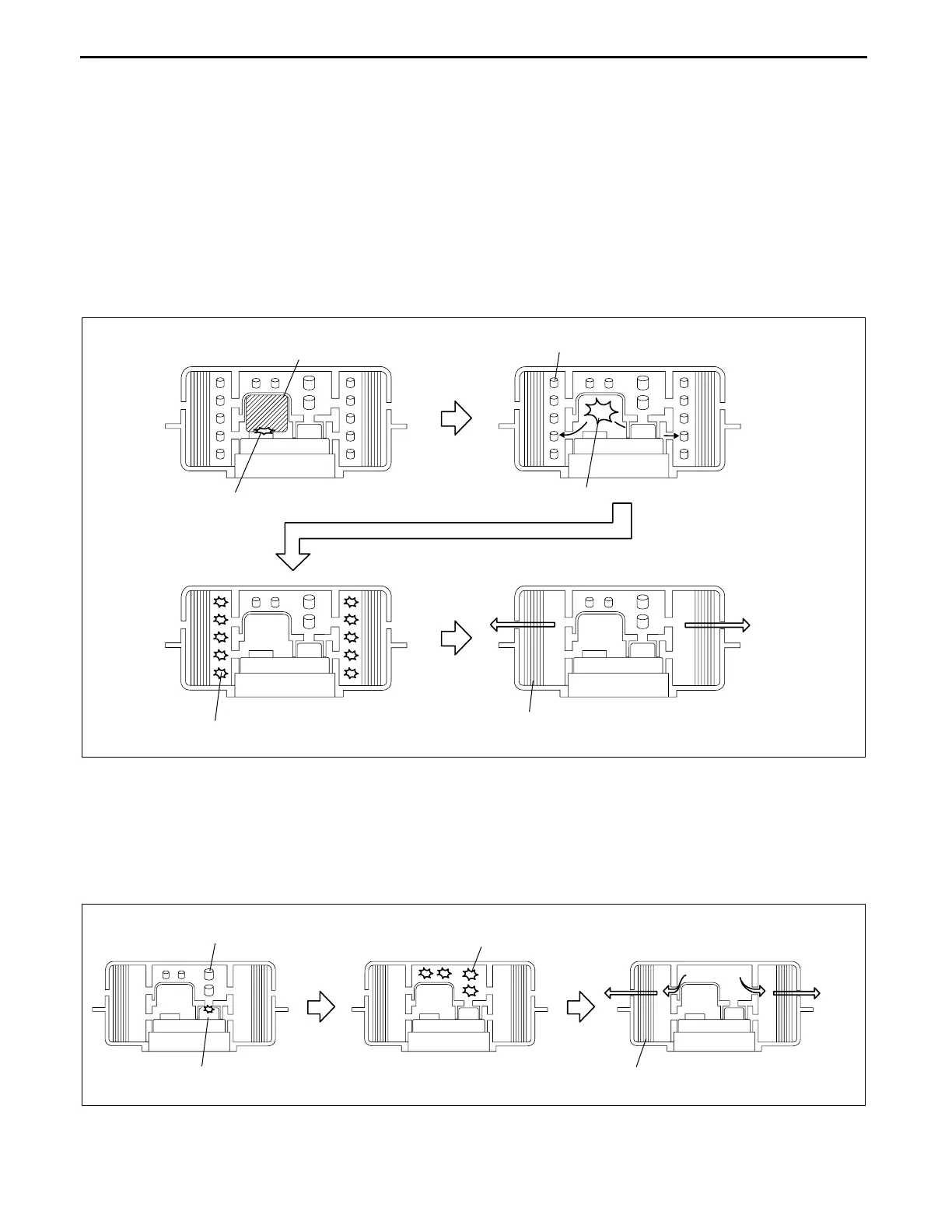

Inflator Operation
Inflator No.1
1. When the driver-side air bag module receives an operation (deployment) signal from the SAS control module,
the igniter built into inflator No.1 builds up heat and ignites the inflammation agent.
2. The ignition of the inflammation agent causes the combustion of a gas-generating agent which releases
nitrogen gas.
3. The nitrogen gas is cooled at the filter and the filtrate is injected into the air bag.
Inflator No.2
1. When the driver-side air bag module receives an operation (deployment) signal from the SAS control module,
the igniter built into inflator No.2 builds up heat and ignites the inflammation agent.
2. The ignition of the inflammation agent causes the combustion of a gas-generating agent which releases
nitrogen gas.
3. The nitrogen gas is cooled at the filter and the filtrate is injected into the air bag.
End Of Sie
NG: PASSENGER-SIDE AIR BAG MODULE
INFLAMMATION
AGENT
IGNITION OF INFLAMMATION AGENT
IGNITER
(INFLATOR NO.1)
GAS GENERATING
AGENT
GAS GENERATING
AGENT COMBUSTION
TO
AIR BAG
TO
AIR BAG
FILTER
acxuun00000265
IGNITER
(INFLATOR NO.2)
GAS GENERATING
AGENT
GAS GENERATING
AGENT COMBUSTION
TO
AIR BAG
TO
AIR BAG
FILTER
acxuun00000266
