AUTOMATIC TRANSAXLE [AW6A-EL, AW6AX-EL]
05-17–28
End Of Sie

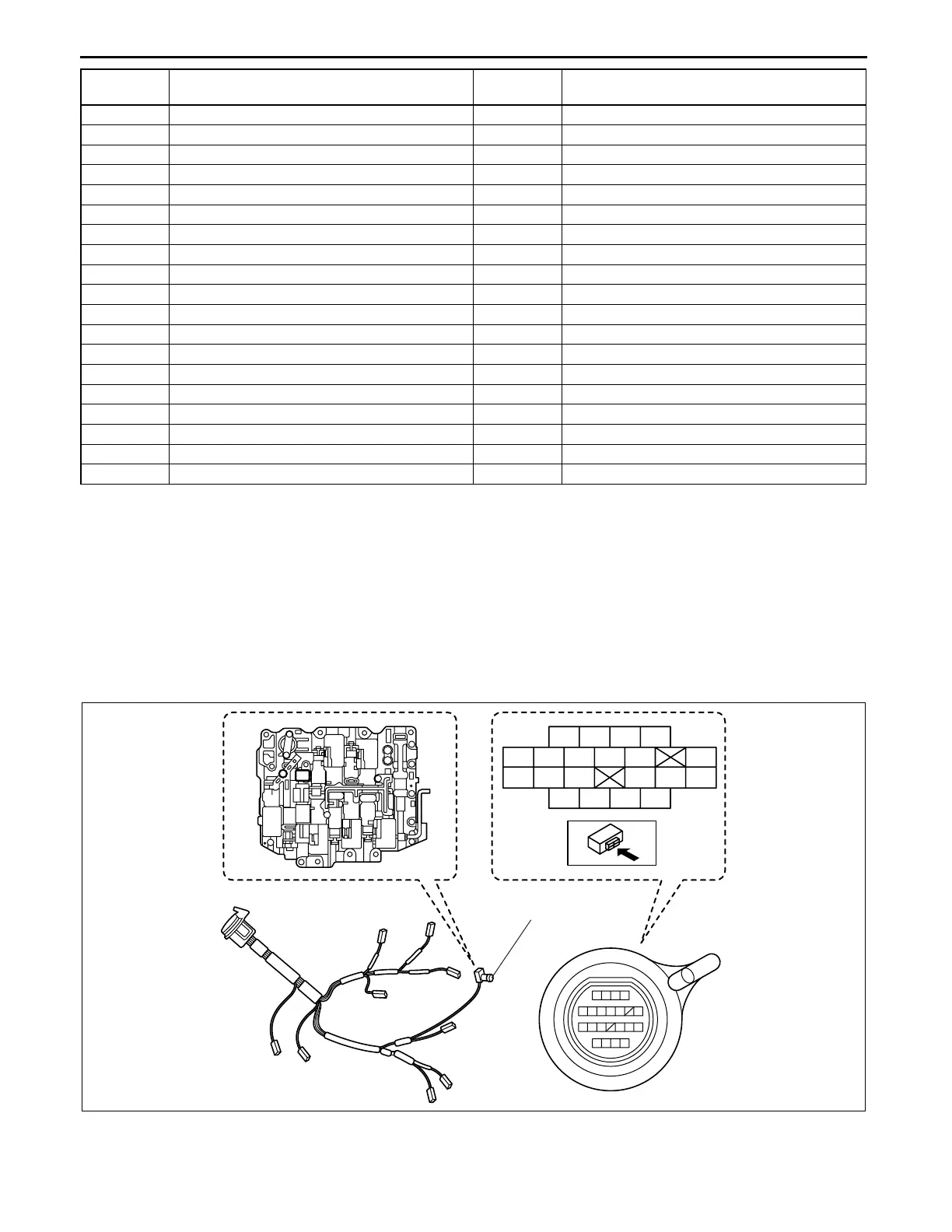

NG: AUTOMATIC TRANSMISSION/TRANSAXLE INPUT (SENSOR/SWITCH)
COUPLER COMPONENT (TRANSAXLE FLUID TEMPERATURE (TFT) SENSOR) OUTLINE [AW6A-EL,
AW6AX-EL]
id051723101000
• The coupler component are installed on the transaxle case as the grouped connectors of the TFT sensor, input/
turbine speed sensor, VSS and solenoids.
• The TFT sensor, which is integrated with the coupler component, is installed on the front valve body. It directly
detects the TFT within the hydraulic pressure control circuit and transmits a signal based on that temperature to
the TCM. Through this, it controls gear shift, TCC and slip in response to changes in TFT for smooth shifting
across wide TFT zones.
.
A4 Manual down B4 TCC control solenoid (–)
A5 Start lock B5 Shift solenoid A
A6 CAN_L B6 Blank
A7 M range B7 TFT sensor (–)
A8 Blank B8 TFT sensor (+)
A9 TCM GND B9 TCC control solenoid (+)
A10 Blank B10 Shift solenoid C (–)
A11 IGI B11 Shift solenoid C (+)
A12 Blank B12 Input/turbine speed sensor (+)
A13 Back-up light relay B13 Input/turbine speed sensor (–)
A14 CAN_H B14 Shift solenoid E (+)
A15 Blank B15 Blank
A16 Blank B16 Shift solenoid F (–)
— — B17 Shift solenoid D (+)
— — B18 Shift solenoid D (–)
——B19 VSS (+)
— — B20 VSS (–)
— — B21 Shift solenoid F (+)
— — B22 Shift solenoid E (–)
Terminal
No.
Signal
Terminal
No.
Signal
TFT SENSOR
B4
B3
B2
B1
B22
B21
B20
B19
B11
B10
B9
B8
B18
B17
B16
B7 B5
B14
B13
B12
acxuun00000609
