AUTOMATIC TRANSAXLE SHIFT MECHANISM
05-18–6
KEY INTERLOCK SYSTEM OPERATION
id051800100600

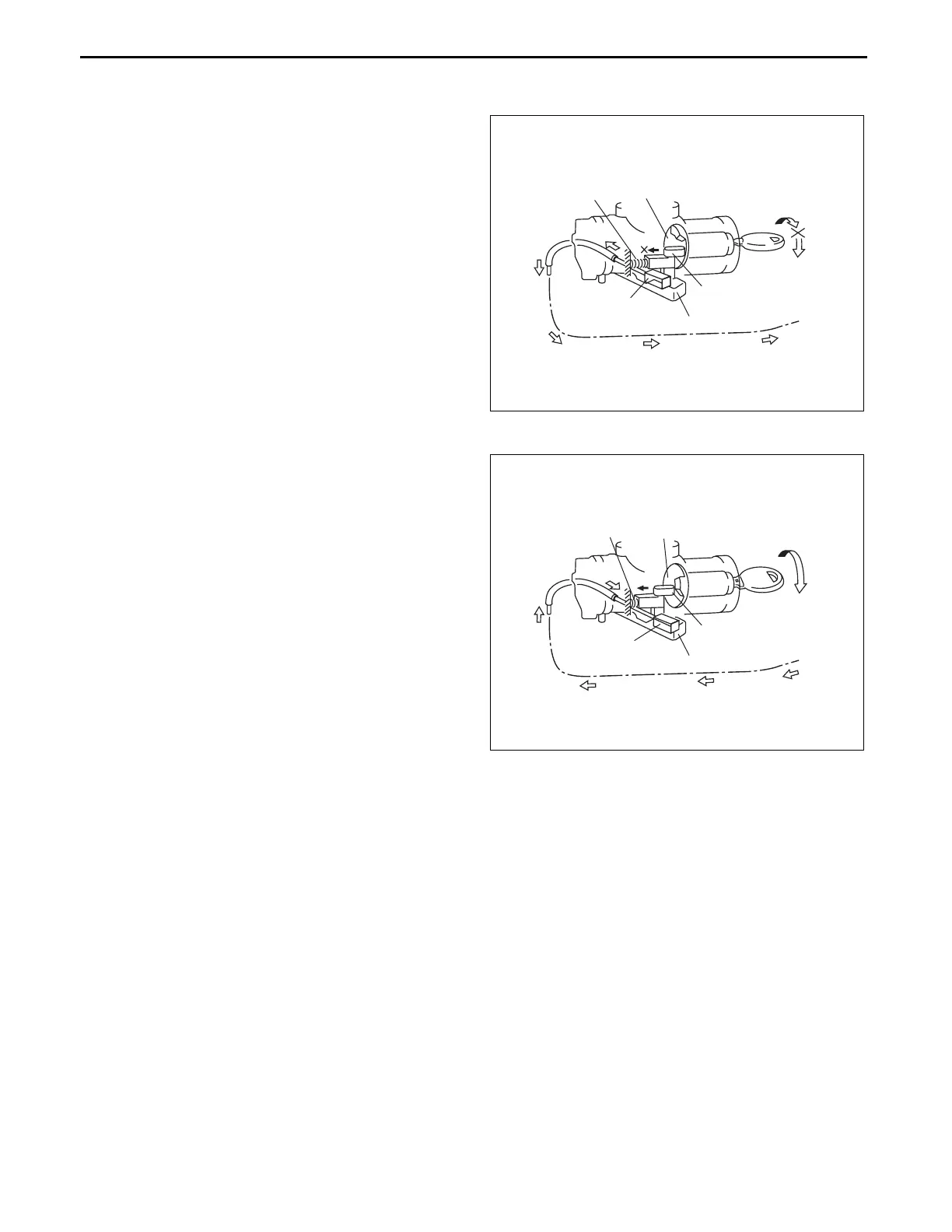

Positions other than P position (Key interlock is operating)
• When the selector lever is in a position or range
other than P position, the cable end is set at the
key-locked position. When the engine is switched
off and an attempt is made to turn the ignition
switch to the LOCK position, turning of the cam is
restricted by the slider because the cable end
pushes the slider to the cam side, and the ignition
switch cannot be turned to LOCK.
P Position (Key interlock is not operating)
• When the selector lever is in P position, the cable
end is at the key-unlocked position, and because
the slider does not restrict movement of the cam,
the ignition switch can be turned to LOCK.
End Of Sie
SPRING
CAM
CABLE END
SLIDER
OUTER CASING
INTERLOCK CABLE
IMPOSSIBLE TO
TURN KEY TO
LOCK POSITION
acxuun00000639
SPRING
CAM
CABLE END
SLIDER
OUTER CASING
INTERLOCK CABLE
POSSIBLE TO
TURN KEY TO
LOCK POSITION
acxuun00000640
