REAR CLIMATE CONTROL UNIT CONSTRUCTION
id074000106000
• Installed to the console panel.
• When the rear control switch on the front climate control unit is on, the control indicator on the rear climate
control unit is illuminated, and the rear A/C can be operated using the rear climate control unit.
• When the rear control switch on the front climate control unit is on, the LED on the outside of the dial on the
rear climate control unit illuminates, and the airflow amount and set temperature for the rear are displayed.
• When the rear control switch on the front climate control unit is off, the rear A/C is controlled based on the set
temperature which has been set using the driver-side temperature setting dial on the front climate control unit.
The operation condition of the rear A/C is not displayed.
End Of Sie
NG: FULL-AUTO AIR CONDITIONER SYSTEM

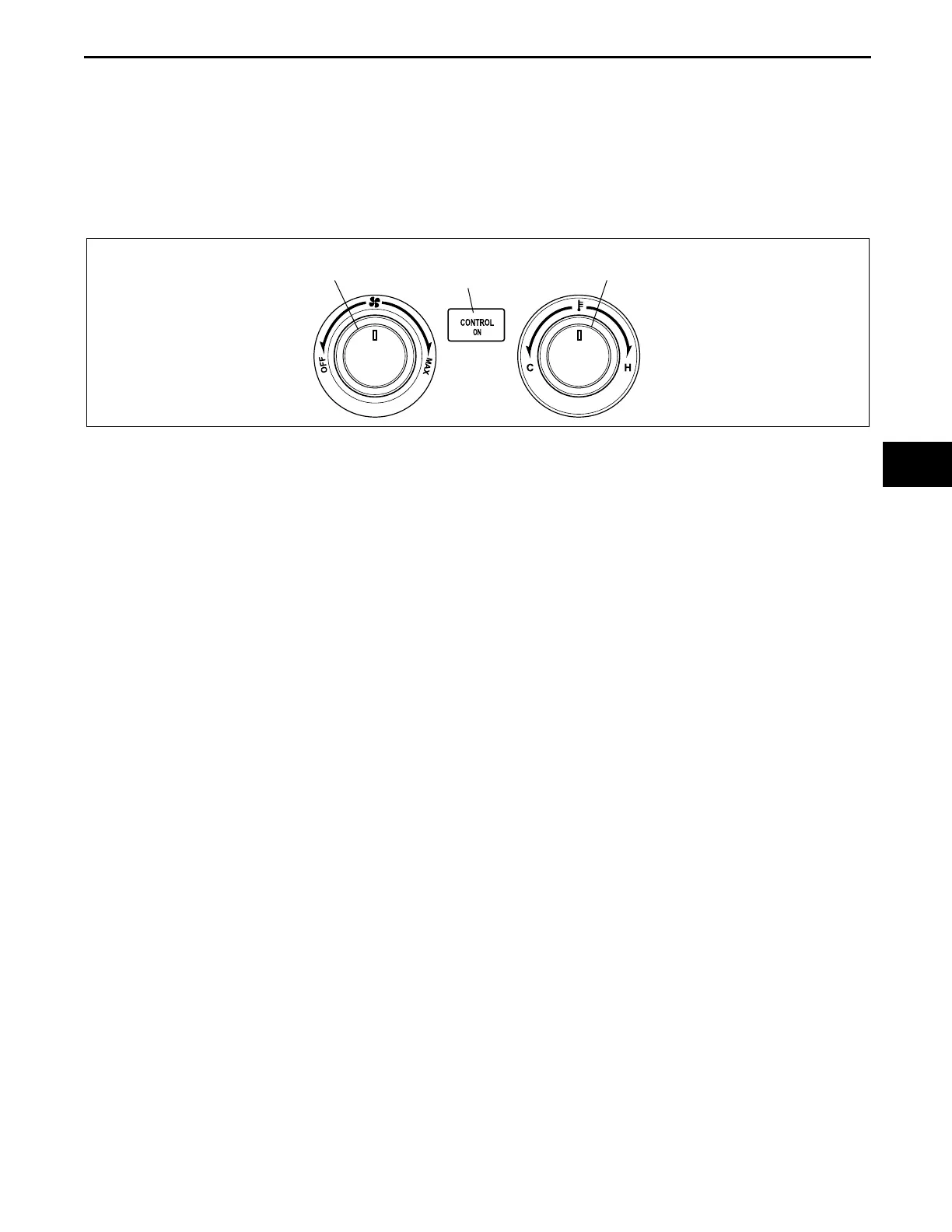

REAR TEMPERATURE
SETTING DIAL
REAR AIRFLOW
VOLUME CONTROL DIAL
CONTROL ON
INDICATOR
ac9uun00000212
