ON-BOARD DIAGNOSTIC
08-02–4
B1890 18 21
Passenger air bag deactivation (PAD) indicator circuit
short to power supply
B1916 19 13
Driver-side air bag module (inflator No.1) circuit short
to power supply
B1921 - Continuously illuminated 1 Air bag diagnostic monitor ground circuit open
B1925 21 12
Passenger-side air bag module (inflator No.1) circuit
short to power supply
B1932 19 13
Driver-side air bag module (inflator No.1) circuit
resistance high
B1933 21 12
Passenger-side air bag module (inflator No.1) circuit
resistance high
B1934 19 13
Driver-side air bag module (inflator No.1) circuit
resistance low
B1935 21 12
Passenger-side air bag module (inflator No.1) circuit
resistance low
B1936 19 13
Driver-side air bag module (inflator No.1) circuit short
to body ground
B1938 21 12
Passenger-side air bag module (inflator No.1) circuit
short to body ground
B1992
22 17
Driver-side side air bag module circuit short to power
supply
B1993
Driver-side side air bag module circuit short to body
ground
B1994
Driver-side side air bag module circuit resistance
high
B1995 Driver-side side air bag module circuit resistance low
B1996
23 16
Passenger-side side air bag module circuit short to
power supply
B1997
Passenger-side side air bag module circuit short to
body ground
B1998
Passenger-side side air bag module circuit
resistance high
B1999
Passenger-side side air bag module circuit
resistance low
B2226
42 11
Crash zone sensor (internal circuit abnormal)
B2227 Crash zone sensor (communication error)
B2228 19 13
Driver-side air bag module (inflator No.2) circuit short
to body ground
DTC
System malfunction location
Mazda
Modular
Diagnostic
System (M-
MDS)
display

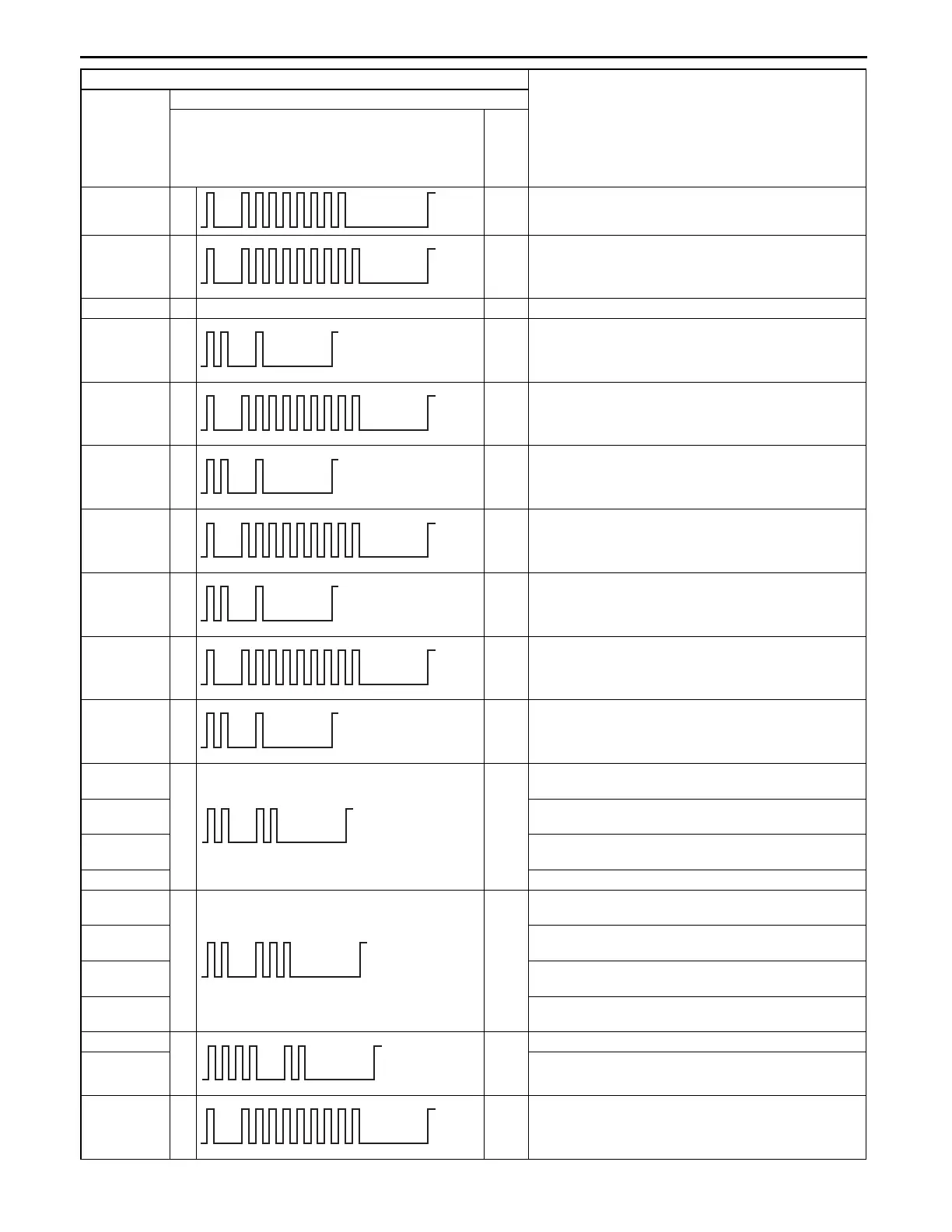

Air bag system warning light
Flashing pattern
