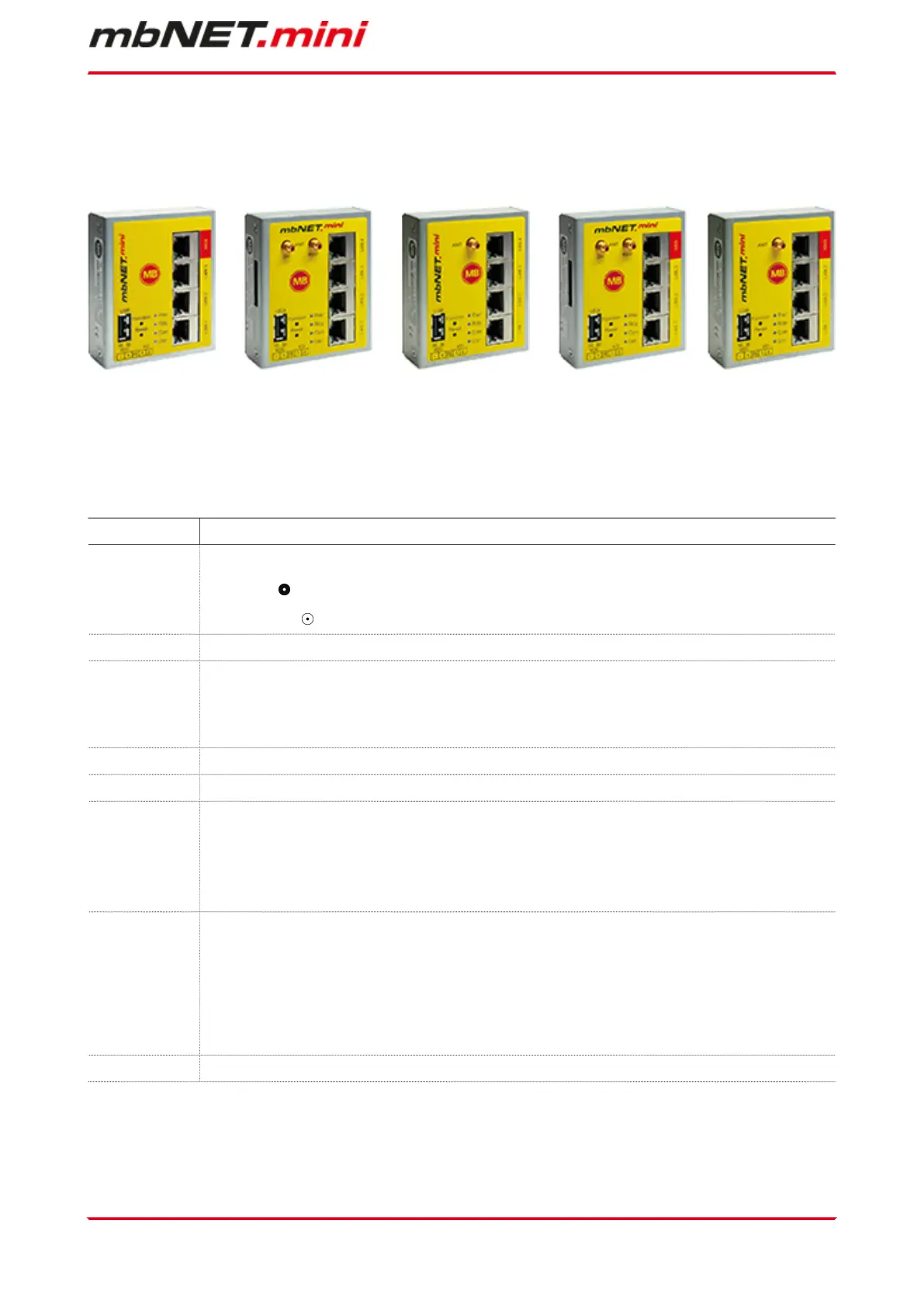

9 Displays, controls and connections
View of front of the device
MDH 860 MDH 862 MDH 863 MDH 866 MDH 867
3 x LAN
1 x WAN
USB
4 x LAN
4G module
USB
4 x LAN
Wi-Fi
USB
3 x LAN
1 x WAN
4G module
USB
3 x LAN
1 x WAN
Wi-Fi
USB
Connections, interfaces and buttons
Designation Description
ANT
SMA antenna connector:
•
SMA (MDH 861, MDH 862, MDH 865, MDH 866)
•
RP SMA (MDH 863, MDH 867)
Main SMA antenna connector for use with one antenna
Div.
SMA antenna connector (combined with "Main") of
•
a second antenna (macrodiversity)
•
a MIMO antenna (microdiversity)
WAN Router WAN connection (customer network, DSL router).
LAN 1 - 3 Local network connection (e.g. machine network, network data transfer).
USB
•
Transfer of configuration from USB stick to the device.
•
Transfer of firmware from USB stick to the device.
•
Access to free application data via SFTP.
•
Connection of USB devices (USB memory, PLC, webcams, etc.)
Function This button has 4 functions and is used according to the status.
1. Establishing connection to portal (depending on configuration)
2. Accepting firmware or configuration from USB stick
3. Loading factory settings
4. Activate the SIMPLY.connect * function
Reset Pushing this button restarts the device (so-called cold start).
Displays, controls and connections | Page 15 of 131
