25

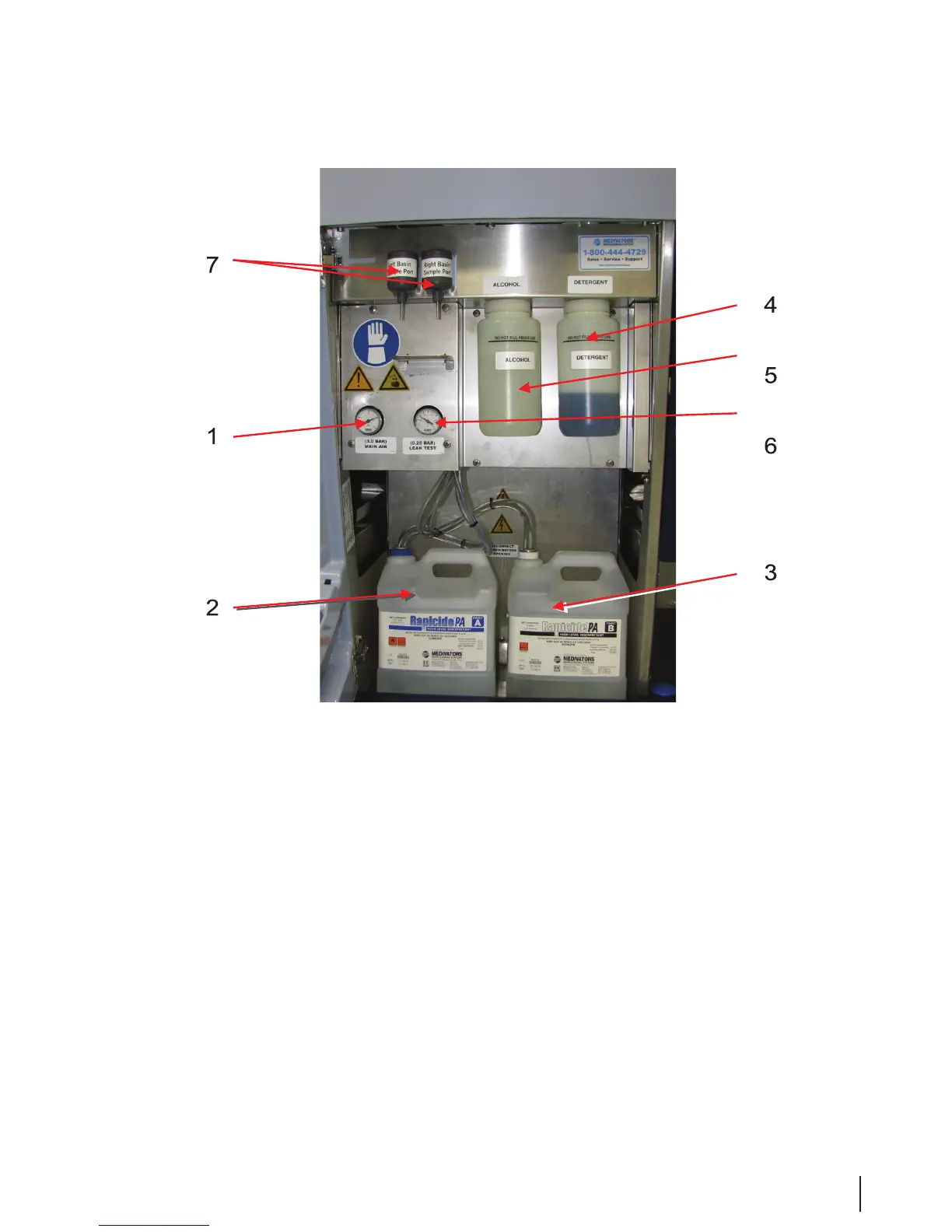

Figure 4 Chemical Reservoirs
1. Main (High) Pressure Gauge: Measures air pressure in the MEDIVATORS
®
ADVANTAGE
PLUS
®
Automated Endoscope Reprocessor. Must be set to 3 bar (45psi). Only to be adjusted by
trained MEDIVATORS technicians.
2. Disinfectant Container: Holds disinfectant Part A used in the disinfection process.
3. Disinfectant Container: Holds disinfectant Part B used in the disinfection process.
4. Detergent Reservoir: Holds detergent used in the wash process.
5. Alcohol Reservoir: Holds alcohol that may be used in the alcohol/air purge process.
6. Leak Test (Low) Pressure Gauge: Measures air pressure in the endoscope sheath and MDS
system. Must be set to 0.25 bar (3.75 psi). Only to be adjusted by trained MEDIVATORS technicians.
7. Sample Ports: Dispenses RAPICIDE
®
PA High Level Disinfectant for MRC testing at the end of
each cycle.
