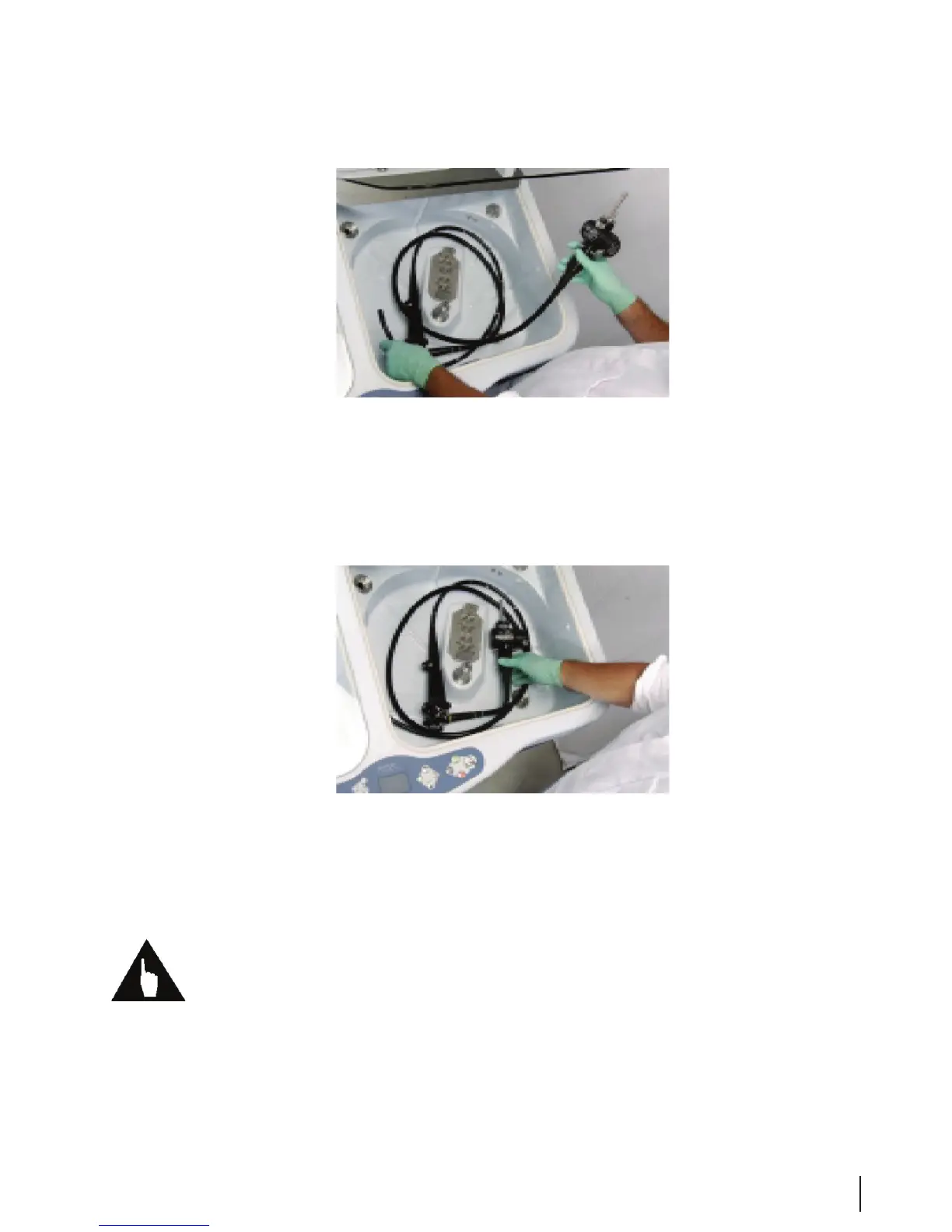

Figure 12 Set the Insertion Tube in Basin
5. Fit the light guide tube in a counterclockwise circle in the basin.
6. Select the proper connection block and channel separator from the endoscope hookup guide.
Figure 13 Fit the Light Guide Tube in Basin
Install the Channel Separator
Note: Reference the endoscope hookup application guide for the correct channel separator.
Select the correct channel separator for the endoscope to be disinfected. Position the adapter so that the
stem with the O-ring ts properly in the water/air valve.
Because the valve design may vary depending on the brand and type of endoscope, attachment of the
adapters may differ.
To Next Page
