64

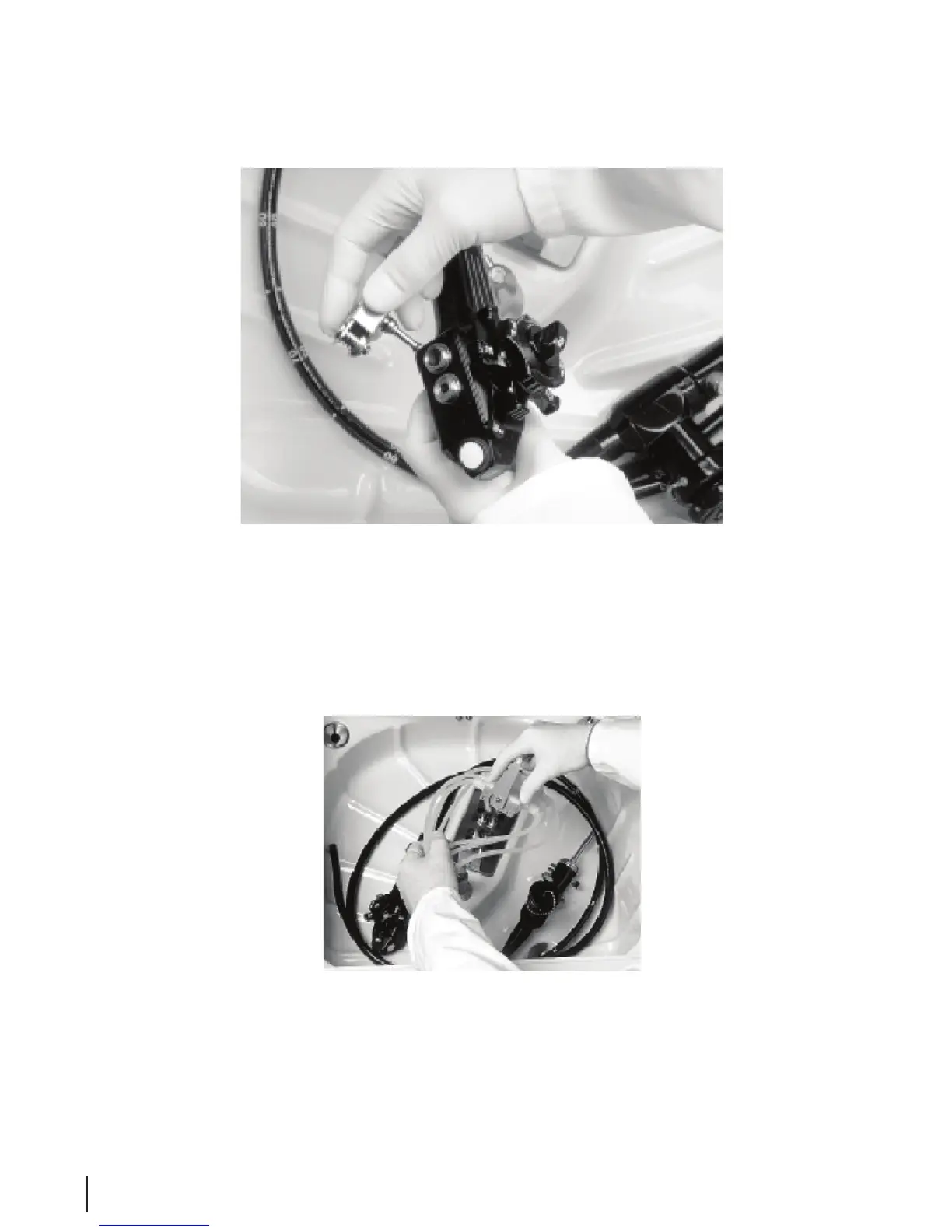

Figure 14 Fitting the Separator
Install the Connector Block
1. Hold the connector block with the handle positioned to the right in Figure 15.
Figure 15 Fitting the Connector Block
2. Place the block lightly over the manifold as shown in Figure 16 making sure that none of the hoses
run or are pinched under the block.
