Medivators ADVANTAGE PLUS - Page 65

65

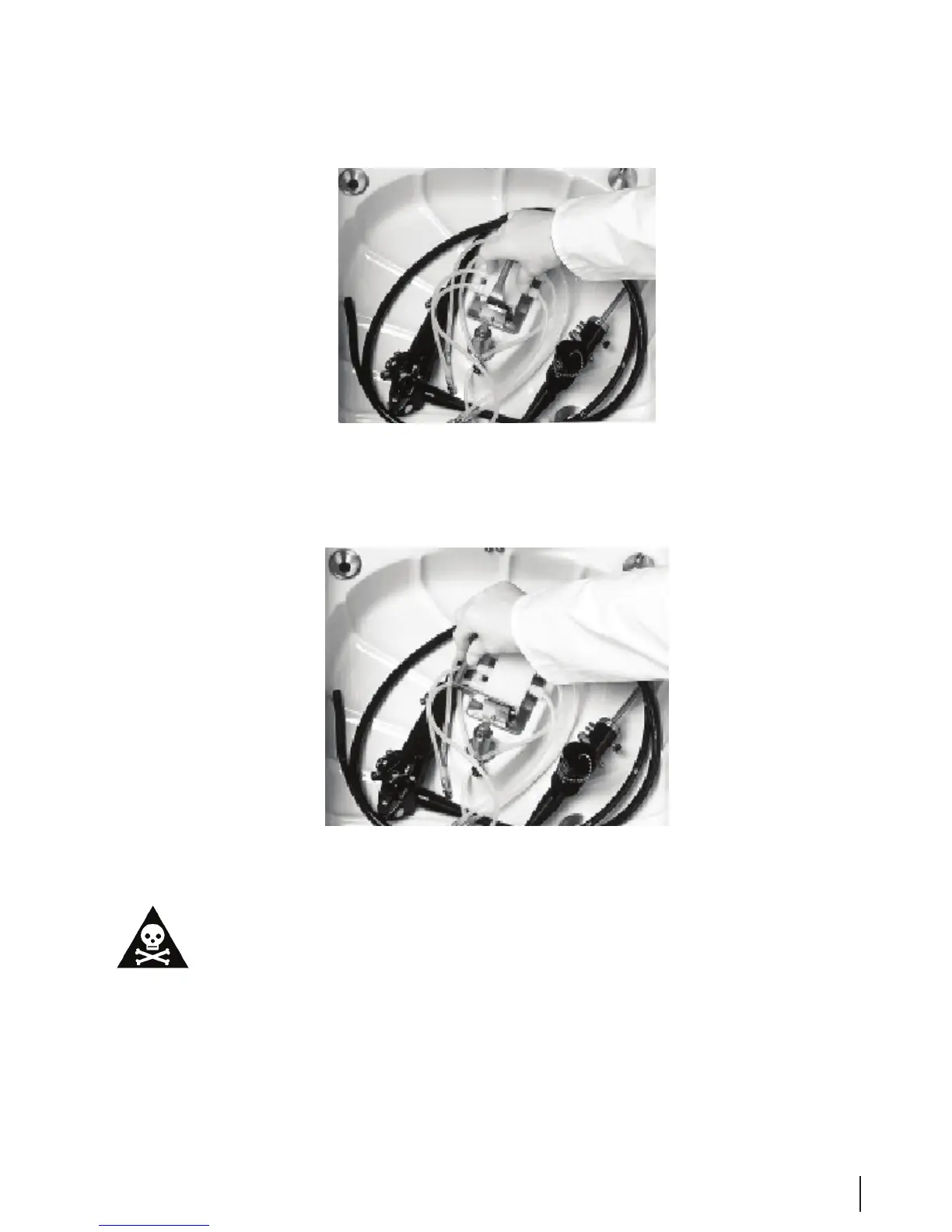

Figure 16 Press Block Over the Manifold
3. Lock the connector block in place by moving the handle to the left as shown in Figure 17.
Figure 17 Close the Handle
WARNING Inspect the seating of the connector block to the manifold. Failure to achieve a proper
connection could result in an endoscope that is not disinfected and therefore should not be used
on a patient.
