Megmeet M5-N Series User Manual

Chapter 2 Servo System Specifications
20
2. 60 base medium inertia servo motor
(1) Dimensions

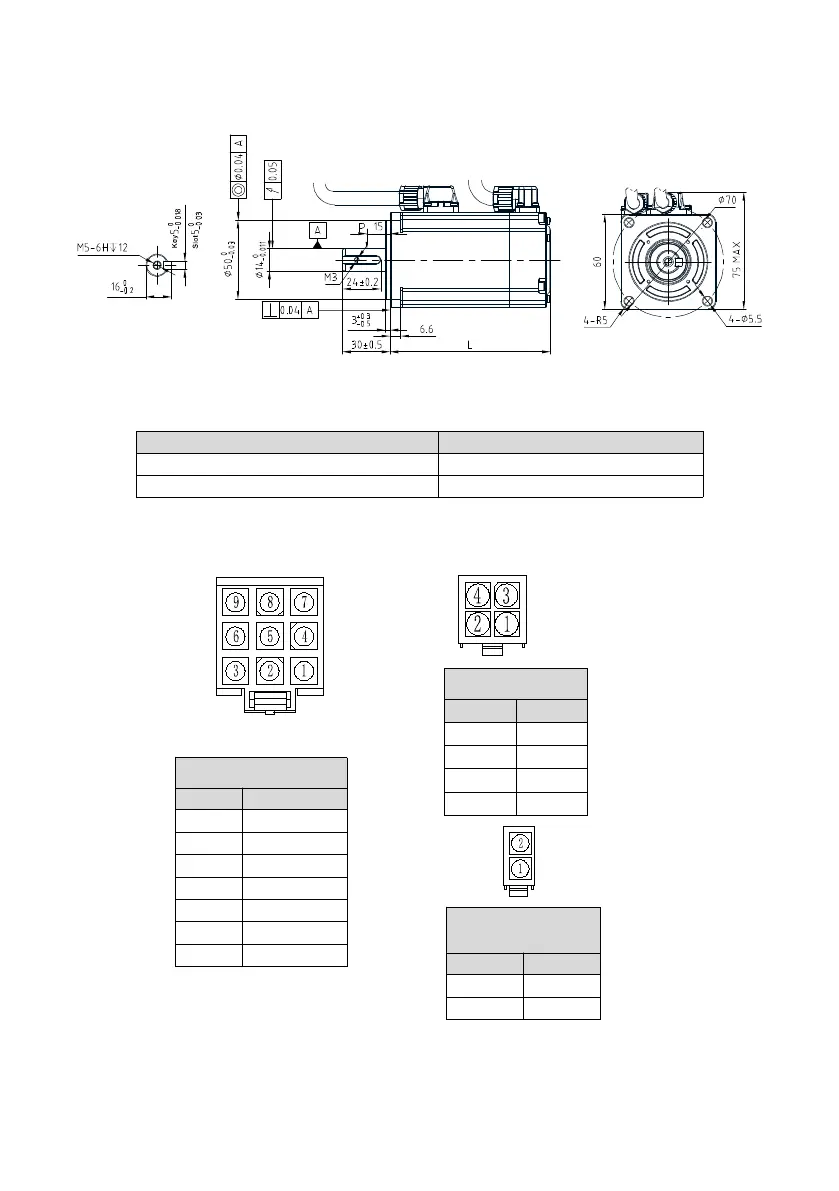

Fig.2-5 Dimensions for 60 base medium inertia servo motor
Table 2-6 Dimensions for 60 base medium inertia servo motor
Model
L(mm)
SPM-SC*0602M**-L
71.8(101)
SPM-SC*0604M**-L
88.8(118.1)
Note: Dimensions in parentheses is the dimension of the motor with brake.
(2) Interface definition
Fig.2-6 Interface definition for 60 base medium inertia servo motor
Motor connection
specifications
Pin
Signal
1
U
2
W
3
V
4
PE
Motor with brake
connection
specifications
Pin
Signal
1
+
2
-
Absolute encoder
connection specifications
Pin
Signal
1
PE
2
5V
3
GND
4
SD+
5
SD-
6
E+
7
E-
