61Z6002A
DIFF:
Starting
[ 041 106 ]
DTOC1:
General starting
[ 035 128 ]
DTOC2:
General starting
[ 035 234 ]
IDMT1:
General starting
[ 038 115 ]
IDMT2:
General starting
[ 038 135 ]
MAIN:
General starting
[ 036 000 ]

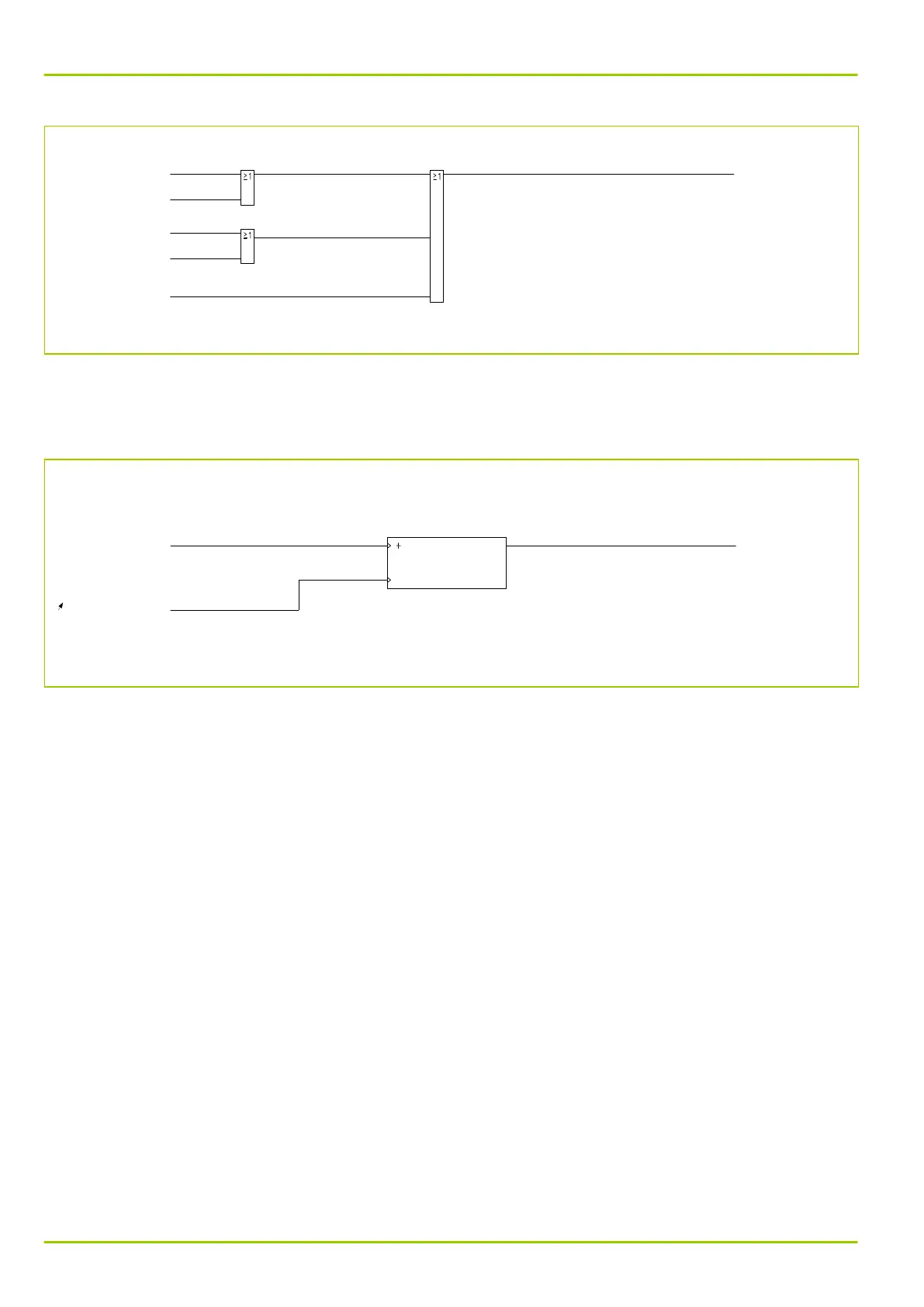

Fig. 3-53: General starting of the P631
3.12.9.3 Counter of Starting Signals
The general starting signals are counted. The counter can be reset individually.
Q6Z0143A
MAIN:
No. general start.
[ 004 000 ]
MAIN:
General starting
[ 036 000 ]
MAIN:
General reset USER
[ 003 002 ]
1: execute
R
Fig. 3-54: Counter for general starting signals
3.12.9.4 Trip Command
The P631 has four trip commands. The functions to effect a trip can be selected
by setting an ‘m out of n’ parameter independently for each of the four trip
commands. The minimum trip command time may be set. The trip signals are
present only as long as the conditions for the signal are met.
The following diagram shows the configuration of the trip commands, using the
trip command 1 as an example. The parameters given apply to trip command 1.
The corresponding parameters of the other trip commands are given in
Chapter 7, (p. 7-1) and Chapter 8, (p. 8-1).
