64Z5044A
MAIN:
Trip cmd. blocked
[ 021 013 ]
MAIN:
Manual trip signal
[ 034 017 ]
MAIN:
Gen. trip signal
[ 036 251 ]
MAIN:
Gen. trip signal 1
[ 036 005 ]
MAIN:
Gen. trip command 1
[ 036 071 ]
MAIN:
Latch. trip c. reset
[ 040 139 ]
MAIN:
Latching trip cmd. 1
[ 021 023 ]
1
0
0: No
1: Yes
MAIN:
Rset.latch.trip USER
[ 021 005 ]
1
0
0: don't execute
1: execute
MAIN:
Man. trip cmd. USER
[ 003 040 ]
1
0
0: don't execute
1: execute
MAIN:
Trip cmd.block. USER
[ 021 012 ]
1
0
0: No
1: Yes
MAIN:
Fct.assig.trip cmd.1
[ 021 001 ]
MAIN:
Min.dur. trip cmd. 1
[ 021 003 ]
m out of n
Selected signals
Signal 1
Signal 2
Signal 3
Signal n
MAIN:
Trip cmd. block. EXT
[ 036 045 ]
MAIN:
Man. trip cmd. EXT
[ 037 018 ]
MAIN:
Reset latch.trip EXT
[ 040 138 ]

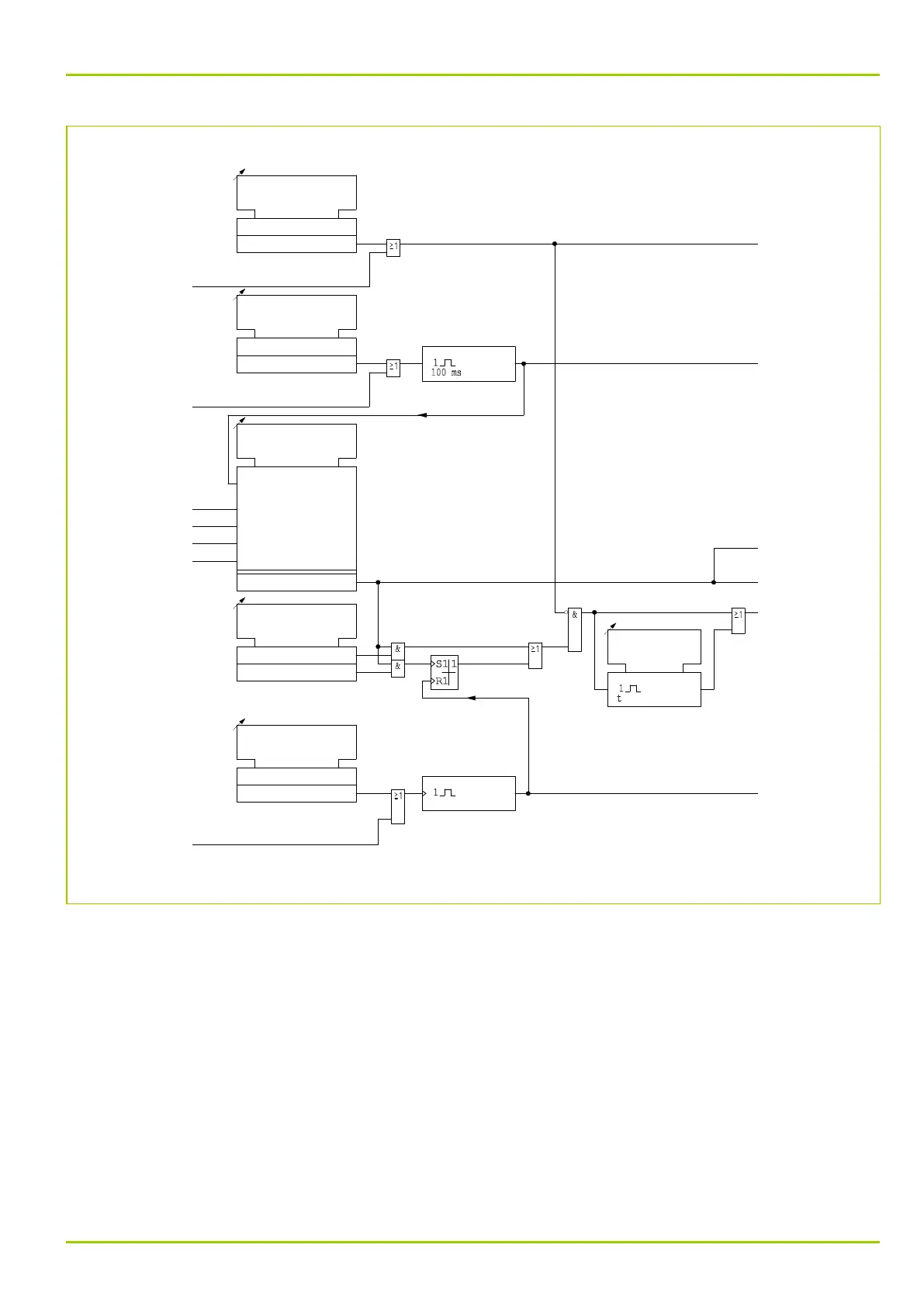

Fig. 3-55: Forming the trip commands
3.12.9.5 Manual Trip Command
A manual trip command may be issued via a parameter or a binary signal input
configured accordingly, but it is not executed unless the manual trip is included
in the selection of possible functions to cause a trip.
3.12.9.6 Latching of the Trip Commands
For each of the four trip commands, the user can specify by way of the
appropriate setting whether it will operate in latching mode. The trip command,
set to latch mode, will remain active until reset by parameters or reset through
an appropriately configured binary signal input.
3 Operation
P631
P631/EN M/R-11-C // P631-310-650 3-81
