Page 30
Installation
optoNCDT 1420
5.4 Electrical Connections
5.4.1 Connection Possibilities
Source Cable/Supply Interface End device
USB
PC
PS 2020
PCF1420-x/IF2008 (IF2008-Y)
PC1402-x/CSP
Sensor supply is done by
peripheral
IF2008
PCF1420-x/IF2008
and IF2008-Y-adap-
ter cable
IF2004/USB
PCF1420-x/I and PCF1420-x/U
PCF1420-x/I and PCF1420-x/U
SPS
IF2001/USB
PCF1420-x/I and
PCF1420-x/U
Extension
clamp RS422

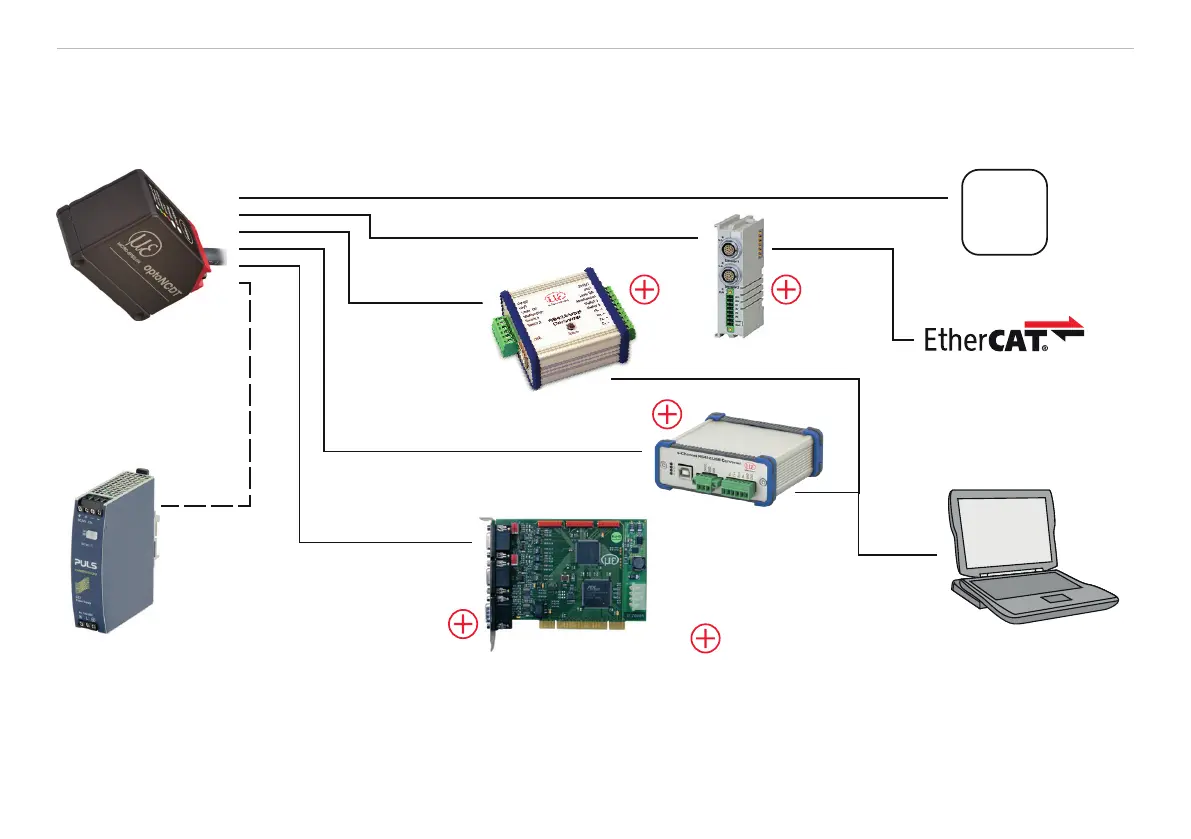

Fig. 15 Connection examples on ILD 1420
The different periphery devices can be connected by the illustrated connection cables to the 14-pin sensor plug, see Fig. 15. The con-
verters IF2001/USB, IF2004/USB and the PCI interface card IF2008 also supply the operating voltage (24 V DC) of the sensor. Power
to the converters is supplied e. g. by the optional power supply PS 2020.
