Page 41
Operation
optoNCDT 1420
6.2.2 Access via Web Interface
Start the web interface of the sensor, see Chap. 6.2.1
Interactive websites for programming the sensor now appear in the web browser.
In the top navigation bar other
auxiliary functions (settings,
measurement chart etc.) are
available.
The appearance of the web-
sites can change dependent
of the functions. Each page
contains descriptions of pa-
rameters and so tips for filling
the website.

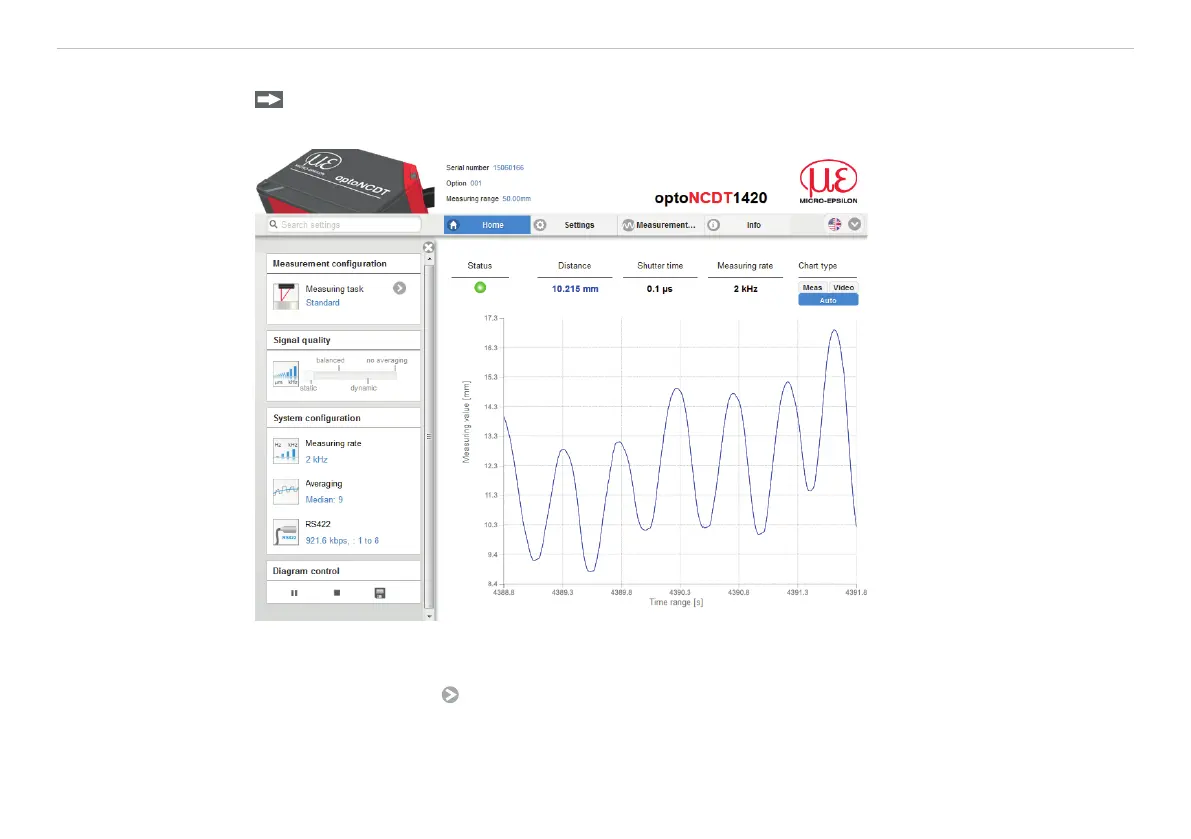

Fig. 26 First interactive web-
site after selection of the web
interface
The sensor is active and supplies measurement values. The ongoing measurement can be operated by
means of function buttons in the area Measurement.
By clicking the button in the area Measurement configuration, the change between the saved
configurations (presets) for different measuring object surfaces (targets) is done. Choosing a target causes a
predefined configuration of the settings which achieves the best results for the chosen material.
