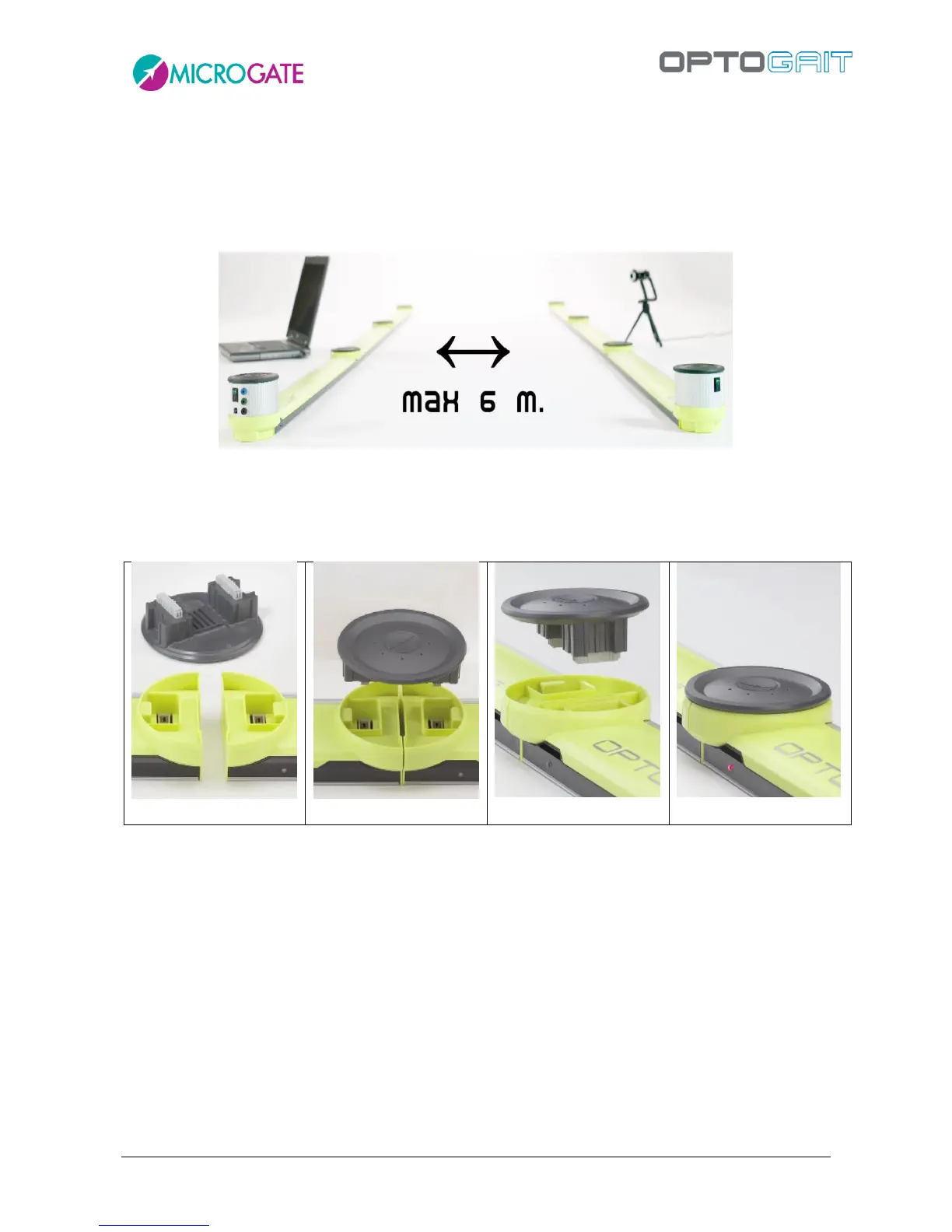

Below is the step-by-step procedure for bar installation:
 Switch off the OptoJump Next device
 Place the two OptoJump Rx and Tx bars facing each other at a minimum distance of one
meter (maximum 6 meters)
Figure 11 – Maximum distance
 If a number of bars connected together are used, pay attention to the insertion of the
caps (see figures below). Check that the caps are firmly inserted. If insertion is incorrect,
the software may not function correctly.
Figure 12
Figure 13
Figure 14
Figure 15
