Version 1.10 Page 28 of 203

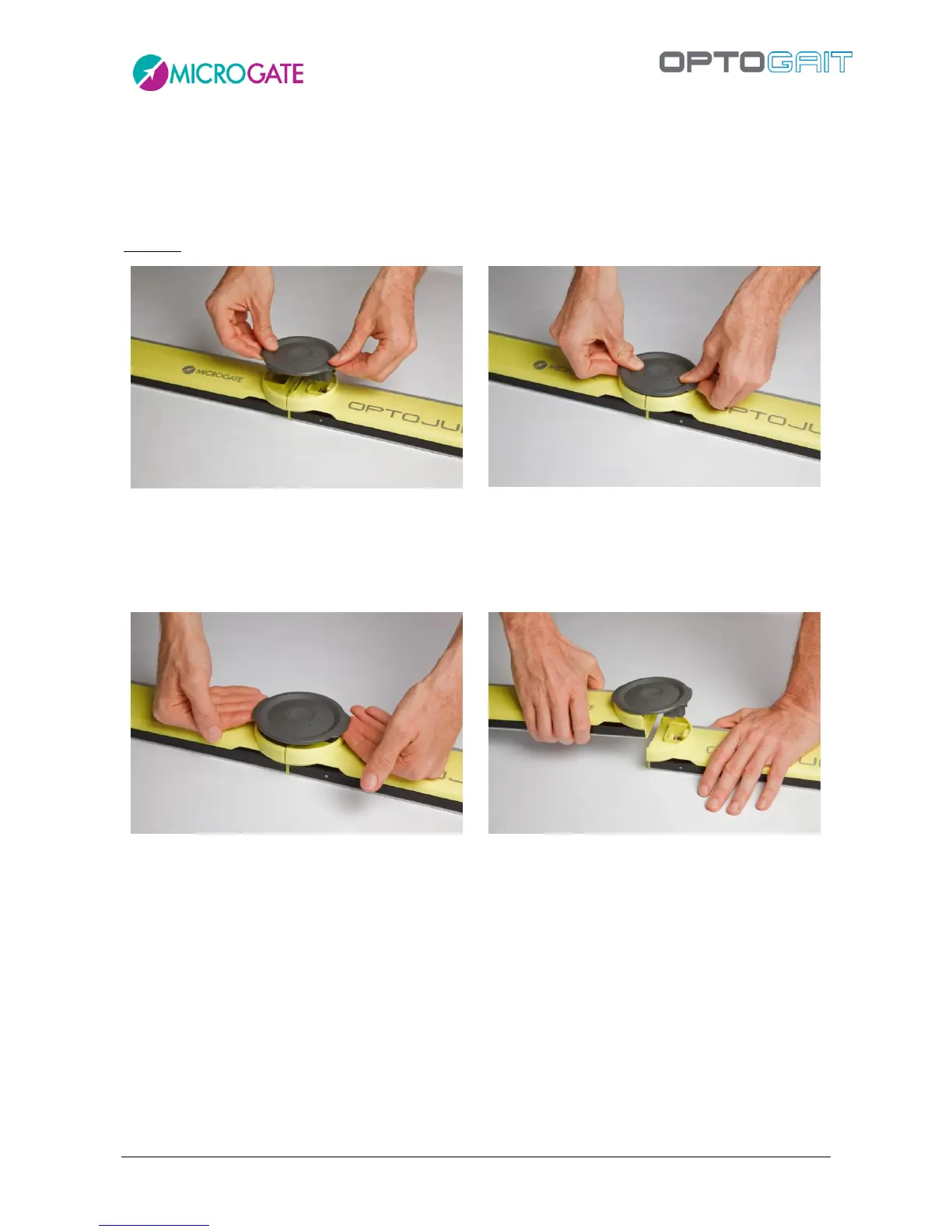

To mount the connection cap just insert the cap in the dedicated slots and apply light pressure on
both sides until it has been completely inserted (make sure it is parallel with the two bars; the two
connectors should slot in simultaneously).
The cap can only be inserted one way round. If you find that the cap will not go in, turn it 180°.
DO NOT force if insertion is difficult, as this would risk bending the connection pins!
To remove the cap, grip the two side tabs and pull upwards symmetrically. Alternatively, you can
hold one of the 2 bars down firmly and carefully lift the other until the cap comes off.
