Microgate OPTOJUMP Next - Page 32

Version 1.10 Page 32 of 203

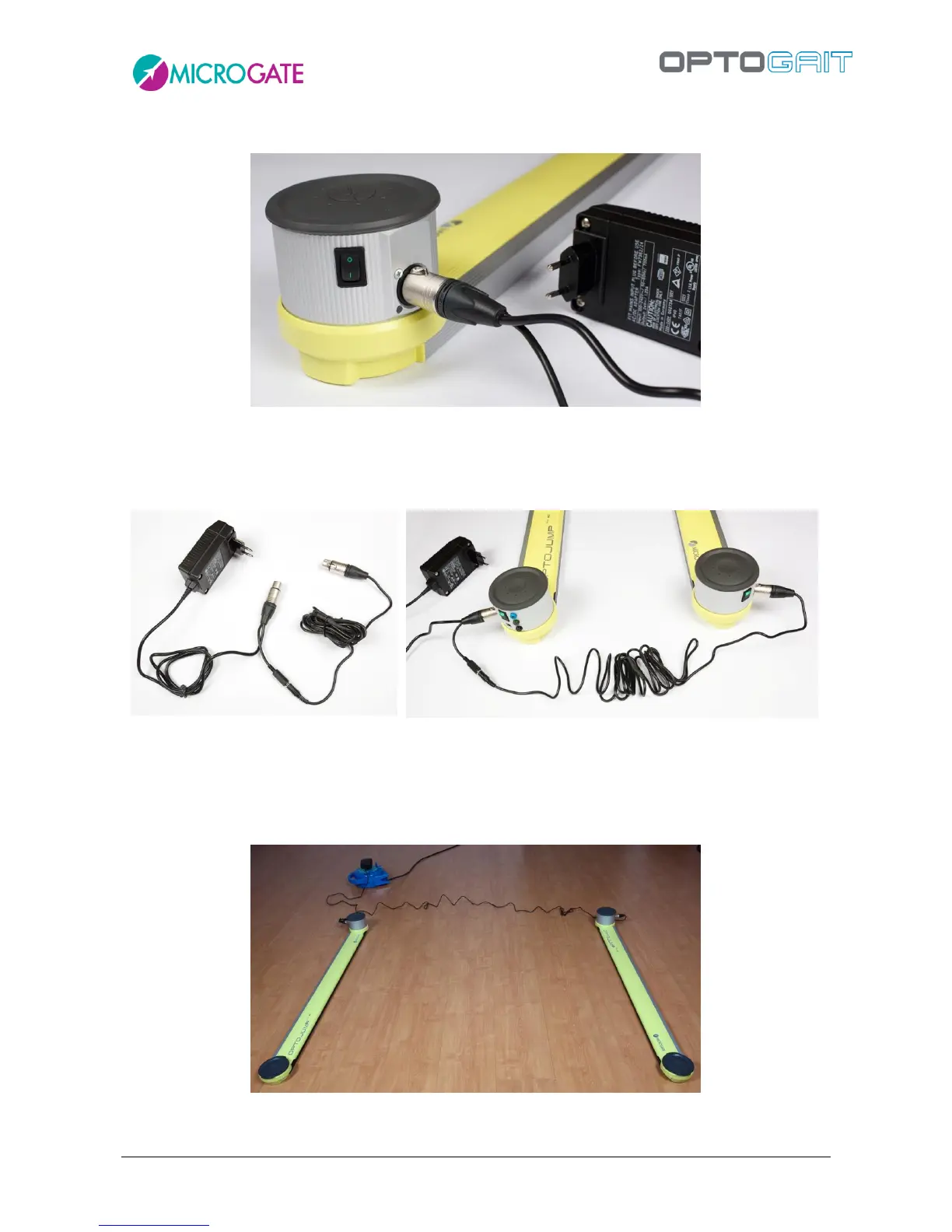

To recharge the battery, connect the adaptor plug to the dedicated socket on the drum.
The TX RX bars can be recharged simultaneously using the dedicated cable that connects the second
drum to the adaptor.
Figure 25 - Adaptor and cable for second bar
The connection cable is long enough to make it possible to keep the bars at a normal distance (5 - 6
m) and therefore to work normally even when connected to the power supply.
