Sound power
Units with letter A installed without internal filters with air speed of 0.5m/s, the sound level is 55dbA at a
distance of 1metre with work surface 900mm high.
Electrical connections
The power supply line needs to be earthed (Class I device).
115V60Hz: Power supply line protection: residual current circuit breaker curve C20, residual current: 30mA.
220-240V50/60Hz: Power supply line protection: residual current circuit breaker curve C16, residual current:
30mA.
100V50/60Hz: Power supply line protection: residual current circuit breaker curve C15, residual current:
30mA.
2m power cord.
Letter J: JIS plug (JIS 8303)
Letter K: BS plug (BS1363/A)
Letter U: NEMA plug (NEMA 5-20)
Letter E: Schuko plug (DIN/VDE 0620)
Hydraulic connections
-1X Hot water inlet: 1/2’’ female
-1X Cold water inlet: 1/2’’ female
-Maximum water inlet pressure: 0.6 bar
-Fluid temperature MIN: +2 °C MAX 52 °C
-Wastewater drain: 40mm pipe
Ventilation

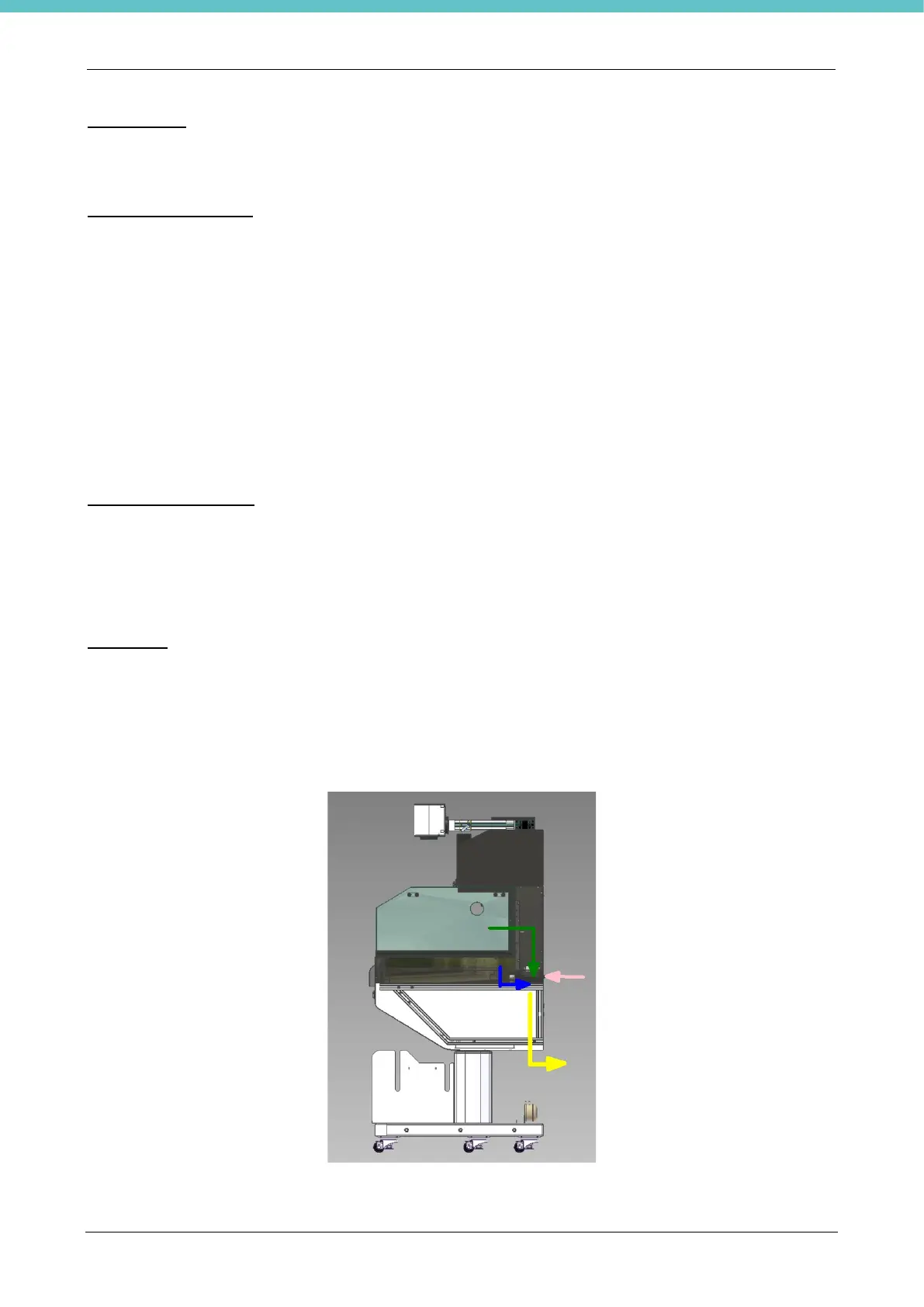

The ventilation system is applied in 3 distinct parts that cannot be excluded:
-Work surface area (downdraft) in blue
-Area on the panel behind the work surface (backdraft) in green
-Area dedicated to the "waste” bin (optional part - see chapter 5.2) in pink
The fluxes of these 3 exhaust zones are ejected at the back by 2 pipes (inside diameter from 160mm length
4metres). The two pipes can be connected in a coupling with a 200mm outlet (optional, see chapter 5.17).
