Mindray Resona R9 Exp User Manual

17 Probes and Biopsy
Operator’s Manual 17 - 65

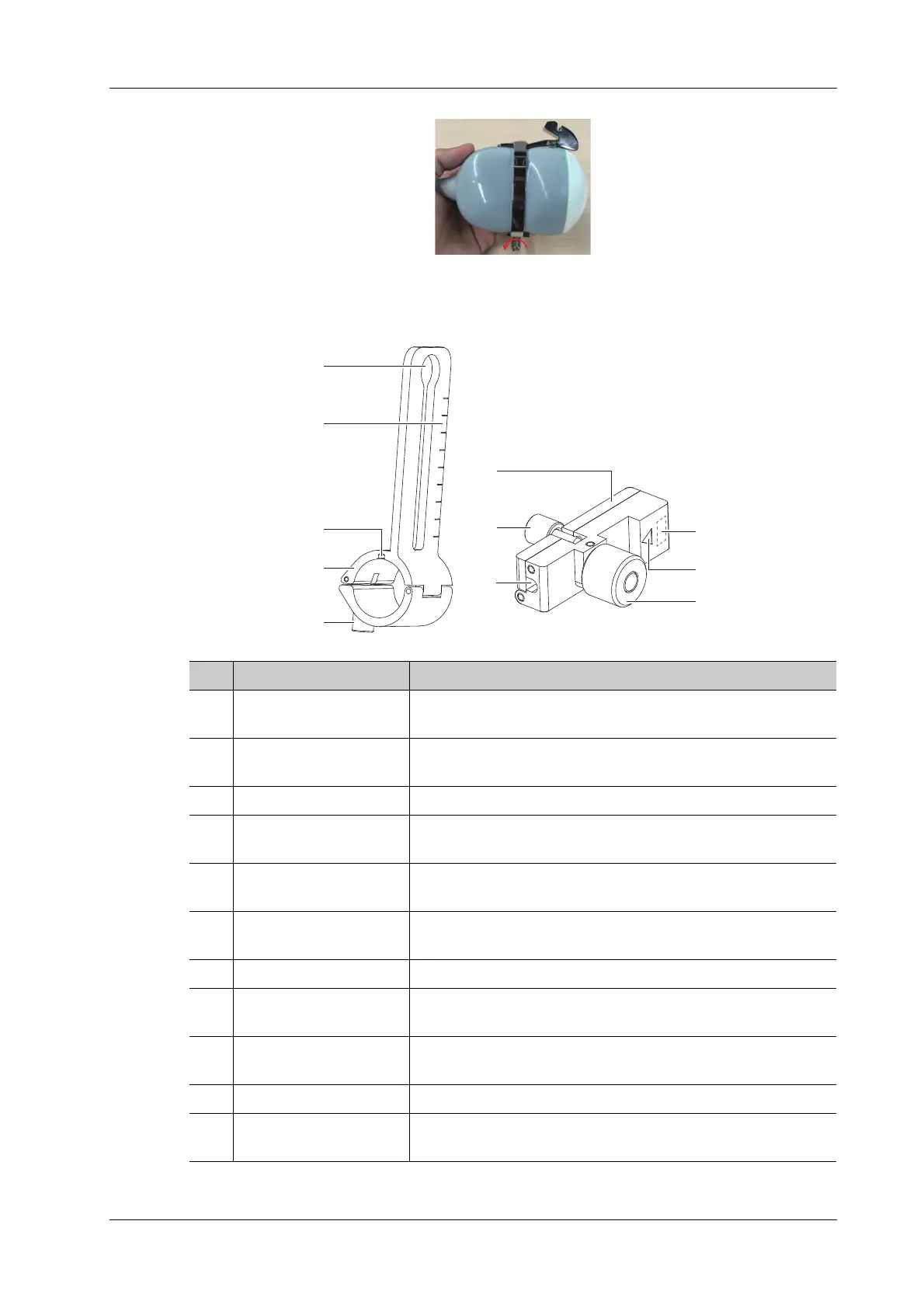

NGB-051
No. Name Description
1. Support of needle-guided
bracket
Used for installing the needle-guided bracket on the transducer.
2. Knob of fixing needle-
guided bracket
Used for fixing the needle-guided bracket on the transducer.
3. Groove Match with the tab on the transducer.
4. Hole for installing
guiding block
Used for installing the knob of fixing needle-guided bracket.
5. Needle distance scales Indicate distance between needle and the transducer head
surface.
6. Guiding block Used for installing biopsy needle; there are five specifications
of guiding blocks for different needles.
7. Knob of fixing the needle Used for fixing the needle.
8. Guiding hole of the
needle
Used for installing the biopsy needle.
9. Specification of guiding
block
Matched with the corresponding biopsy needle.
10. Mark of indicating scales Indicating needle distance scales.
11. Knob of fixing the
guiding block
Used for fixing the guiding block.
1
6
9
10
11
7
8
2
3
4
5
