13.3. Movement Parameters
13.3.1. Motion limit parameter
This sets the operating range of the robot
Set the parameters while connected to the robot controller.
Double-click [Movement parameter] -> [Motion Limit] under the [Parameter] item to be edited from the project
tree.
After you change the parameter value, you can rewrite the motion limit parameter in the robot controller by
clicking the [Write] button.

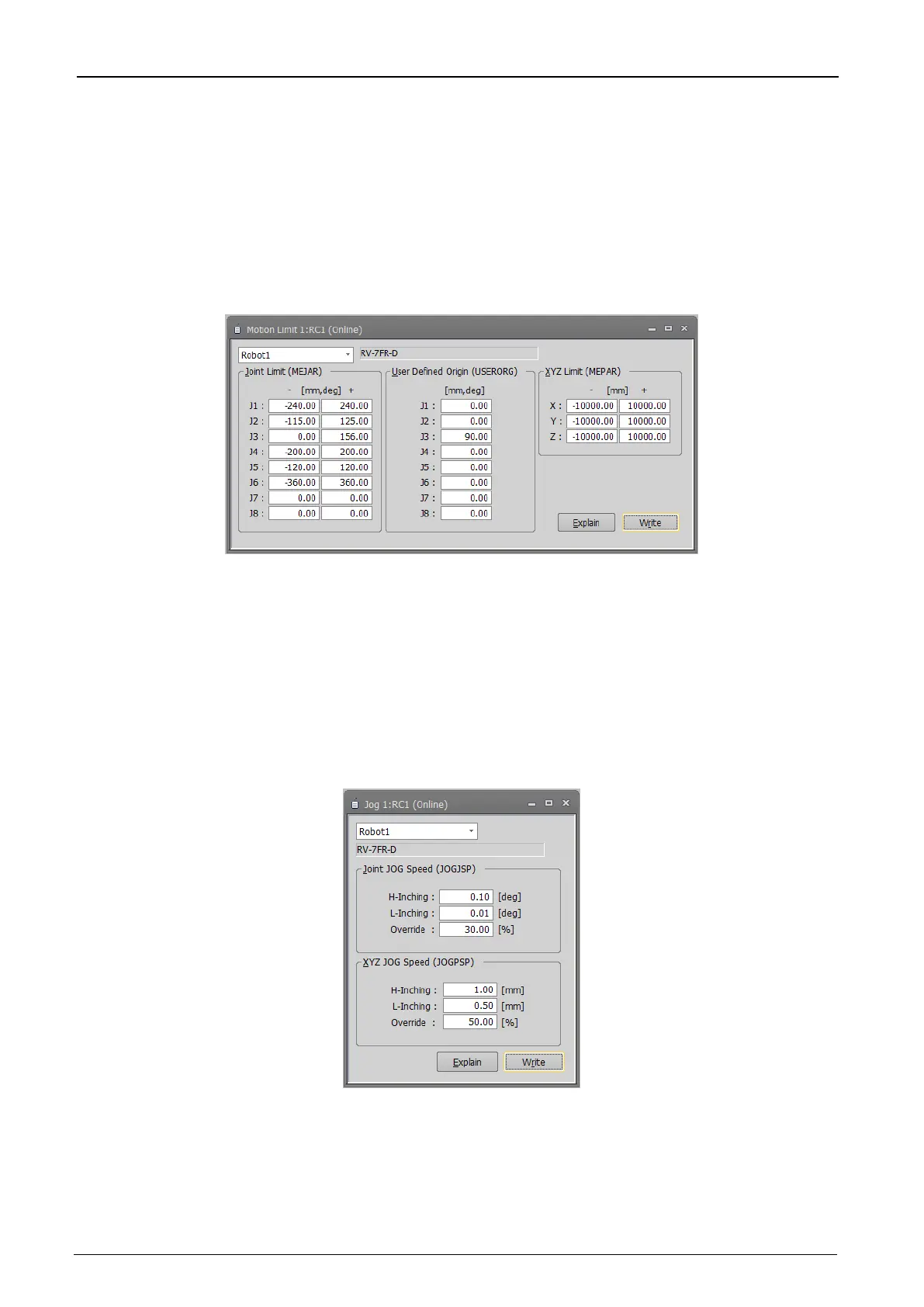

Figure 13-12 Motion limit parameter
You can reference explanations of the displayed parameters by pressing the [Explain] button.
13.3.2. Jog parameter
This sets the speeds for joint jogging and orthogonal jogging.
Set the parameters while connected to the robot controller.
Double-click [Movement parameter] -> [Jog] under the [Parameter] item to be edited from the project tree.
After you change the parameter value, you can rewrite the jog parameter in the robot controller by clicking the
[Write] button.
Figure 13-13 Jog parameter
You can reference explanations of the displayed parameters by pressing the [Explain] button.
