Mitsubishi Electric MELFA FR CR700 Series User Manual

20-489 20-489
20.1.1. About the warning at first-time startup simulation
After installing RT ToolBox3, when you first start the simulation, the following warning screen may be shown. If
the screen is displayed, confirm that checkbox corresponding to the environment is set to ON, and click [Allow
access]. You need to select the [Allow access] button to use all the functions of the simulation.

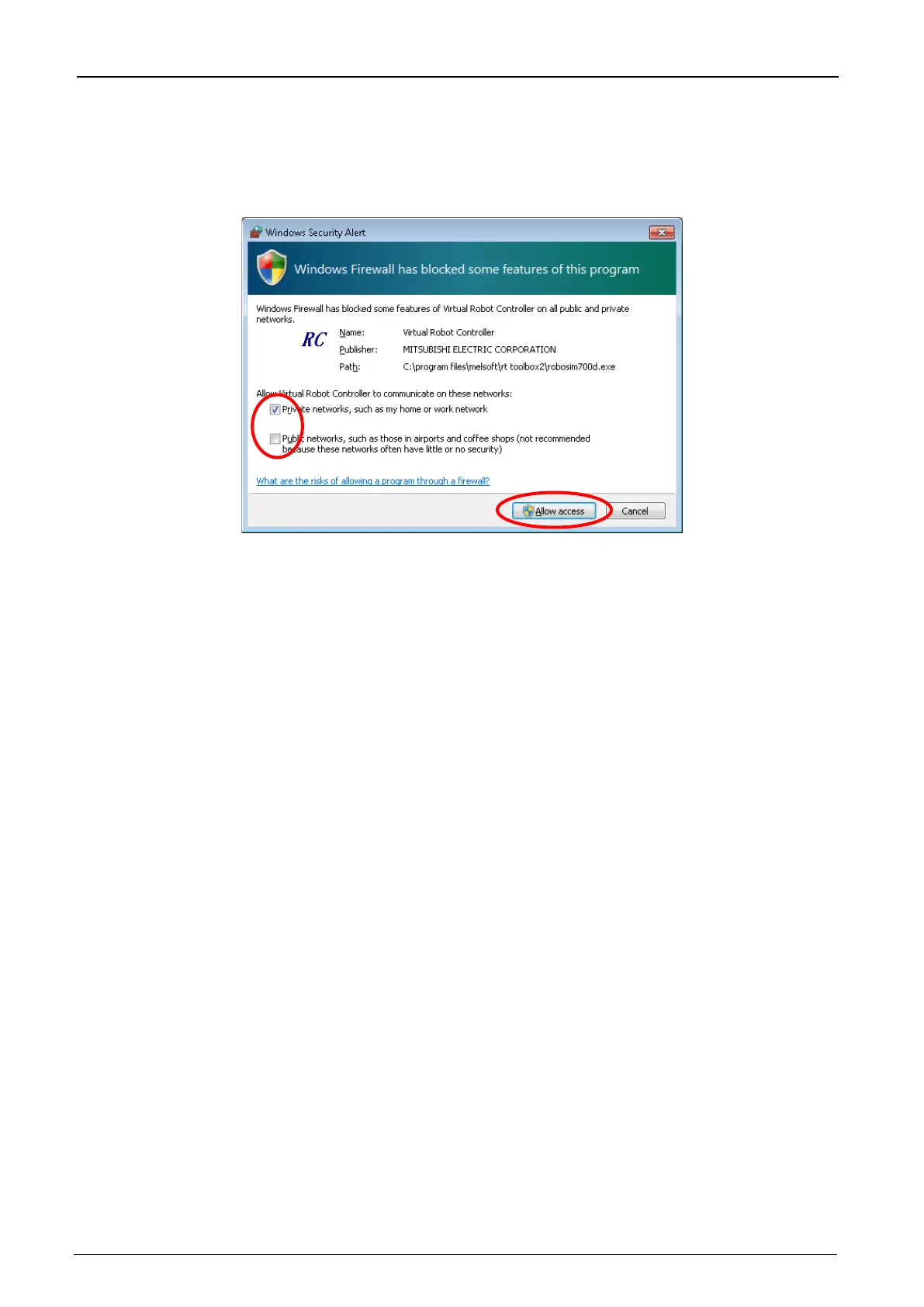

Figure 20-4 The warning screen at first-time startup simulation
20.2. Explanation of the Simulation Operation Screen
Use the [Operating panel] screen to operate simulations.
Refer to "19.1 About the Operation Panel" to understand how to operate the “Operation panel”.

Mitsubishi Electric MELFA FR CR700 Series Specifications

General

Manufacturer	Mitsubishi Electric
Category	Robotics
Payload Capacity	7 kg
Reach	908 mm
Degrees of Freedom	6
Repeatability	±0.02 mm
Weight	27 kg
Series	MELFA FR CR700
Robot Type	Collaborative
Installation	Floor, Wall, Ceiling
