Mitsubishi Electric MELFA FR CR700 Series User Manual

14-320 14-320
14.5.2. Speed
The following data concerning the rotational speed of each axis motor can be monitored.
- Speed feedback
A present motor speed is displayed in units of rpm.
- Speed MAX.
The maximum value of the speed feedback after the robot controller power supply is turned on is
displayed.
- Speed command
The motor speed command is displayed by the unit of rpm.
Click [Reset] button to reset all Servo Monitor.

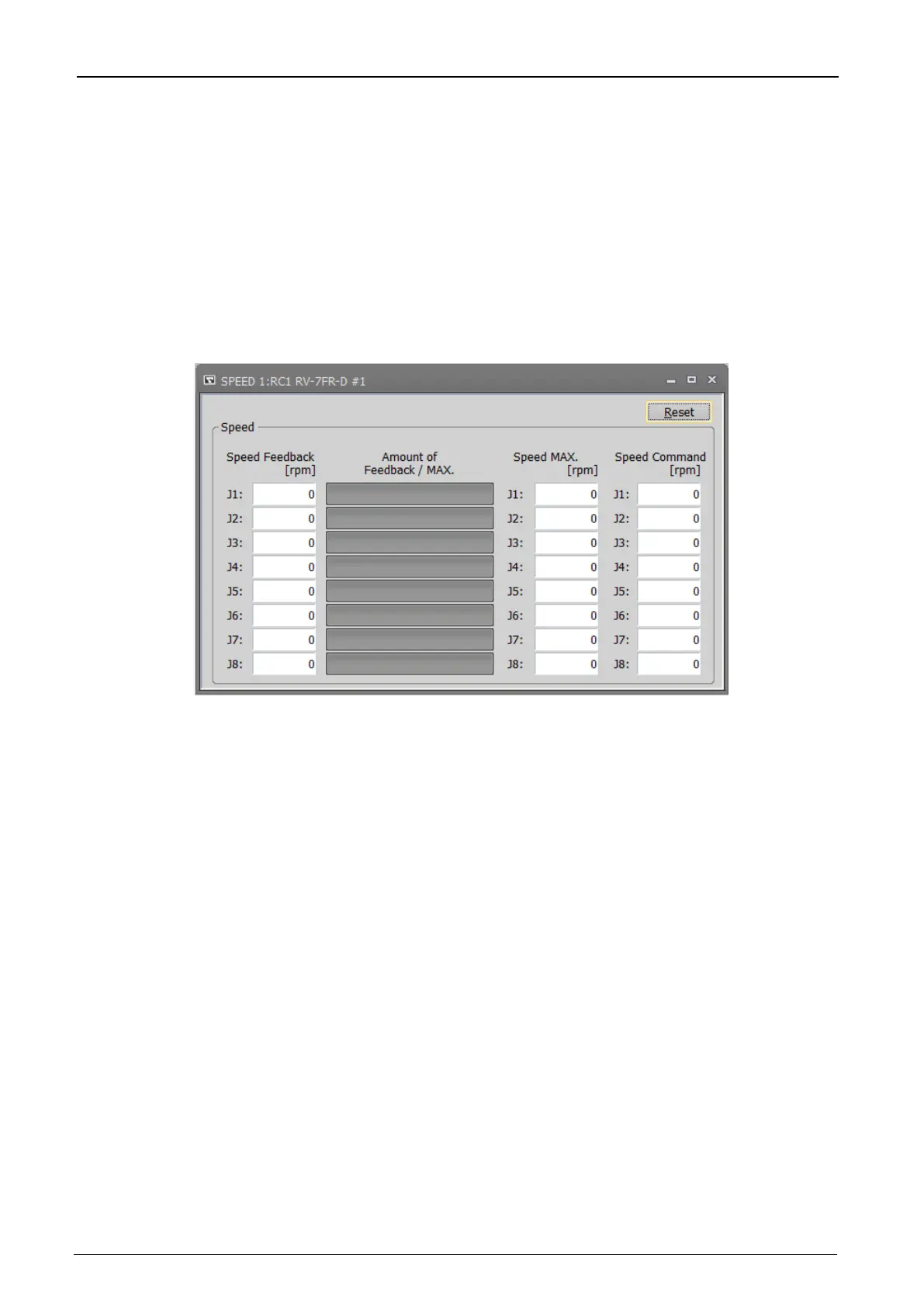

Figure 14-51 Servo monitor - Speed
