14.1. Ribbon command for monitor screen
The [Monitor] tab is displayed on the ribbon when a monitor screen is active. Start and stop of monitoring can be
changed by commands on the [Monitor] tab. When a screen is started up, monitoring is already started.

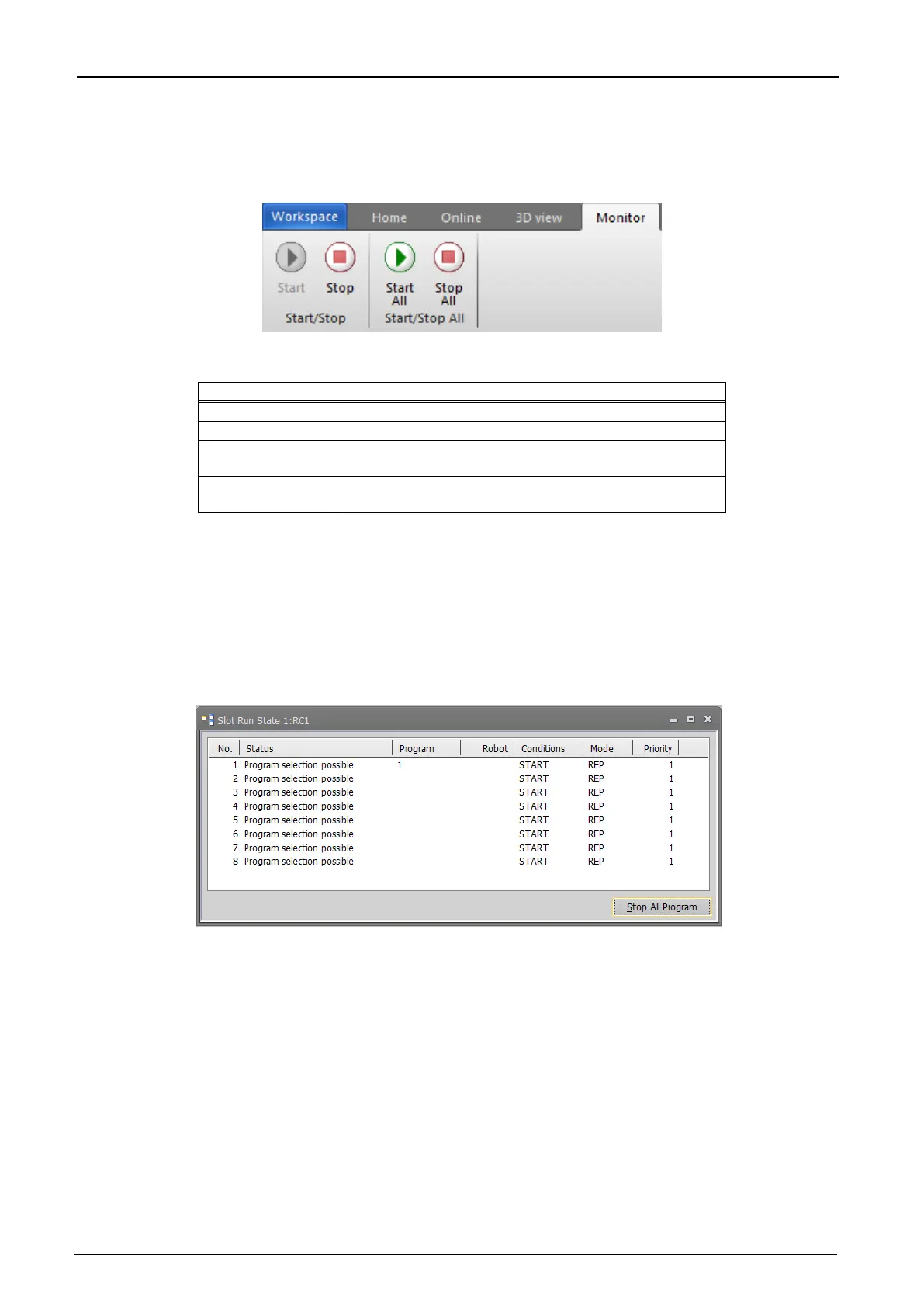

Figure 14-1
Ribbon Monitor Tab
Table 14-2 Command on the Monitor tab
Start monitoring the active monitor screen.
Stop monitoring the active monitor screen.
Monitoring of all displayed monitor screens will start.
Monitoring of all displayed monitor screens will stop.
14.2. Robot Movement Monitoring
14.2.1. Slot operation status
The state of the slots in the robot controller can be monitored.
From the project tree, double click the target project [Online] -> [Monitor] -> [Movement Monitor] -> [Slot Status].
It is possible to stop All slots for which the start condition is "ALWAYS" by clicking [Stop All Program] button.
It is necessary to stop all slots to edit the program for which the start condition is "ALWAYS".
Figure 14-2 Slot Run Status
The No. of displayed slots is determined by the parameters.
To Next Page
