Mitsubishi Electric MELFA FR CR700 Series User Manual

23-615 23-615
23.3. Signal connection edit screen
On the simulator setting screen, Click the [Add] button or [Edit] button to display the signal connection edit
screen.

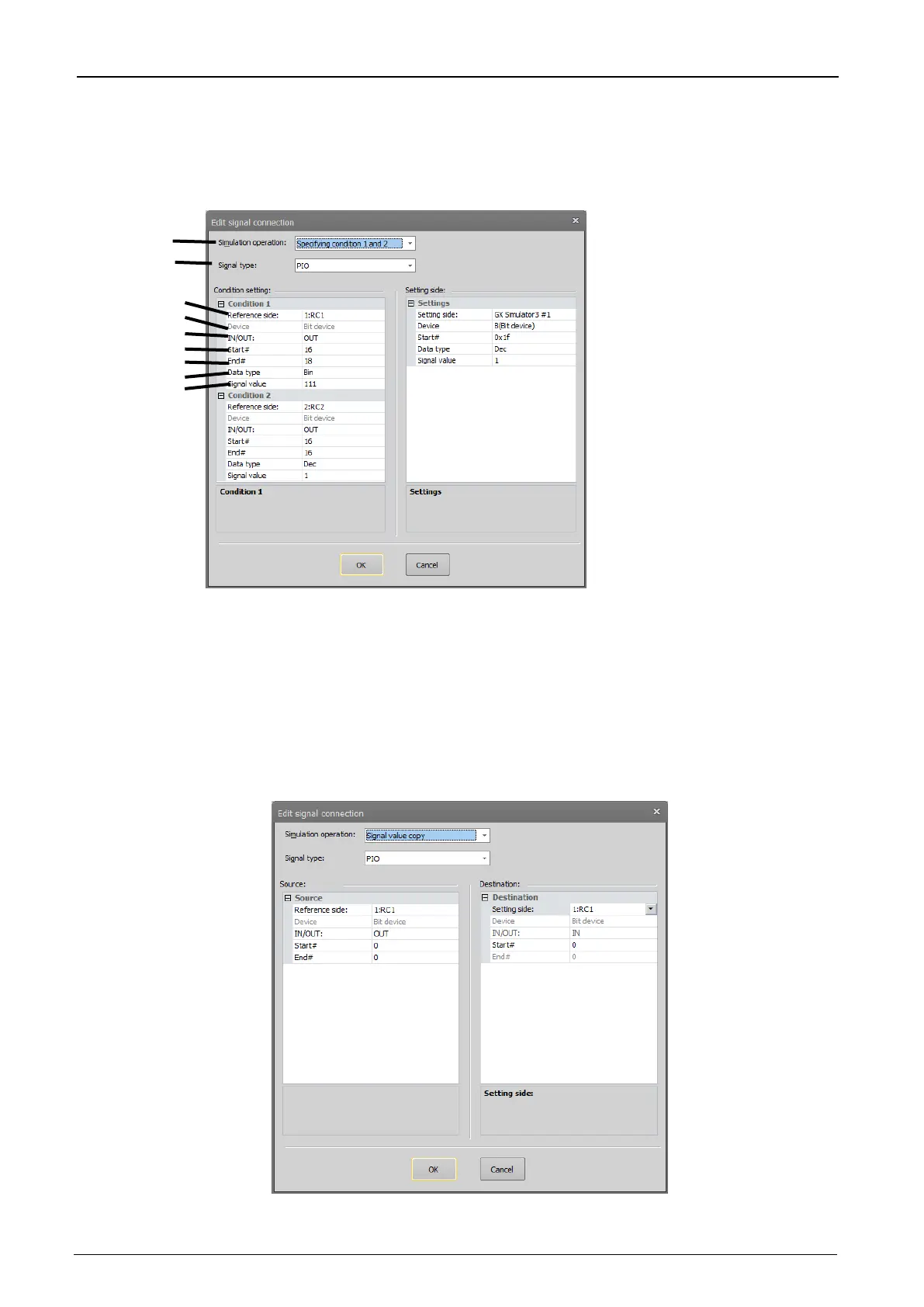

Figure 23-4 Signal connection edit screen
(1) Simulation operation
Select a desired signal simulation behavior.
Select from [Signal value copy] (default), [Only first], [Unconditional], [Specifying condition1], [Specifying
condition 1 and 2].
Each behavior is as follows.
- Signal value copy
Copies the signal value to another device.
Figure 23-5 Signal value copy
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)

Mitsubishi Electric MELFA FR CR700 Series Specifications

General

Manufacturer	Mitsubishi Electric
Category	Robotics
Payload Capacity	7 kg
Reach	908 mm
Degrees of Freedom	6
Repeatability	±0.02 mm
Weight	27 kg
Series	MELFA FR CR700
Robot Type	Collaborative
Installation	Floor, Wall, Ceiling
