21.9.1. Display contents of user mechanism
Clicking the [Select] button, or double-clicking on the user mech. for which no file is set in the layout tree, the user
mech. file selection screen will be displayed.

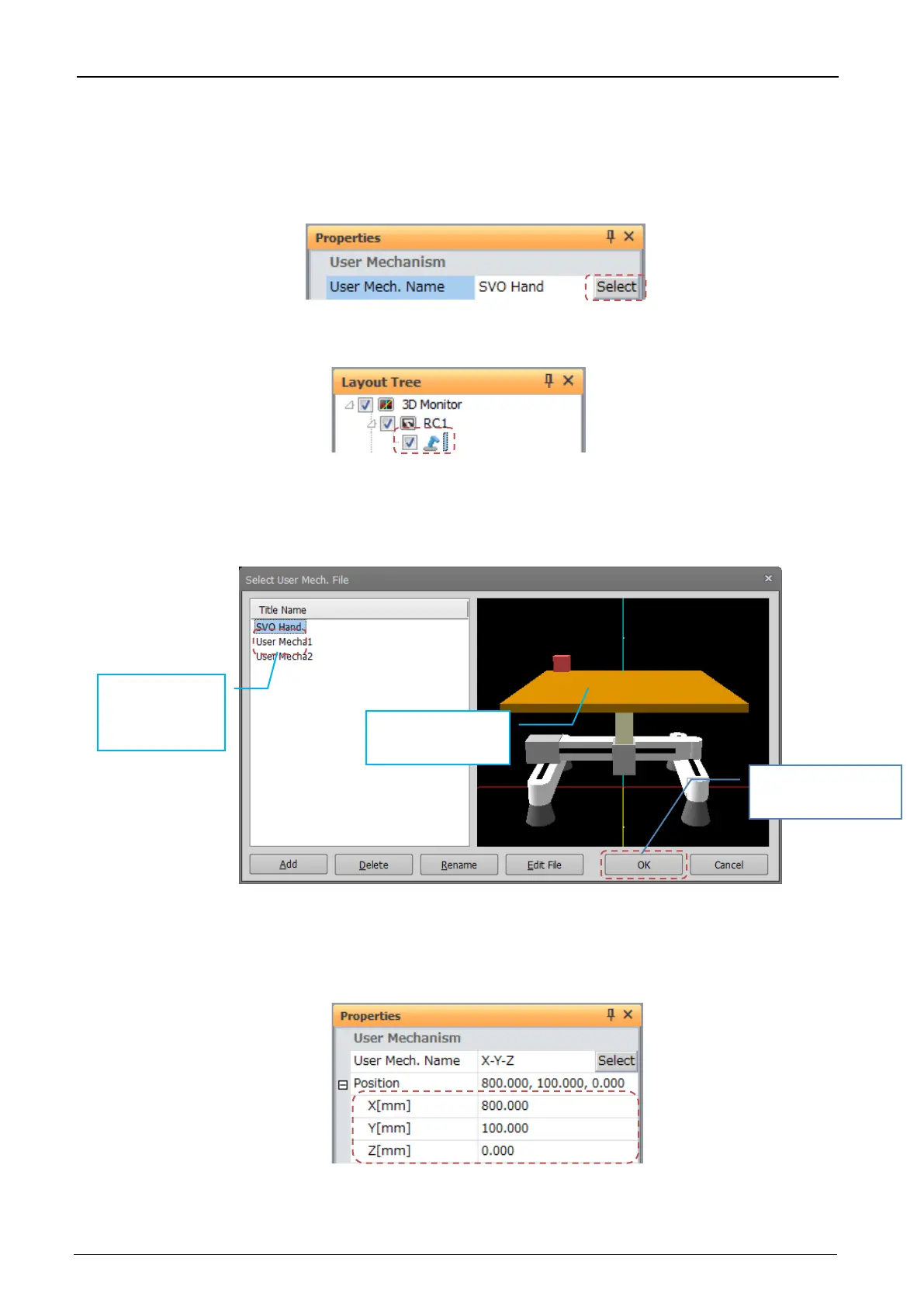

Figure 21-76 User mech. name selection button
Figure 21-77 Unconfigured user mechanism
On the [select user mech. file]screen, a list of user mech. files registered in the current workspace is displayed.
Select the user mech. file, check the contents in the 3D display, and select the [OK] button.
The selected user mech. file is set to display contents.
Figure 21-78 Select user mech. file
Position
It is displayed at the position specified by the user.
If there is a parent item, it is relative to the position and angle of the parent item. The setting unit is [mm].
Figure 21-79 User mech. position
Rotation order and Angle
Display the rotation order and rotation angle by the user mechanism.
(2)Check the file.
(1)Select the
user mech.
file.
(3)Set the display
contents.
