Mitsubishi Q Series User Manual

6 - 11 6 - 11
MELSEC-Q
6 PROGRAMMING
*1

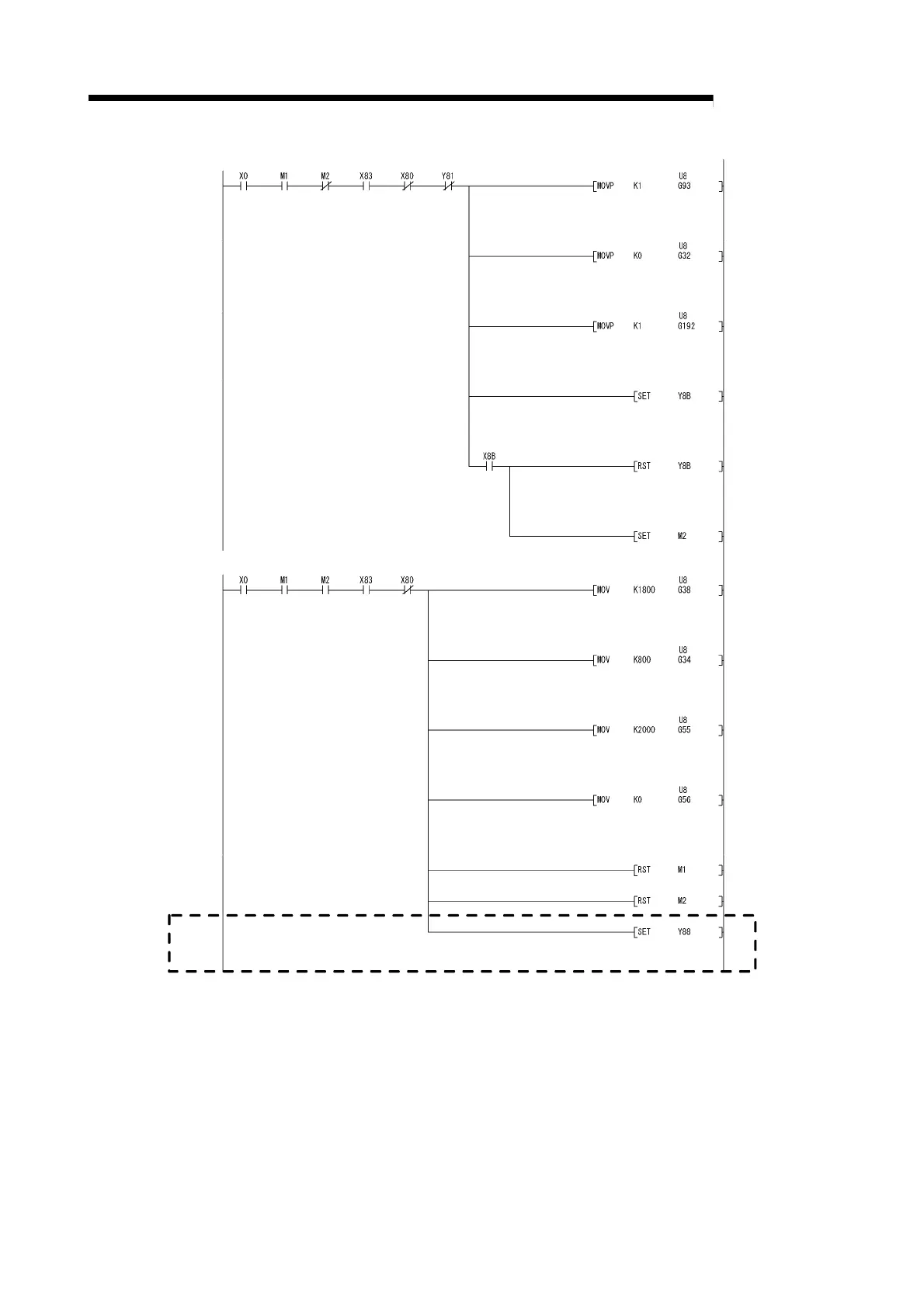

Setting value write_Input range, Alert 1 mode setting
Setting
value
write
command
Module
ready
flag
WDT
error
flag
Operation
mode
command
CH2
Unused
channel
setting
CH1
Input
range
CH1
Alert 1
mode
setting
Setting
change
command
Setting
change
completion
Setting
change
command
Setting value write_Alert set value, Set value, Upper and lower setting limiter setting
Write request to FeRAM
Setting
value
write
command
Module
ready
flag
WDT
error
flag
CH1
Alert
set
value1
CH1
Set
value (SV)
setting
CH1 Upper
setting
limiter
setting
Lower
setting
limiter
setting
FeRAM
backup
command
\
\
\
\
\
\
\
*1: Needed when registering the set input range, alert setting, set value and others to
FeRAM. Write to FeRAM is not needed when using the GX Configurator-TC's initial
setting or writing in the input range, alert setting, set value and others using
sequence program at power-on.

Mitsubishi Q Series Specifications

General

I/O Points	Up to 4096 points
Communication	Ethernet, RS-232, RS-485
I/O Modules	Digital, Analog, Specialized
Programming Language	Function Block Diagram, Structured Text
Power Supply	24V DC, 100-240V AC
Operating Temperature	0°C to 55°C
Shock Resistance	147 m/s2 acceleration, 3 times in each of X, Y, and Z directions
Program Capacity	Up to 252K steps
