Mitsubishi Q Series User Manual

6 - 12 6 - 12
MELSEC-Q
6 PROGRAMMING
*1

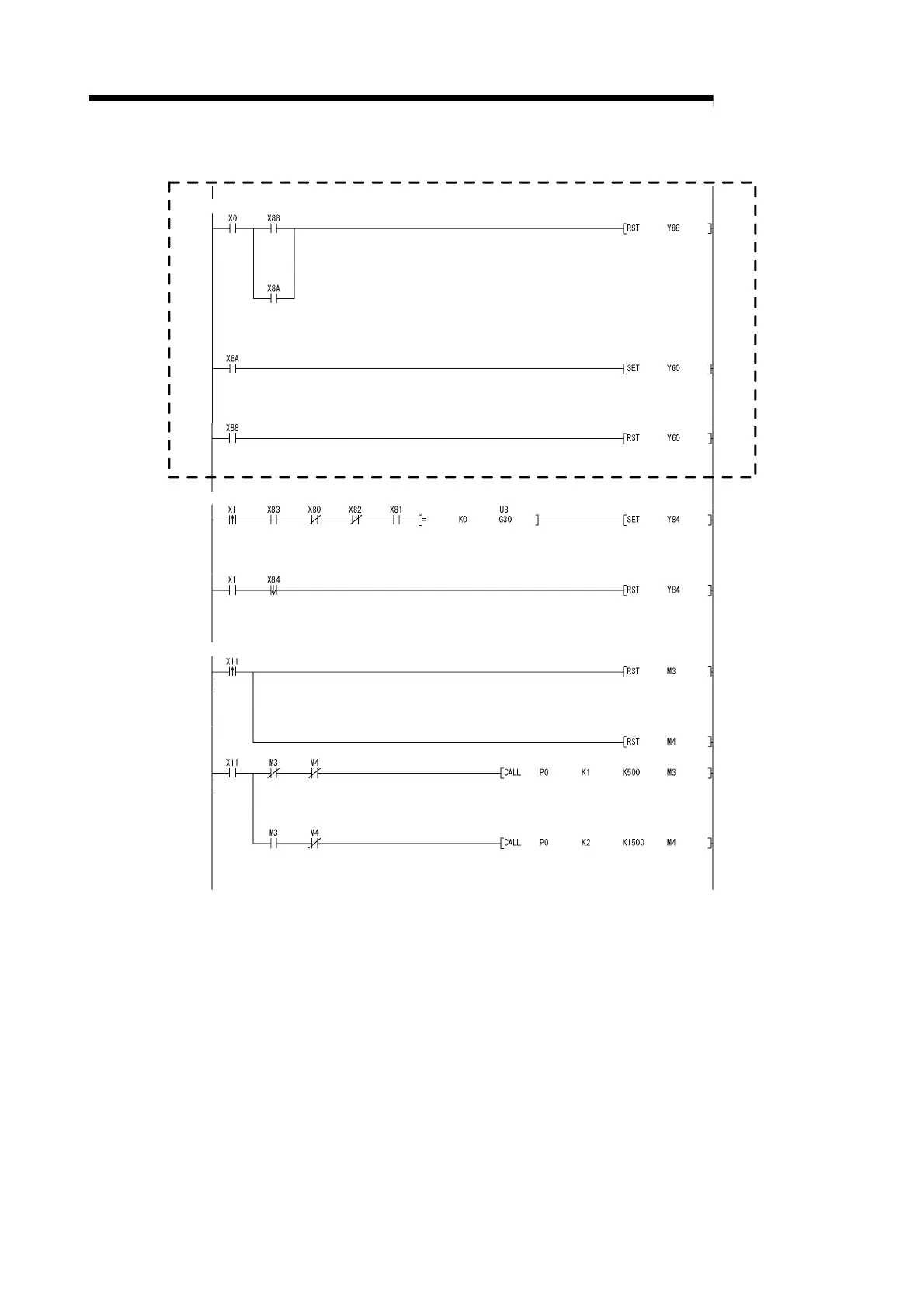

Set value write_Cancel write request to FeRAM
Setting
value
write
command
FeRAM
write
completion
FeRAM
write failure
FeRAM
backup
command
FeRAM
write failure
FeRAM
write
failure
output
FeRAM write
completion
FeRAM
write failure
output
Normal control_Auto tuning execution
AT
execution
command
Module
ready
flag
WDT
error
flag
Error
flag
Operation
mode status
Control
mode
CH1 AT
command
AT
execution
command
CH1
AT
status
CH1 AT
command
Program control_Auto tuning execution request
Program
control_AT
execution
command
Program
control_AT
execution
command
\
*1: Needed when registering the set input range, alert setting, set value and others to
FeRAM. Write to FeRAM is not needed when using the GX Configurator-TC's initial
setting or writing in the input range, alert setting, set value and others using
sequence program at power-on.

Mitsubishi Q Series Specifications

General

I/O Points	Up to 4096 points
Communication	Ethernet, RS-232, RS-485
I/O Modules	Digital, Analog, Specialized
Programming Language	Function Block Diagram, Structured Text
Power Supply	24V DC, 100-240V AC
Operating Temperature	0°C to 55°C
Shock Resistance	147 m/s2 acceleration, 3 times in each of X, Y, and Z directions
Program Capacity	Up to 252K steps
