Mitsubishi Q Series User Manual

6 - 16 6 - 16
MELSEC-Q

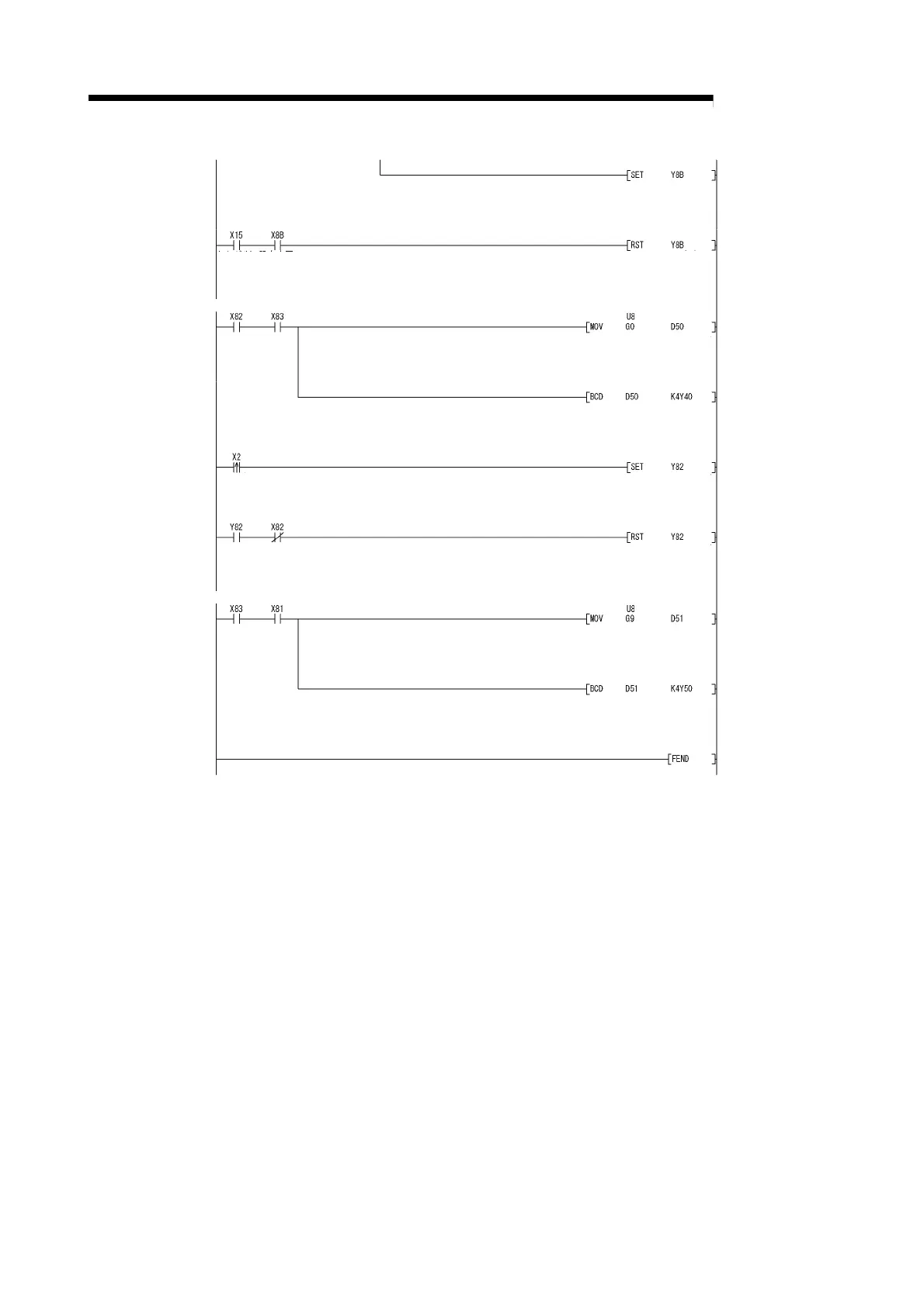

6 PROGRAMMING
Setting change
command
Cascade
control_
Setting
command
Setting change
completion
Setting change
command
Error code read and output, and Error reset request
Error
flag
Module
ready
flag
Error
code
Error code
storage
register
Error
code
storage
register
Error
code
output
Error code
reset command
Error reset
command
Error reset
command
Error
reset
command
Error flag
Measured value read and output
Module
ready
flag
Operation
mode
status
Measured
value
storage
register
Measured
value
storage
register
Measured
value utput
\
\

Mitsubishi Q Series Specifications

General

I/O Points	Up to 4096 points
Communication	Ethernet, RS-232, RS-485
I/O Modules	Digital, Analog, Specialized
Programming Language	Function Block Diagram, Structured Text
Power Supply	24V DC, 100-240V AC
Operating Temperature	0°C to 55°C
Shock Resistance	147 m/s2 acceleration, 3 times in each of X, Y, and Z directions
Program Capacity	Up to 252K steps
