6 - 17 6 - 17
MELSEC-Q
6 PROGRAMMING

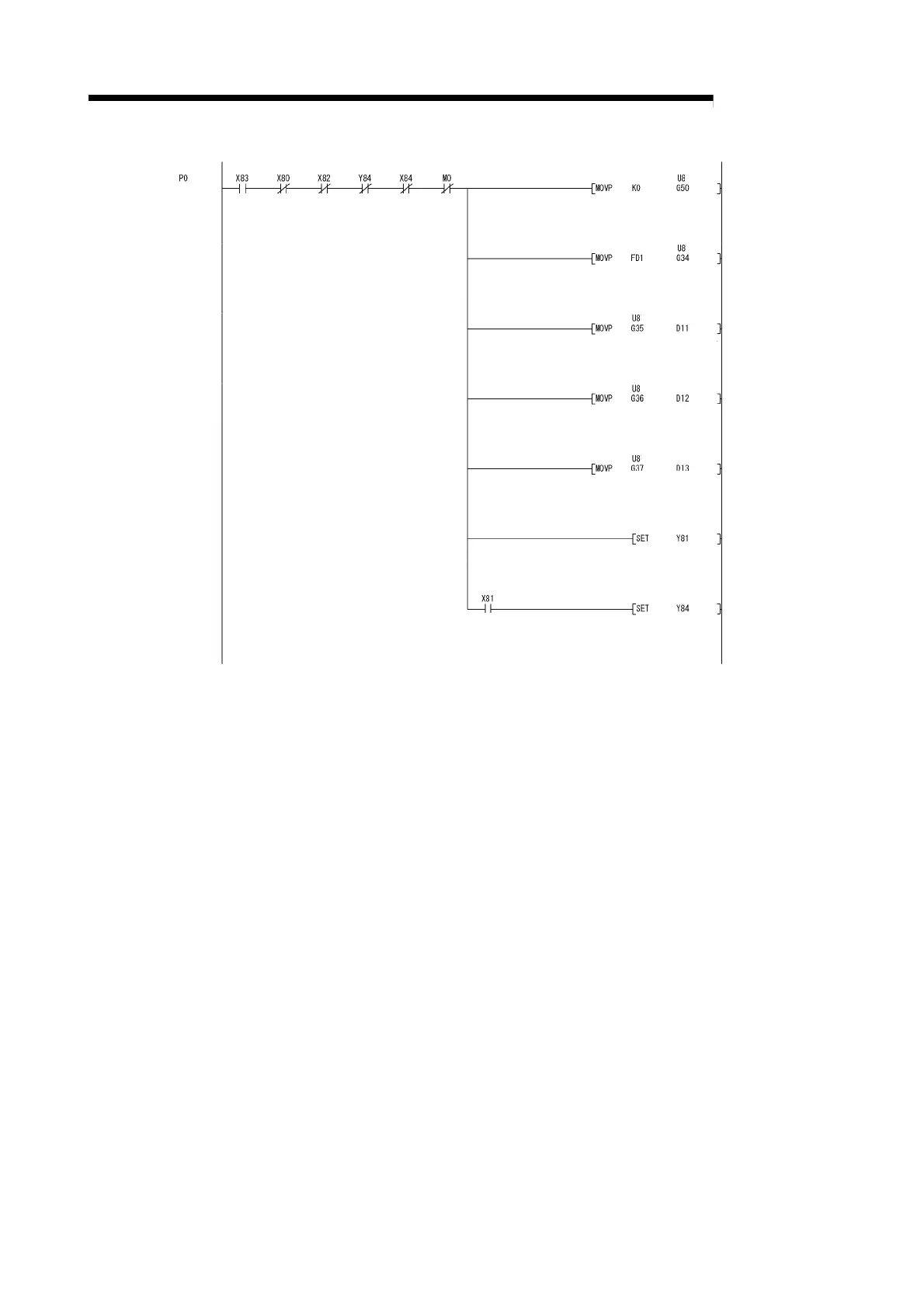

[AT for program control (Zone PID data setting)]
Module
ready
flag
WDT
error
flag
Error
flag
CH1 AT
command
CH1 AT
status
CH1 Control
mode
CH1 Set
value (SV)
setting
CH1
Proportional
band
setting
Proportional
band_Saving
register
CH1
Integral time
Integral
time_Saving
register
CH1
Derivative
time
Derivative
time_Saving
register
Operation
mode
command
Operation
mode status
CH1 AT
command
\
\
\
\
\
