Mitsubishi Q Series User Manual

6 - 41 6 - 41
MELSEC-Q
6 PROGRAMMING

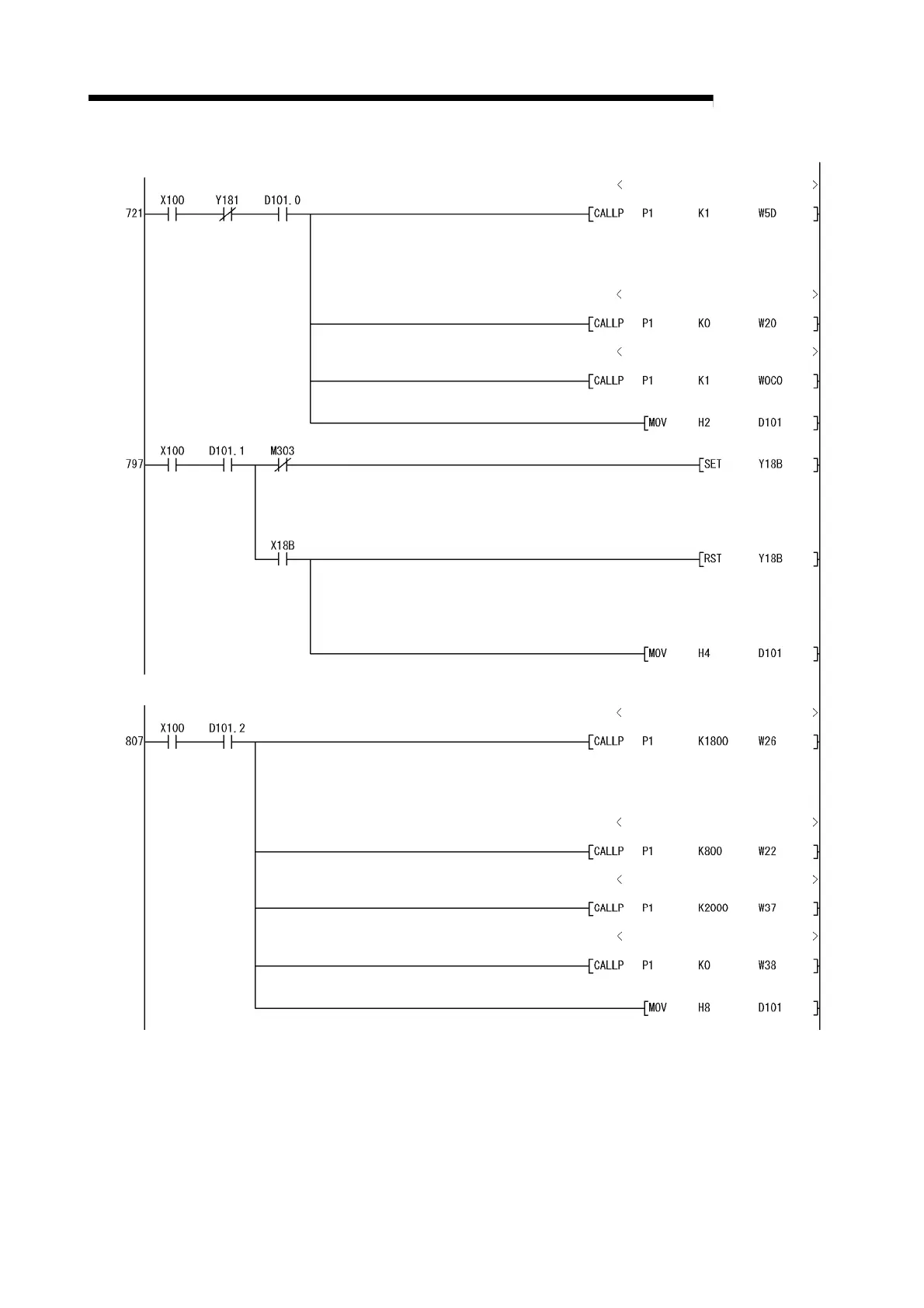

Setting value write_Input range, Alert 1 mode setting
Setting
value
write
command
Operation
mode
command
CH2 Unused channel setting
CH1 Input range
CH1 Alert 1 mode setting
Setting
value
write
command
Remote I/O buffer
memory write
command
Setting
change
command
Setting change
completion
Setting
change
command
Setting value write_Alert set value, Set value,
Upper and lower setting limiter setting
Write
request
to FeRAM
Setting value write command
CH1 Alert set value1
CH1 Set value (SV) setting
CH1 Upper setting limiter setting

Mitsubishi Q Series Specifications

General

I/O Points	Up to 4096 points
Communication	Ethernet, RS-232, RS-485
I/O Modules	Digital, Analog, Specialized
Programming Language	Function Block Diagram, Structured Text
Power Supply	24V DC, 100-240V AC
Operating Temperature	0°C to 55°C
Shock Resistance	147 m/s2 acceleration, 3 times in each of X, Y, and Z directions
Program Capacity	Up to 252K steps
