Mitsubishi Q Series User Manual

6 - 43 6 - 43
MELSEC-Q
6 PROGRAMMING

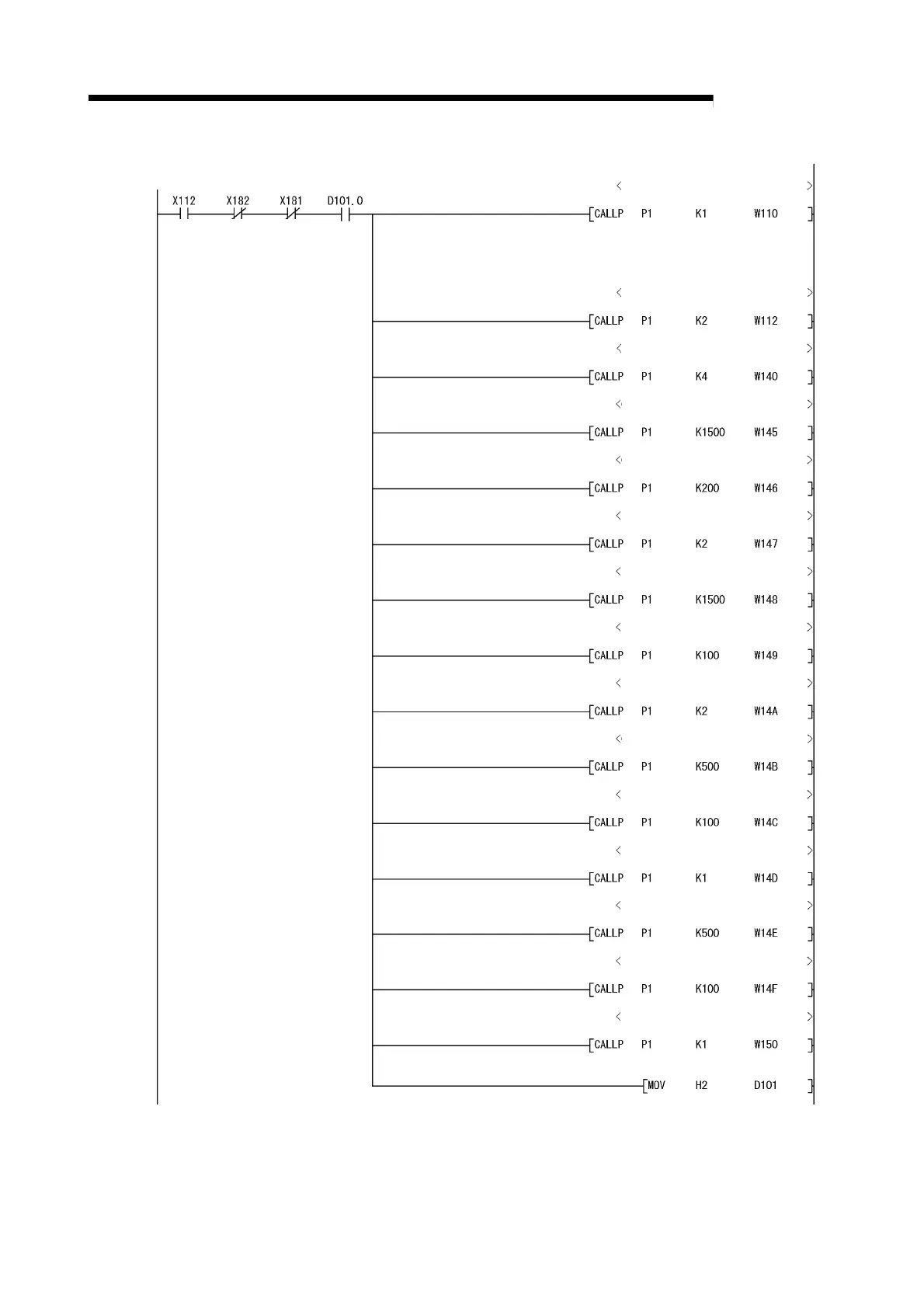

Program control_Pattern data setting
Program
operation_Pattern
data setting
command
Error flag
Operation
mode status
CH1 Execution pattern setting
CH1 Time scale
CH1 P1S1 Final segment
CH1 P1S1 Set value
CH1 P1S1 Time scale
CH1 P1S1 PID data
CH1 P1S2 Set value
CH1 P1S2 Time scale
CH1 P1S2 PID data
CH1 P1S3 Set value
CH1 P1S3 Time scale
CH1 P1S3 PID data
CH1 P1S4 Set value
CH1 P1S4 Time scale
CH1 P1S4 PID data

Mitsubishi Q Series Specifications

General

I/O Points	Up to 4096 points
Communication	Ethernet, RS-232, RS-485
I/O Modules	Digital, Analog, Specialized
Programming Language	Function Block Diagram, Structured Text
Power Supply	24V DC, 100-240V AC
Operating Temperature	0°C to 55°C
Shock Resistance	147 m/s2 acceleration, 3 times in each of X, Y, and Z directions
Program Capacity	Up to 252K steps
