2
1 Outline
No. 99MAM029A
1.2

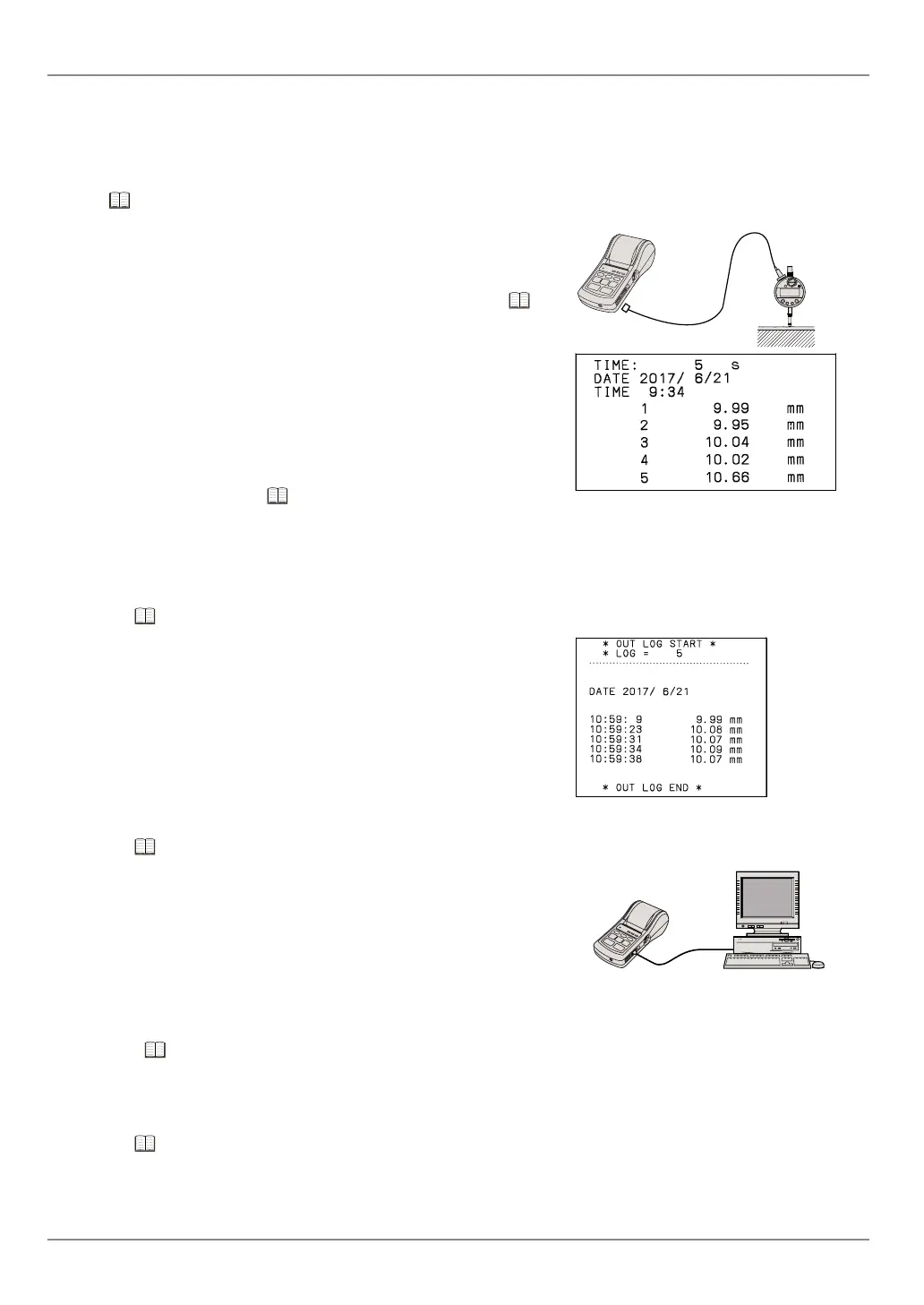

Functional Outline
The product is a data processing unit used to print out the measurement data by con-
necting with our measuring instrument with Digimatic output.
"2 Basic Operations" on page 7
The product supports the inputs from a Digimatic out-
put and measuring instrument with Digimatic 2 output.
This also can be used to automatically fetch the data
from the measuring instrument at given intervals. (
"3.6.1 Timer Input of the Measurement Data" on page
43)
Tips
This also supports an input of RS-232C output data by
connecting an optional dedicated RS-232C output cable
to the KA Counter.
For further details on the RS-232C input operation of the
KA Counter, refer to "3.5 Inputting and Printing of the
KA Counter Data with RS-232C" on page 39.
The product has additional functions below.
y Data logging and USB output to PC
"3.4 Logging of Measurement Data and Printing/Output of Log Data" on page 35
Up to a maximum of 1,000 entries of measurement
data can be logged (stored) in the internal memory
of the product. The log data stored can be printed
or output to PC via USB collectively.
y Data output
"4 Output" on page 49
Both the output of the measurement data to PC
(USB, RS-232C: TTL level) and the output of the tol-
erance judgment result (+NG, GO, -NG) are possible.
Tips
Prior tolerance setting is required for the tolerance judgment
result output.
For further details on the tolerance setting operation, refer to
"2.3.1 Tolerance Settings" on page 19.
y LED display and printing of the measurement data tolerance judgment result
(A)
"2.3.2 Measurement and Display/Printing the Tolerance Judgment Results" on page 22
This is the judgment function on whether the measurement data is within the setting
tolerance or not and the judgment results can be indicated with the Tolerance Judg-
ment LED or printed on the printer paper.
To Next Page
